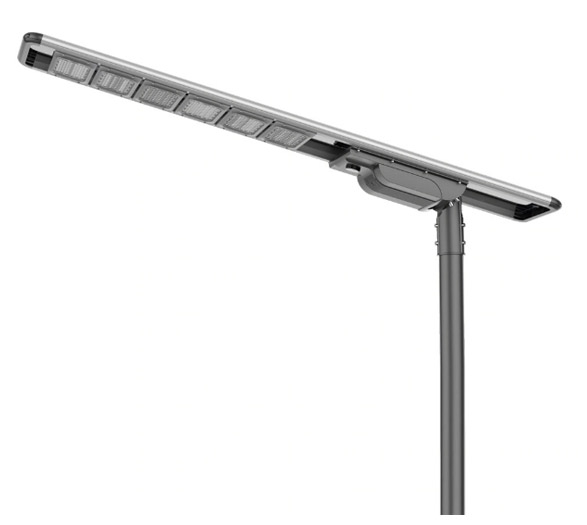

Monocrystalline silicon panels deliver 20-25% photoelectric conversion efficiency, serving as the standard for high-end commercial solar street lighting. While polycrystalline variants offer lower costs, their efficiency typically peaks at 15-17%. For solar-powered street lights, monocrystalline remains superior in space-constrained installations or regions with limited winter sunlight. These modules convert solar energy into stored power to charge lithium batteries daily. High-grade monocrystalline panels boast a 25-year lifespan with a minimal 0.5% annual degradation. JY Light utilizes tempered glass surfaces engineered to withstand hail, debris, and long-term UV exposure. |
LiFePO4 and ternary lithium represent the primary energy storage solutions for solar LED street lights. Lithium Iron Phosphate (LiFePO4) batteries utilize iron-based cathodes, eliminating expensive metals like cobalt to ensure cost-efficiency for municipal infrastructure. They provide robust charge-discharge performance, sustaining 2,000–5,000 cycles across an 8–10 year operational life. Given their thermal runaway threshold of 250–270°C, LiFePO4 batteries are the safest choice for outdoor installations. They resist combustion during physical impact, puncture, or short circuits, as the chemistry prevents oxygen release. Conversely, ternary lithium batteries provide superior energy density for compact designs, though they typically offer a shorter lifecycle of 800–1,000 cycles (3–5 years). Opt for ternary configurations when installation footprint takes precedence over long-term durability. |
|
|

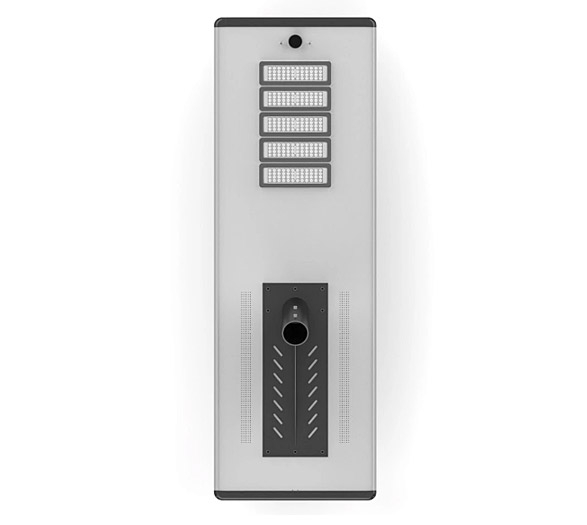

JY Light LED modules use chips from Bridgelux, Osram, and Philips, delivering 130-200 lumens per watt depending on the specific configuration. A 60W solar LED street light producing 10,800 lumens can replace 150-250W traditional HID fixtures while providing equivalent ground-level illumination. The directional nature of LED light means more lumens reach the road surface instead of scattering into the sky. Key specifications: Microwave sensor optional for adaptive dimming Flicker-free operation (high wattage models) Integral 4-6KV surge protection 50,000+ hour lifespan (L70 rating) with 5-year warranty |
The controller manages charging and discharging, prevents battery damage, and operates the LED fixture automatically at nighttime. PIR motion sensing: When pedestrians or vehicles approach, lights switch to full brightness. When the zone clears, lights dim to 30% power, extending battery life by 40-60% on quiet nights. Intelligent charging: The controller recognizes daytime versus cloudy conditions and adjusts charging accordingly. At dusk, it automatically activates the lights without manual intervention. MPPT technology: Maximum Power Point Tracking extracts 15-30% more energy from the solar panel compared to basic controllers, improving performance during partial shade or overcast weather. This functionality ensures reliable illumination even in areas with variable sunlight. |
|

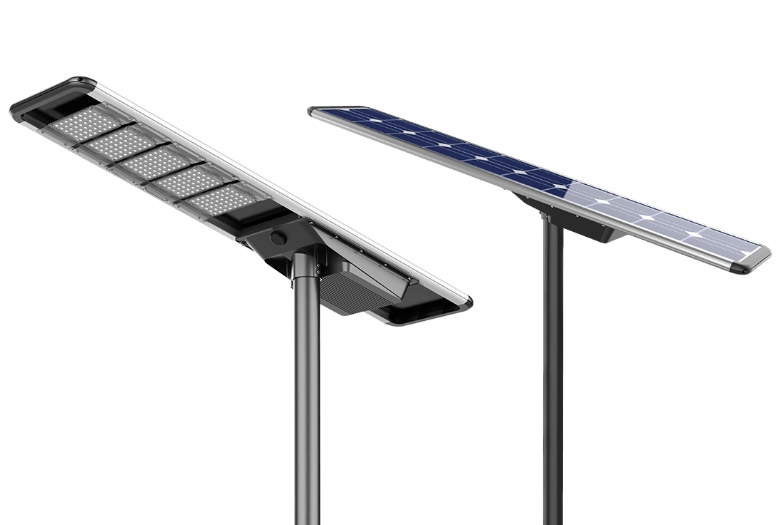

Integrated solar street lights combine the panel, battery, LED module, and controller into a single unit. This configuration simplifies installation to 30-60 minutes per pole with no electrician required and no trenching for power cables. All-in-one systems suit parking lots, rural roads, residential areas, public parks, and municipal projects where ease of installation and low maintenance matter most. get all in one solar street light quotation |
All in Two Solar Street Light a split-type solar LED street light with separate panel and fixture for optimal positioning. One-step plug-in wiring makes installation simple, even in complex configurations. Features: Adjustable angle LED modules suitable for different road widths 140° wide lighting angle covers broader roadway areas Large battery box with LiFePO4 cells, lifespan up to 8-10 years Adjustable brightness via remote control Ideal for rural roads, parking lots, and areas where panel angle needs independent adjustment | Integrated Solar Street Lights 25-degree adjustable mounting, allowing installers to adjust the angle based on road orientation and ambient light levels. Features: Bridgelux, Osram, or Philips LED chips (130-200 lm/W) Night sensor plus PIR motion sensing for adaptive dimming Supports 4-5 nights of operation after full charging Optional HD WiFi camera with 90-degree viewing angle No additional installation required for camera integration Suitable for parking lots, public parks, residential areas, and locations requiring security monitoring. | |
offers cost-effective solar street lighting without sacrificing performance. Built for wholesale and large-scale municipal projects. Features: Snap-type battery box for convenient maintenance 90-degree adjustable lamp arm fits two pole configurations Die-cast aluminum body with excellent heat dissipation High-strength construction resists wind and weather Economical pricing for budget-conscious lighting projects Performs well in rural areas, highway rest stops, and industrial zones where reliability matters more than premium features. |
provides integrated solar post top LED lights . Die-cast aluminum body with cable-free installation takes minutes per pole. Features: Microwave sensor ensures reliable public lighting Full brightness when motion detected, then returns to energy-saving mode No trench required, no power grid connection needed Sustainable renewable energy with zero emissions during operation Applications: Sidewalk lighting, public squares, parks, residential communities, and industrial park walkways where pedestrian safety and aesthetic appeal both matter. |
Looking for a durable lighting solution for your next project ?
Request a technical datasheet and a competitive quote,get latest street light price
Contact the Jieyao team at [ Phone: +86 13815843784 /WhatsApp: +86 13815843784 ]
or visit our official site:www.jieyaolighting.com
Technical & Purchasing FAQ: All-in-One Solar Street Lights
1. What is the definition of an "All-in-One" solar street light? An All-in-One Solar Street Light refers to an integrated system where the photovoltaic panel, lithium battery, and LED source are housed within a single aluminum body. This design eliminates the need for external wiring and complex assembly, offering a streamlined "plug-and-play" solution for modern infrastructure.
2. How does the system ensure performance during consecutive rainy days? Our All-in-One Solar Power units are equipped with intelligent energy management. The built-in MPPT controller monitors battery levels in real-time and adjusts the light output accordingly. This "autonomy" allows the lamp to remain operational for 3 to 5 cloudy or rainy days without a full recharge.
3. What are the primary cost advantages of Integrated Solar Lighting? The most significant saving is in installation and labor. Since there is no need for trenching, cabling, or specialized electrical crews, an Integrated Solar Light can be deployed in minutes. This typically reduces total project overhead by 40% to 60% compared to grid-tied systems.
4. What is the expected lifespan of the integrated battery? We utilize industrial-grade LiFePO4 (Lithium Iron Phosphate) batteries. In a standard Integrated Solar Lighting environment, these cells are rated for over 2,000 cycles, translating to a service life of 5 to 8 years. The internal compartment is accessible, allowing for straightforward battery replacement if required in the future.
5. How does the Motion Sensor optimize energy consumption? The All-in-One LED Solar Light uses a microwave or PIR sensor to balance safety with efficiency. The light operates at a dimmed "eco-mode" during inactivity and switches to 100% brightness only when movement is detected. This prevents unnecessary battery drain while ensuring full illumination when pedestrians or vehicles are present.
6. What maintenance is required for Solar Powered Street Lamps? These systems are virtually maintenance-free. The tilted orientation of the solar panel allows wind and rain to naturally clear away debris. As a professional Solar Street Light Manufacturer, we recommend a simple visual inspection or manual cleaning every 6–12 months only in high-dust or desert environments. |
