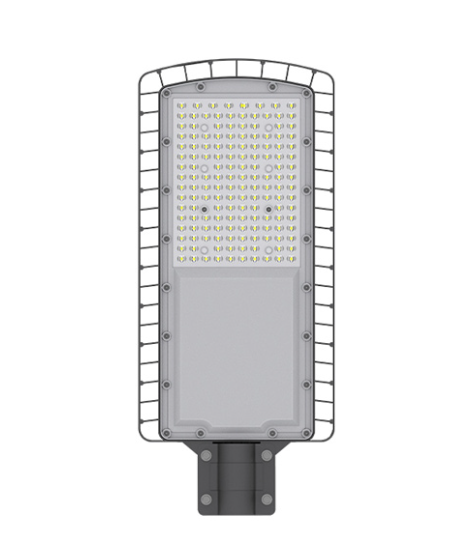

Professional Grade IP66 LED Street Light
The Jieyao High Brightness LED Street Light is a versatile, high-performance illumination system designed for both large-scale infrastructure and private property security. Built to replace outdated HPS and metal halide lamps, this fixture delivers an industry-leading 150-170 lm/W luminous efficacy, ensuring maximum visibility with minimum energy overhead.Contact us for customized service.
We’ve engineered this LED Roadway Light to survive the elements and eliminate frequent maintenance cycles:
Precision Die-Cast Housing: Crafted from heavy-duty aluminum with an anti-corrosive powder coating, ensuring structural integrity in coastal and high-humidity regions.
Advanced Surge Protection: Equipped with a 10kV/20kV surge protector to safeguard the internal driver against lightning strikes and grid instability—a must-have for reliable Outdoor Infrastructure.
Smart Control Ready: Features a standard NEMA socket for Dusk-to-Dawn Photocell sensors, allowing the light to automatically adjust based on ambient daylight.
Optimized Thermal Management: The integrated aerodynamic cooling fins prevent heat buildup, maintaining the L70 lifespan of over 50,000 hours.
Dark Sky Compliant: Our precision optics direct light exactly where it’s needed, reducing glare and upward light spill to protect the environment and neighboring properties.

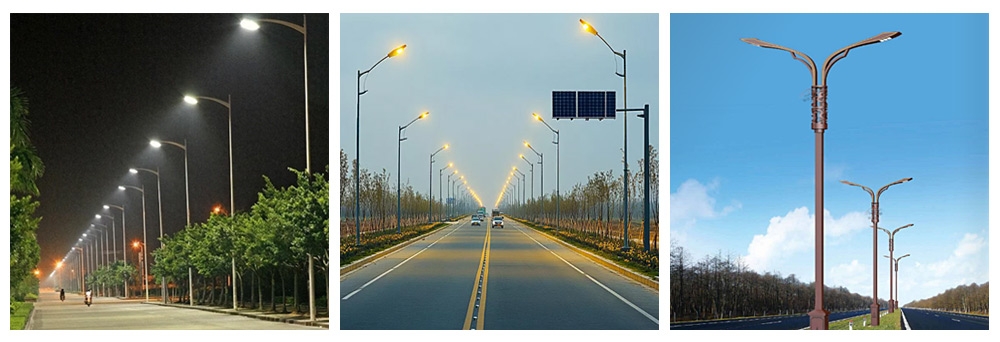

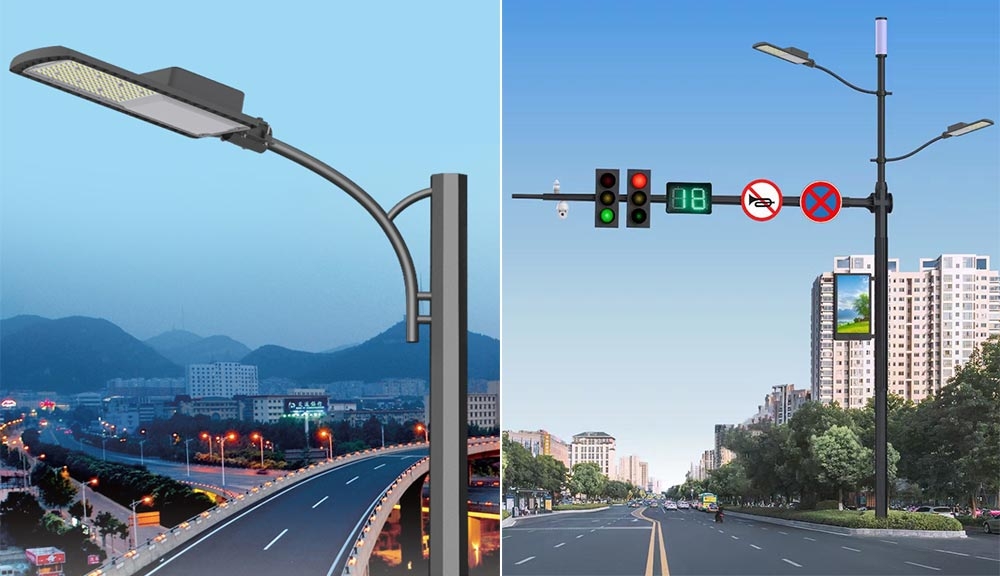

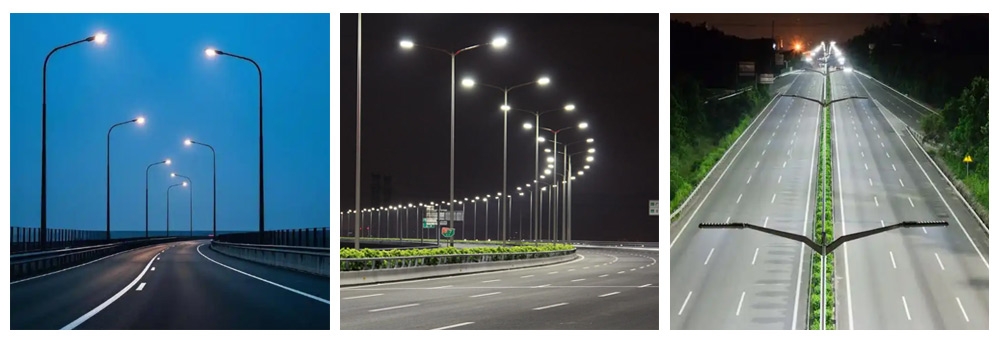

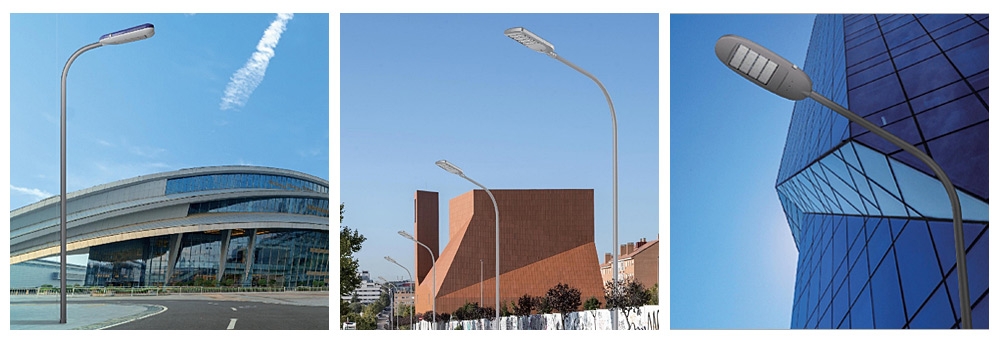

Outdoor road lighting
Easily integrated into the environment space, light and bright.

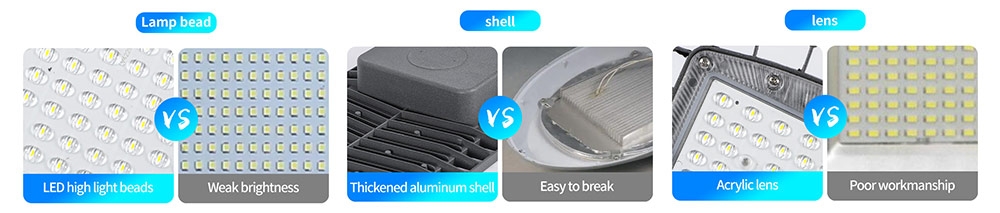

HIGHER QUALITYTHAN PEERS

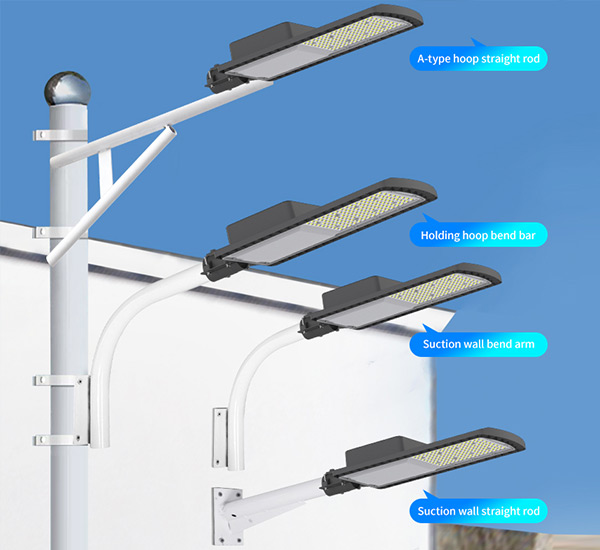

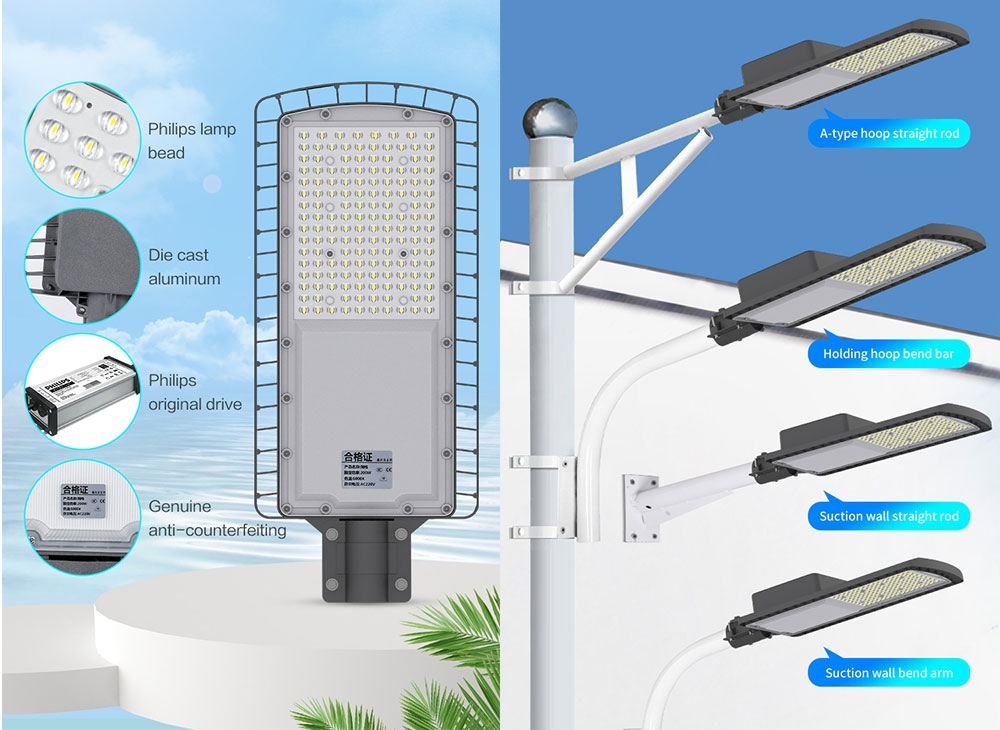

A VARIETY OF LAMP INSTALLATION

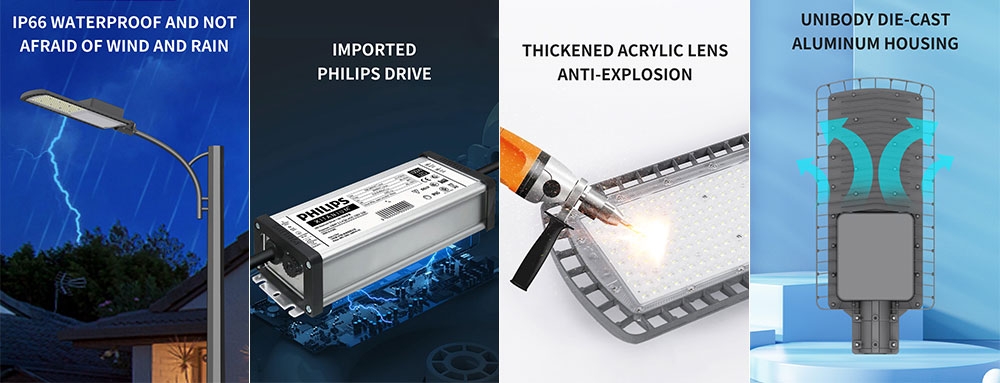

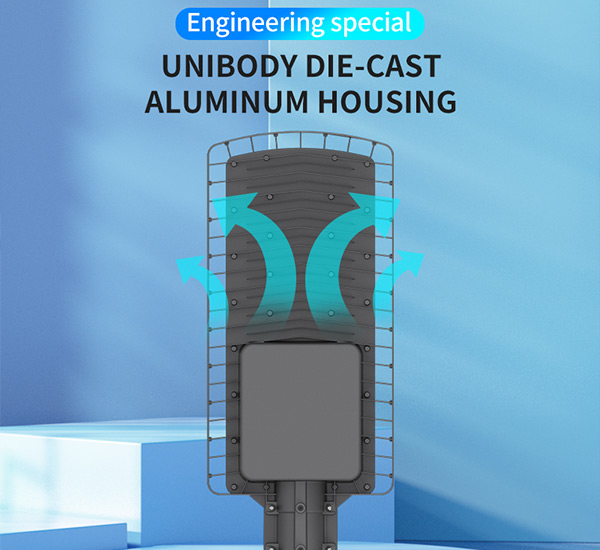

Engineering special

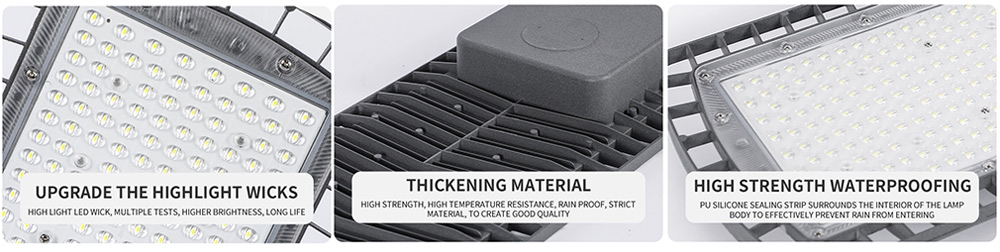

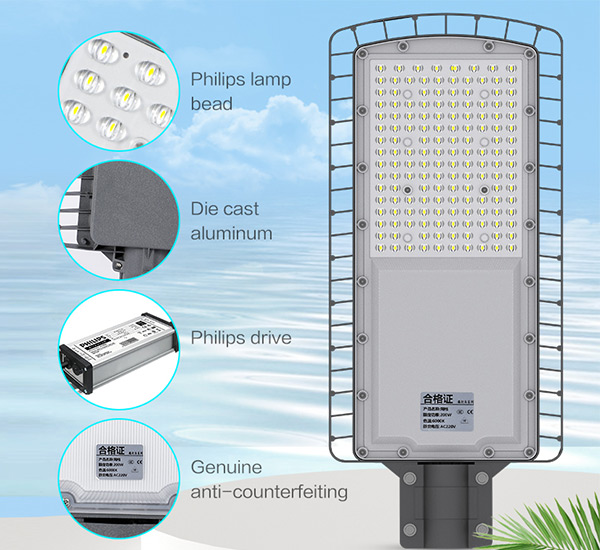

ZOOM DISPLAY WITH FINE WORKMANSHIP
Product Specifications
| Feature | Details |
| Product Name | Wangge |
| Light Source | LUMILEDS 3030SMD |
| Waterproof Class | IP66 |
| Color Rendering (CRI) | > 70 |
| Light Beam Angle | 70° * 140° |
| Input Voltage | 90-260V |
| Color Temperature | 3000K / 4000K / 6000K |
| Working Environment | -40°C ~ 90°C |
| Surge Protection | 6KV / 10KV |
| Material | Stretched aluminum profile |
| Driver Brand | Inventronics / Maso / Songsheng Sosen |
| Application | Square stadium / Tunnel bridge / Engineering lighting |
Model Specific Data
| Model Number | Power | Dimension (mm) | Luminous Flux | Package Size (mm) | Weight |
| WG-100 | 100W | L600 * W300 * H85 | 12000 lm | 680 * 235 * 325 | 1.9 KG |
| WG-150 | 150W | L600 * W300 * H85 | 17500 lm | 680 * 235 * 325 | 2.04 KG |
| WG-200 | 200W | L700 * W300 * H70 | 220451 lm* | 780 * 300 * 110 | 2.9 KG |

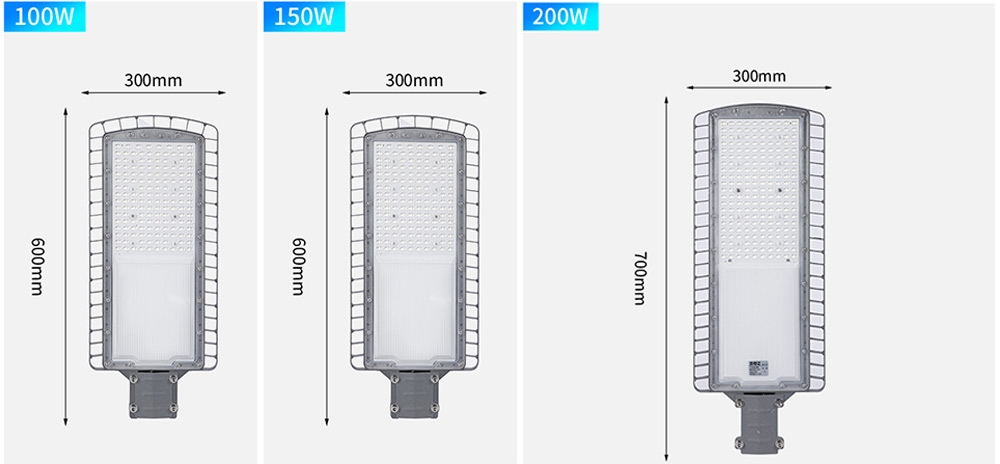

Power & Dimensions
Highway & Expressway Illumination
Precision-engineered LED Street Light systems are essential for high-speed traffic safety.
Our fixtures provide a uniform light distribution that eliminates dangerous dark spots,
ensuring a safer driving experience while significantly reducing municipal energy consumption.
Urban Main Roads & Secondary Streets
For city planners, the LED Roadway Light is a long-term investment.
These fixtures enhance visibility for both motorists and pedestrians,
featuring a sleek design that integrates seamlessly into modern urban landscapes while lowering maintenance overhead.
Commercial Parking Lots & Plazas
A well-lit parking area is a secure parking area. Our LED Area Lighting eliminates shadowed corners,
deterring crime and increasing customer confidence.
The wide-angle beam ensures maximum coverage with fewer poles required, saving on installation costs.

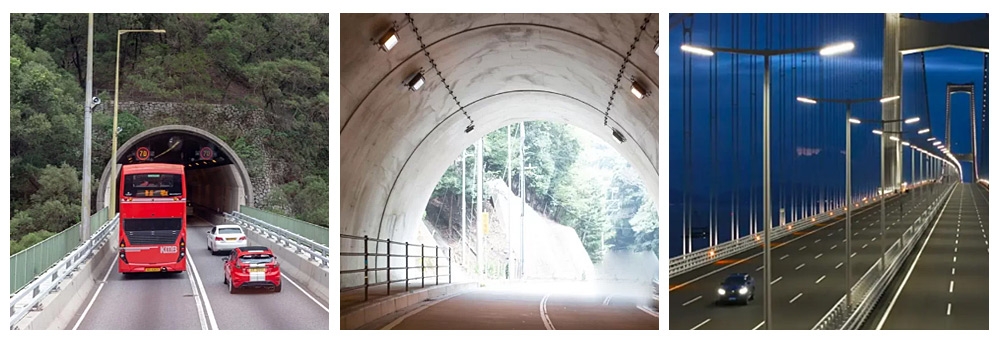

Bridge & Tunnel Entrances
With a rugged IP66 waterproof rating and superior vibration resistance,
these lights are built for the harsh conditions of bridge and tunnel infrastructure.
They offer consistent performance against high winds and humid environments, ensuring zero-interruption service.
PRODUCT PRODUCTION WORKSHOP
Direct Manufacturer Advantage: Partnering with Jieyao means working directly with our Yangzhou-based factory, not a middleman.
We operate full in-house production lines for poles, LED luminaires, and solar systems.
Our facility features CNC cutting, automatic welding, hot-dip galvanizing, and photometric testing labs.
This vertical integration ensures structural integrity, high corrosion resistance, and stable lead times for high-volume infrastructure projects.
|
|
|
(Battery Assembly Workshop)Our facility for building high-capacity lithium battery packs to ensure long-term energy storage. | (Solar Panel Assembly Workshop)Where we manufacture high-efficiency silicon panels to maximize solar energy harvesting. | (Luminaire Assembly Workshop)The final production line where we integrate all components into a rugged aluminum housing. |
|
|
|
(LED Light Source Assembly Workshop)A precision environment dedicated to mounting high-lumen LED chips for optimal light distribution. | (Electrostatic Spraying Equipment) : Utilizes advanced electrostatic technology to apply weather-resistant polymer coatings, ensuring superior adhesion and anti-corrosion. | (Welding Workshop) : Specialized station for heavy-duty welding of base flanges, service doors, and structural reinforcements. |
|
|
|
(1000T Plate Rolling Machine): Converts raw steel sheets into high-strength round or octagonal poles with precision geometry. | (Powder Coating WorkshopProcess):Electrostatic Polymer Fusion.This ensures 25+ years of superior anti-corrosion and UV resistance for every pole. | (Pole Straightening Machine):Calibrates each shaft to eliminate deviations, ensuring 100% verticality and architectural precision. |
Certifications
Compliance & Standards: Our products are engineered and tested to meet international safety and performance requirements.
From CE and RoHS for electronic safety to specialized ISO manufacturing standards,
Jieyao Lighting ensures every component—from LED drivers to steel poles—is fully certified for global infrastructure tenders.
|
|
|
GB/T 45001-2020/ISO 45001:2018 | LED lamps CE | GB/T 19001-2016/ISO 9001:2015 |
|
|
|
GB/T 24001-2016/ISO 14001:2015 | CCC Certification | Solar street light CE |
|
|
|
Trademark Registration Certificate | WEEE Certificate | WEEE Certificate |
FAQ about LED Road Lights
Why should I upgrade to LED Road Lights if my current HID/Sodium lamps are still working? The primary driver is drastic cost reduction. LED road lights consume 60%–70% less energy than traditional high-pressure sodium (HPS) or metal halide lamps. More importantly, while old bulbs need replacing every 12–24 months, high-quality LEDs last over 50,000 hours. You aren't just saving on electricity; you’re eliminating the high cost of hiring bucket trucks and maintenance crews for years.
How do I choose the right wattage to replace my old street lights? Focus on Lumens, not just Watts. In the LED world, brightness is measured by light output. Generally, a 50W LED Road Light can easily replace a 150W traditional lamp. To give you the best recommendation, we suggest considering your pole height; for example, an 8-meter pole typically requires a different lumen output than a 12-meter pole to ensure ground safety.
Can these lights withstand extreme weather like heavy rain or coastal salt air? Absolutely. Our fixtures are built for the outdoors. With an IP65/IP66 waterproof rating, they are completely sealed against dust and high-pressure water jets. We use die-cast aluminum housing with an anti-corrosion powder coating, ensuring the body won't rust or degrade even in humid, salty, or stormy environments.
Will the light be too "harsh" or cause glare for drivers? Safety is our priority. We use professional optical lenses (such as Type II or Type III distribution) that shape the light into a "batwing" pattern. This spreads the light evenly across the road surface rather than concentrated in one blinding spot. This design minimizes glare, keeping the road clear and safe for both drivers and pedestrians.
Are these road lights protected against lightning strikes or power surges? Yes. Lightning is a major "killer" of outdoor electronics. Our lights come equipped with a built-in 10kV/20kV Surge Protection Device (SPD). This acts as a shield, intercepting voltage spikes from lightning or grid instability and protecting the internal LED chips and driver from burning out.
Should I choose "Cool White" or "Warm White" for my project? It depends on your goal. Cool White (5000K-6000K) provides maximum visibility and alertness, making it ideal for highways and industrial zones. Warm White (3000K-4000K) is softer and better for residential areas or parks, as it reduces light pollution and offers better penetration in foggy or misty conditions.
Do I need to manually turn the lights on and off every day? No need for manual operation. You can opt for a Photocell (Dusk-to-Dawn sensor). This allows the light to automatically turn on at sunset and off at sunrise. It’s a "set it and forget it" solution that ensures safety while preventing energy waste during daylight hours.
Why is there a price difference between your lights and cheaper options online? In the lighting industry, you get what you pay for. Cheaper lights often use low-grade drivers and chips that dim or fail within 6 months. Jieyao focuses on Total Cost of Ownership. By using premium components, we ensure our lights maintain their brightness for years, saving you the massive headache and expense of frequent repairs.
What happens if a light fails? What is your warranty policy? We stand behind our products with a 3 to 5-year hassle-free warranty. If a fixture fails due to a manufacturing defect during this period, we provide replacement parts or new units promptly. We aim to be your long-term partner, not just a one-time vendor. |
Since 2006, Jieyao Lighting has evolved from a specialized structural workshop in Gaoyou into a National High-Tech Enterprise and a trusted partner for State Grid and China Railway. Backed by 18 years of expertise, a 10,000㎡ ISO-certified facility, and 80M+ RMB in assets, we deliver precision-engineered LED Street Lights to 80+ countries.
Our standard efficiency is 140-160 lm/W. Our premium series with high-spec chips can exceed 180 lm/W, delivering higher brightness with lower power consumption.
3000K (Warm White) provides better fog penetration, while 4000K-5000K (Natural White) offers a visual experience closest to daylight, making it the top choice for most municipal projects.
Heat is the biggest threat to lifespan. We treat the entire die-cast aluminum housing as a "heat sink" with integrated cooling fins. This pulls heat away from the chips and releases it instantly, preventing dimming and ensuring a 10-year life for your LED Street Lights, even in tropical heat.
Our LED street lights feature an IP66 rating (completely dust and waterproof) and an IK08/IK10 impact rating, ensuring durability in harsh outdoor environments.
Yes. We provide 10kV Surge Protection Devices (SPD) as standard, with options to upgrade to 20kV for regions with unstable power grids.
We select top-tier brands like Meanwell, Inventronics, and Philips to ensure a service life of over 50,000 hours.
Our specially powder-coated fixtures can pass 500-1000 hours of salt spray testing, making them ideal for coastal areas with high salt mist.
No. Our circuit design combines series and parallel connections, so a single chip failure will not affect the operation of the other LEDs.
Yes, LED lighting can save 50%-70% in energy costs, offers better color rendering, and has a lifespan 3-5 times longer than HPS.
We install breather valves (GORE vents) to balance pressure and expel moisture, preventing condensation from damaging electronic components.
Internal fasteners and screws are typically SS304/316, while the main bracket is die-cast aluminum or hot-dip galvanized steel for combined strength and corrosion resistance.
Our fixtures use heat-resistant drivers and optimized cooling structures to operate long-term at 55°C without power de-rating.
Yes, the finish and color of the LED street light housing are fully customizable to meet specific project aesthetics or branding requirements.
