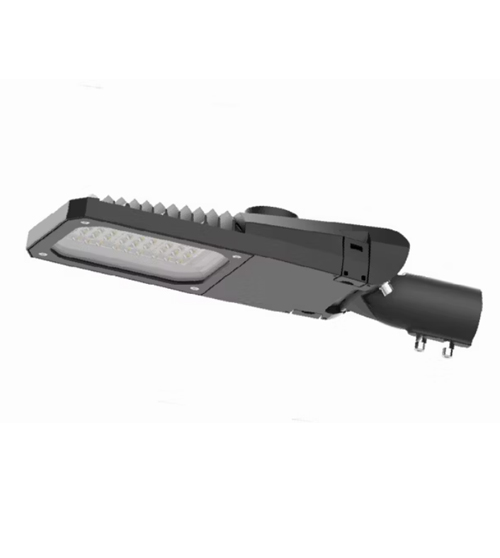

Modular LED Street Light for Modern Road Lighting Systems Modular LED street light is designed for flexible and scalable outdoor lighting projects. With a detachable LED module structure, it allows customized power configuration, better heat management, and easier maintenance compared to traditional integrated street lights. It is widely used in urban roads, highways, industrial zones, and municipal lighting upgrade projects where long-term stability and energy efficiency are required. |
| Why Choose Modular LED Street Light? Flexible Lighting Configuration for Different Road Types,Unlike fixed structure street lights, the modular design allows engineers to adjust the number of LED modules based on road width, lighting standard, and project requirements. Narrow streets (6–10m): single or dual module Urban roads (10–20m): dual or triple module Highways (20–40m): multi-module high-power setup This flexibility reduces over-lighting and improves uniform road illumination. |
Modular LED Street Light Technical Specifications
Item | Specification |
Power Range | 30W – 300W |
Luminous Efficiency | 130 – 180 lm/W |
LED Lifespan | ≥ 50,000 hours |
Protection Level | IP65 / IP66 |
Operating Temperature | -40°C to +50°C |
Installation Height | 4m – 12m poles |
Material | Aluminum alloy housing |
Modular vs Traditional Street Light (Key Difference)
Feature | Modular LED Street Light | Traditional Integrated Light |
Maintenance | Replace single module | Replace whole fixture |
Flexibility | High (custom configuration) | Low |
Heat Management | Distributed | Concentrated |
Upgrade Possibility | Easy | Limited |
Lifecycle Cost | Lower | Higher |

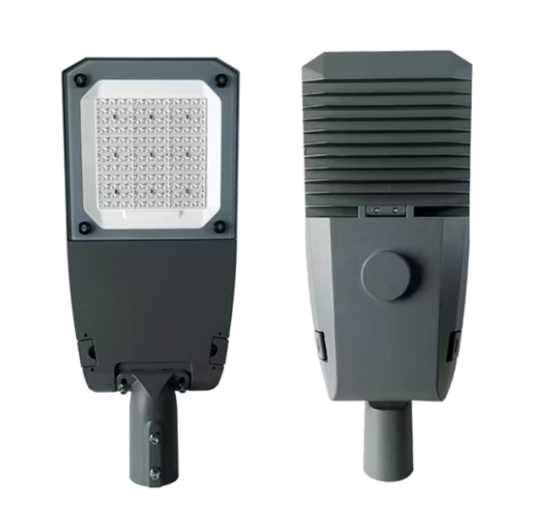

IP66 Waterproof LED Street LightsBuilt with Philips LEDs and Meanwell/MOSO drivers, this series hits 170lm/W efficiency, cutting energy costs by over 50%. It handles AC100-277V and stays resilient from -40°C to 50°C with an IP65 rating. Featuring optional microwave sensors and flexible mounting, it’s the ideal 50,000-hour solution for roads and parks. Backed by a 5-year warranty.Energy-Efficient LED Street Lighting Solutions |
|
| Features an 80°×150° beam via high-clarity PC optics, creating soft, consistent light that eliminates glare. Customize your LED Street Lights with CCTs from 3000K to 5700K (Ra70/80). Achieving 170 lm/W with a >0.95 power factor, this model provides high-output performance with minimal power waste. |

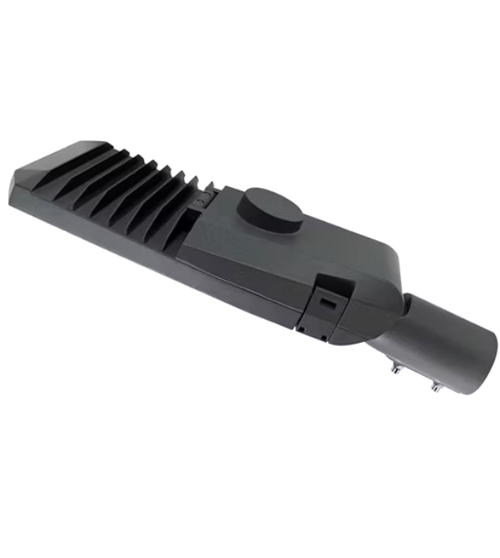

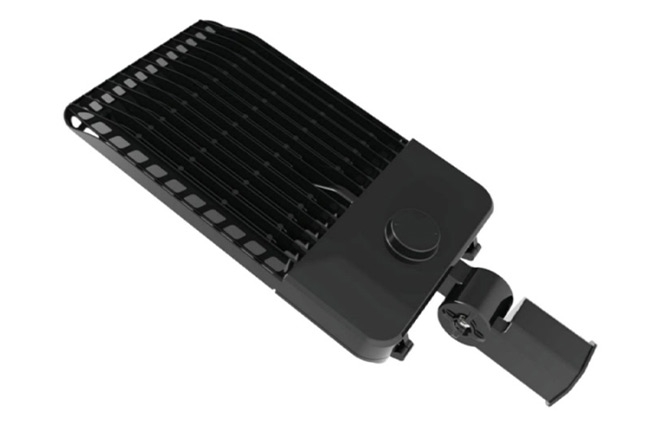

Outstanding heat dissipation and structural design |
|

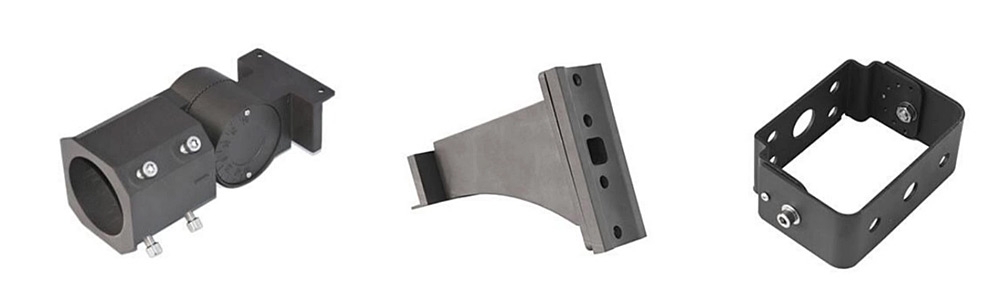

3 kinds of installation methods
Provide three installation methods, which can meet the requirements of various lamp posts and supports.
The installation is convenient and stable. The compact design reduces visual presence and integrates
harmoniously with the urban environment.
Multiple light distribution options
80°×150° asymmetric light distribution, multiple light types available (from Class I to Class V),
suitable for various road lighting requirements - applicable from sidewalks, residential areas to highways, large parking lots.
|
|
For sidewalks, paths and shoulders lighting | For wider sidewalks, ramps, entrance roadways, etc. |
|
|
For roadways, large parking areas and other area lighting | Be applicable to parking lots, center islands, intersections,and large commercial parking lots, etc. |

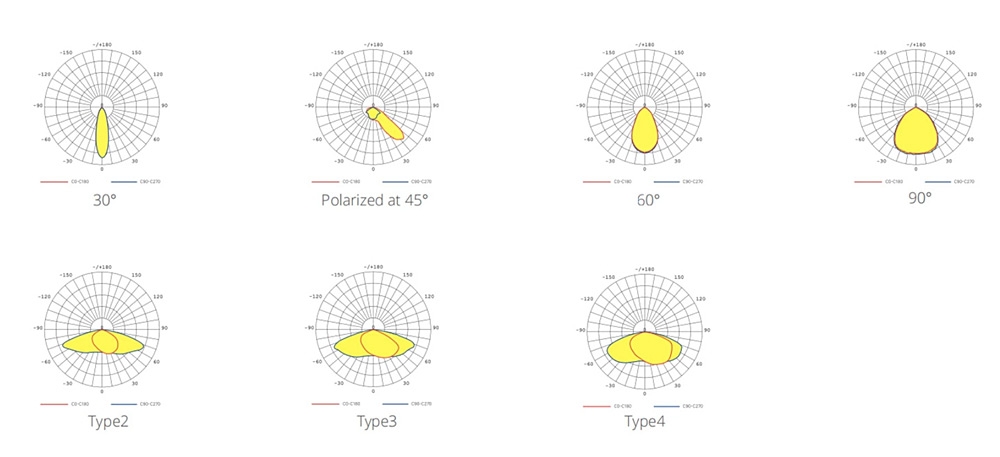

Precise light distribution, energy-efficient

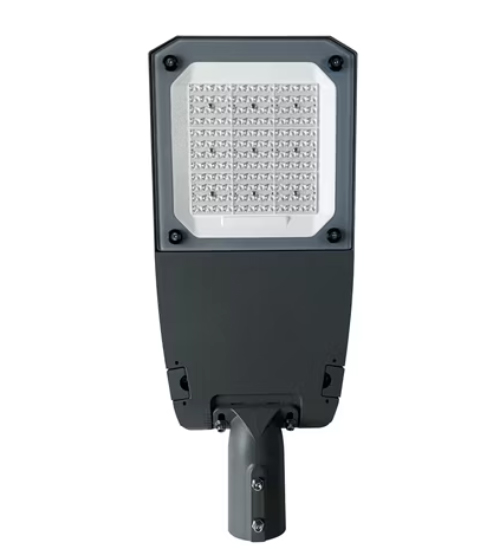

Utilizing high-quality EMC5050/3030 LEDs, the luminous efficiency reaches up to 180lm/W.
Multiple beam angles (30°/45°/60°/90°) and light distribution types (Type II, III, IV, V) are available,
meeting the different illumination and uniformity requirements from branch roads to main roads,
parking lots to highways, effectively controlling glare and enhancing road safety.

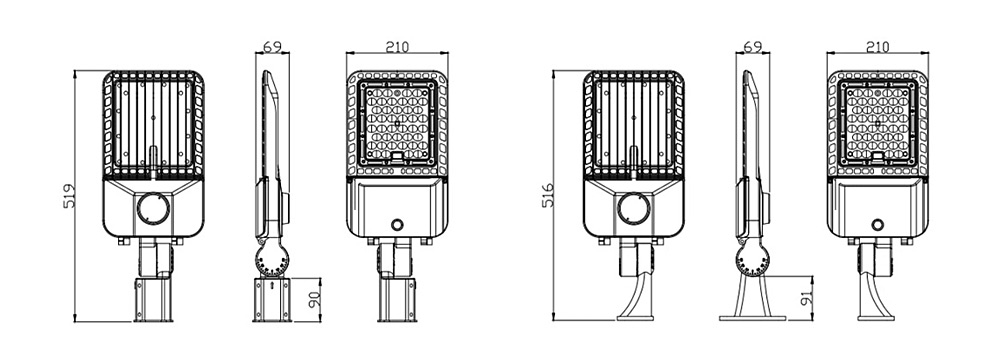

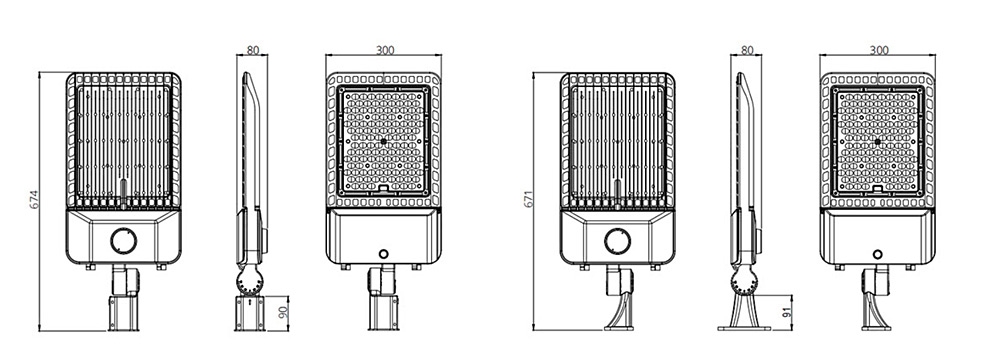

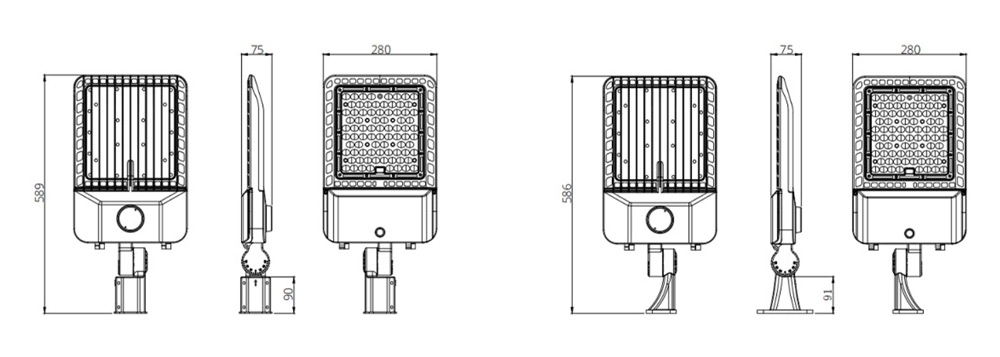

Sizes of LED Street Light
JIEYAO-Y100
JIEYAO-Y150
JIEYAO-Y200
Outdoor Street Lights Applications
LED street lights are widely used in outdoor spaces requiring reliable and efficient illumination,
providing safe and uniform lighting for various public and traffic areas: Find the Right LED Street Light for Your Project

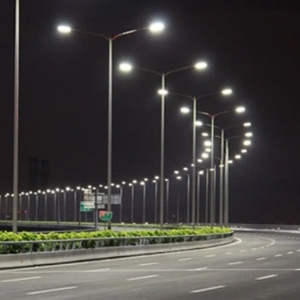

| Highways & Main Roads Driving at night can be tiring for the eyes. Our LED Road Lights give off a super steady, clear glow that doesn't glare. It makes the asphalt look almost like it's daytime, helping drivers stay sharp and see obstacles way before they get close. ▶ View Related Lighting Projects |

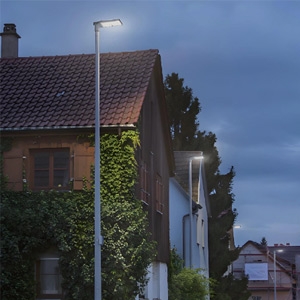

| Neighborhood Streets No one wants a giant spotlight shining into their bedroom while they sleep. We designed these LED Street Lights to push all the light down where it's needed—on the road and sidewalk. Your neighbors stay happy, and the streets stay safe for late-night dog walks. |

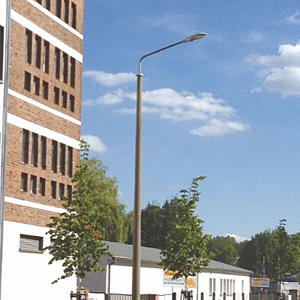

| Industrial Parks & Busy Yards In places with heavy trucks and 24/7 loading, you need gear that can take a beating. Our LED Road Lights don’t mind the dust or the constant shaking from big engines. They stay bright and flicker-free, so your team can work safely without any "dark corners." |

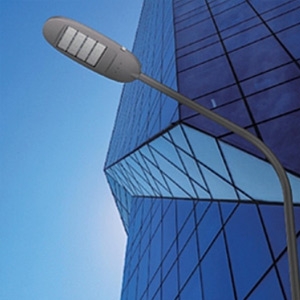

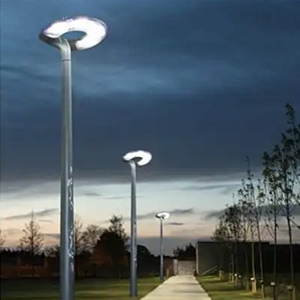

| Parks & Public Squares A park should feel cozy, not like a cold hospital. You can choose "warm" light colors for our LED Street Lights to create a welcoming vibe. Plus, they don’t care about heavy rain or sprinklers—they’re built to stay dry and bright in any weather. |
| Shopping Center Parking Lots Keeping a huge lot lit all night can drain your budget. Switching to our LED Road Lights can cut those power bills by more than half. We also offer smart sensors that dim the lights when the lot is empty, saving you even more cash while keeping the area secure. |

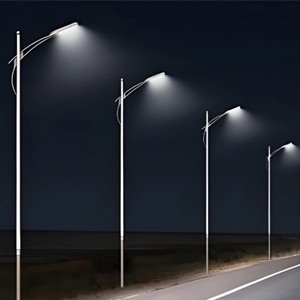

| Coastal & Seaside Roads Salt air "eats" cheap metal for breakfast. We gave these LED Street Lights a special anti-rust skin so they won't peel or rot near the ocean. If you’ve had lights fail because of the salty breeze before, these are the long-term fix you need. |

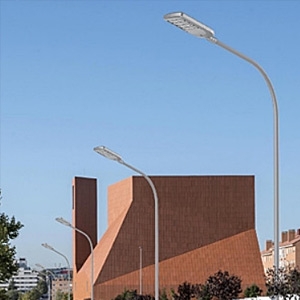

| School & College Campuses Students need to feel safe walking from the library to the dorms. Our LED Road Lights get rid of creepy shadows behind trees and bushes. They also make security camera footage look crystal clear, so your guard team can see exactly what’s happening. |

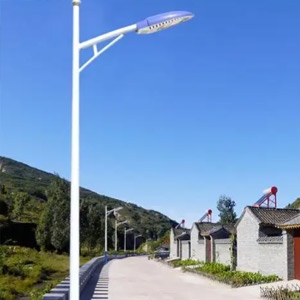

| Rural Areas with Unstable Power In remote spots, the power often "jumps" or drops, which usually kills normal bulbs. We built these LED Street Lights to handle those messy power spikes. They keep shining even when the local grid isn't being very helpful, reducing those annoying repair trips. |
Engineering Customization Support Provide engineering support based on real project conditions rather than fixed product models. For different road lighting projects, we design wattage and lumen output according to road width to ensure proper illumination levels. Photometric distribution is adjusted based on the installation environment to improve lighting uniformity. Pole height is also matched according to road type and project requirements. wind load resistance is calculated based on local standards to ensure structural safety. Optional smart control systems such as DALI, IoT, and timing dimming are available when needed. ▶ Talk to Our Lighting Engineer
Project Value for Buyers The modular structure supports easier maintenance and faster replacement, which lowers maintenance workload over time. It also improves lighting consistency across road sections, enhancing overall safety performance. In addition, the system supports scalable smart city upgrades and helps reduce total cost of ownership (TCO) through lower energy consumption and simplified maintenance processes. Installation and replacement are also faster compared to traditional integrated street lights, which is important for large-scale municipal projects and road construction schedules. |
Common Questions About LED Street Lights
1. How much can I really save on electric bills? Switching to these LED Street Lights usually cuts your power bill by 50% to 70% instantly. Because they hit 170lm/W, you get way more light while using much less wattage than old HID or HPS lamps.
2. Will these lights survive a bad storm or a lightning strike? Yes. We build in 10kV/20kV surge protection to act as a shield against power spikes and lightning. With an IP66 waterproof rating, these LED Road Lights keep shining through heavy rain and high winds without a hiccup.
3. What happens if one of the lights stops working? Don't worry—you don't need to throw the whole thing away. Our "tool-less" design means a technician can snap the housing open by hand and swap out parts in minutes. Plus, with a 5-year warranty, we’ve got your back if anything goes wrong.
4. Can I use these near the ocean? Won't they rust? Most cheap lights will rust in salty air, but ours won't. We use ADC12 aluminum with a special anti-corrosion coating. These LED Street Lights are built to stay tough and look new, even in salty coastal environments.
5. How long do they actually last before I have to replace them? You’re looking at over 50,000 hours of light. If you run them for 12 hours every night, that’s more than 11 years of maintenance-free service. No more renting expensive cranes every few months to change bulbs.
6. Is the light too "blue" or "harsh" for a neighborhood? Not at all. You can choose the "vibe" you want. We offer warm 3000K light for a cozy park feel, or bright 5700K white for high-security areas. These LED Road Lights also point the light down, so they won't glare into people's bedroom windows.
7. Can I add "Smart" features like sensors later? Absolutely. We can pre-install a NEMA socket on top. This lets you "plug and play" smart controllers or light sensors whenever you're ready to upgrade your LED Street Lights to a smart system.
8. Do they work in freezing winters or burning hot summers? Yes, they are tested from -40°C all the way up to +50°C. The heavy-duty aluminum shell acts like a giant radiator to pull heat away, so the LED Road Lights stay cool and won't burn out in the summer heat. |
Since 2006, Jieyao Lighting has evolved from a specialized structural workshop in Gaoyou into a National High-Tech Enterprise and a trusted partner for State Grid and China Railway. Backed by 18 years of expertise, a 10,000㎡ ISO-certified facility, and 80M+ RMB in assets, we deliver precision-engineered LED Street Lights to 80+ countries.
Our standard efficiency is 140-160 lm/W. Our premium series with high-spec chips can exceed 180 lm/W, delivering higher brightness with lower power consumption.
3000K (Warm White) provides better fog penetration, while 4000K-5000K (Natural White) offers a visual experience closest to daylight, making it the top choice for most municipal projects.
Heat is the biggest threat to lifespan. We treat the entire die-cast aluminum housing as a "heat sink" with integrated cooling fins. This pulls heat away from the chips and releases it instantly, preventing dimming and ensuring a 10-year life for your LED Street Lights, even in tropical heat.
Our LED street lights are designed for outdoor environments and typically come with high protection standards to ensure stable performance in different weather and working conditions.
Yes. We provide 10kV Surge Protection Devices (SPD) as standard, with options to upgrade to 20kV for regions with unstable power grids.
We select top-tier brands like Meanwell, Inventronics, and Philips to ensure a service life of over 50,000 hours.
Our specially powder-coated fixtures can pass 500-1000 hours of salt spray testing, making them ideal for coastal areas with high salt mist.
No. Our circuit design combines series and parallel connections, so a single chip failure will not affect the operation of the other LEDs.
Yes, LED lighting can save 50%-70% in energy costs, offers better color rendering, and has a lifespan 3-5 times longer than HPS.
We install breather valves (GORE vents) to balance pressure and expel moisture, preventing condensation from damaging electronic components.
Internal fasteners and screws are typically SS304/316, while the main bracket is die-cast aluminum or hot-dip galvanized steel for combined strength and corrosion resistance.
Our fixtures use heat-resistant drivers and optimized cooling structures to operate long-term at 55°C without power de-rating.
Yes, the finish and color of the LED street light housing are fully customizable to meet specific project aesthetics or branding requirements.
Yes. We provide lifelong technical support and offer maintenance components at cost price.
We use thick EPE foam protection and 5-layer reinforced corrugated cartons. For bulk orders, we use non-fumigation wooden pallets for securing.
