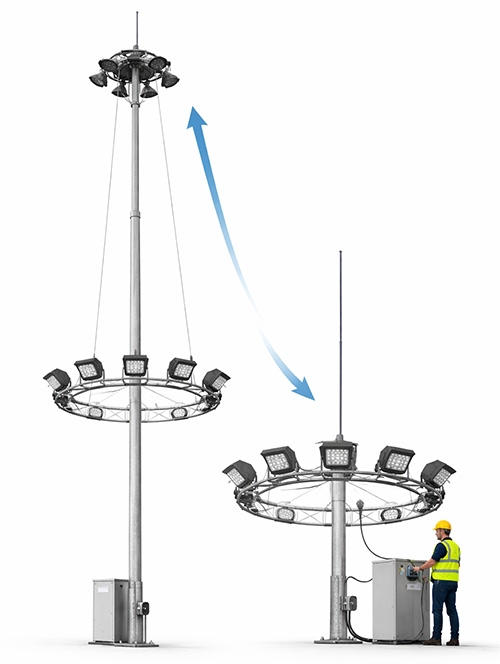

LED High Mast Light with Raising System: Key BenefitsNo More Expensive Cranes The motorized system brings the lights down to ground level in minutes. This removes the need for heavy lifting machinery and special permits, making maintenance much faster and cheaper. Safe Ground-Level Service Technicians work with their feet on the ground, avoiding all high-altitude risks. This keeps your team safe and ensures your site stays fully compliant with safety regulations. Heavy-Duty Wind Resistance Once raised, an automatic lock takes the weight off the cables and onto solid latches. This prevents cable wear and keeps the lights stable even in extreme winds of 45m/s. Keep Your Business Moving Because you don't need bulky equipment to fix the lights, there is no need to shut down port or airport traffic. Your facility stays productive without any downtime for repairs. |
|
LED High Mast Lighting System for Large Area Illumination ▶ LED high mast lighting is designed for large-scale outdoor areas where wide coverage and high brightness are required. ▶ Typical installation height ranges from 20m to 40m, reducing the number of poles while maintaining uniform illumination. ▶ Compared with traditional lighting systems, LED high mast lights deliver 150–180 lm/W efficiency, helping reduce energy consumption by 50–70% in long-term projects.
why LED High Mast Lighting Is Used in Large Projects High mast lighting is widely applied in projects where conventional street lighting cannot provide sufficient coverage. ▶ Fewer poles required → lower infrastructure cost ▶ High lumen output → suitable for large open areas ▶ Long lifespan → 50,000–100,000 hours reduces maintenance ▶ Stable performance in harsh environments (IP66 / corrosion-resistant) This makes it a practical solution for ports, airports, highways, and industrial zones. How to Choose the Right High Mast Lighting System |
Mast Height | Recommended Power | Beam Angle | Typical Application |
20–25m | 200–600W | Wide beam | Parking lots / highways |
25–35m | 400–900W | Medium beam | Ports / logistics yards |
35–45m | 800–1200W | Narrow beam | Airports / large stadiums |
LED High Mast Lighting Selection tips: ▶ Higher pole → requires narrower beam angle ▶ Larger area → higher lumen output required ▶ Coastal areas → need anti-corrosion design |
Feature | Fixed High Mast Light | Raising System High Mast | Product Advantages |
Maintenance | Requires hiring heavy-duty cranes. | Lower the light ring in minutes. | Save on equipment rental costs. |
Worker Safety | Dangerous high-altitude climbing. | Technicians work on the ground. | Zero fall risks; 100% OHS compliant. |
Service Speed | Hours of setup and coordination. | Ready for service in 15 minutes. | Minimize labor hours per pole. |
Site Traffic | Requires road or area closures. | Small footprint; no heavy trucks. | Keep your port or airport running. |
Wind Security | Tension stays on the winch cables. | Automatic locks secure the ring. | Safe in winds up to 45m/s. |
Total Cost | High recurring service expenses. | One-time investment, low upkeep. | Significantly lower lifetime costs. |
Why LED High Mast Lights Are Preferred for Large Projects1. Wide Area Coverage with Fewer Poles High mast lighting can illuminate large spaces from a single pole, reducing infrastructure cost and installation complexity. 2. Energy Saving Up to 60%–80% LED technology significantly reduces electricity consumption compared to traditional HID systems. 3. Long Lifespan (50,000+ Hours) LED high mast lights require less frequent replacement, lowering maintenance cost for large-scale projects. 4. Better Light Uniformity and Visibility High mounting height ensures even light distribution and minimizes shadows across wide areas. |
|
LED High Mast Light Technical Specifications & Performance Data |
Parameter | Specification |
Power Range | 200W – 1200W |
Luminous Efficiency | 150–180 lm/W |
Lumen Output | Up to 180,000 lm |
IP Rating | IP66 |
IK Rating | IK08 / IK10 |
Lifespan | 50,000–100,000 hours |
Surge Protection | 10kV / 20kV |
Color Temperature | 3000K–6500K |
Cold-forged heat sinks offer high thermal conductivity to vent heat efficiently. By balancing the lamp's internal temperature and lowering the light source's junction heat, the system significantly slows down light fade and extends the overall fixture lifespan. |
|
|

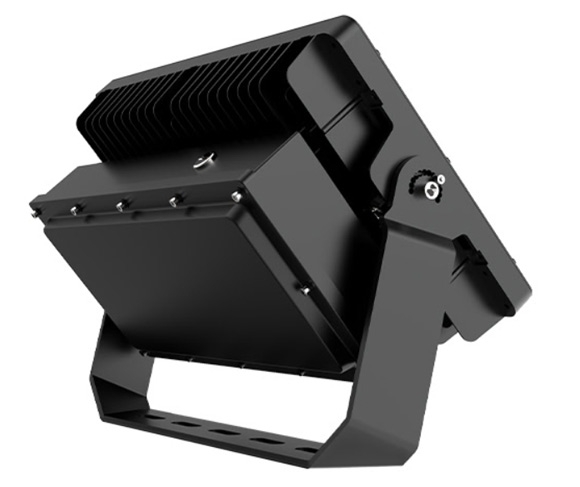

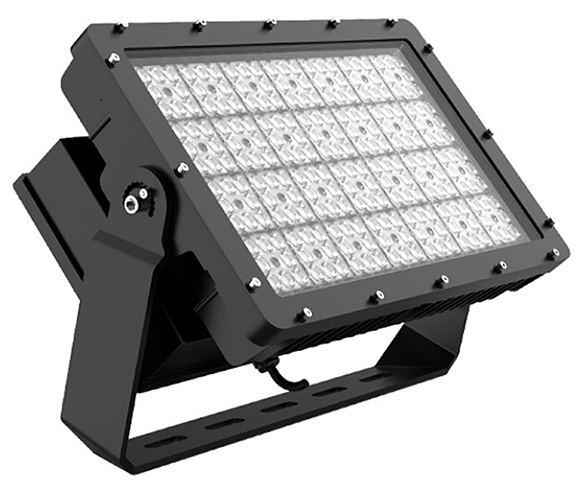

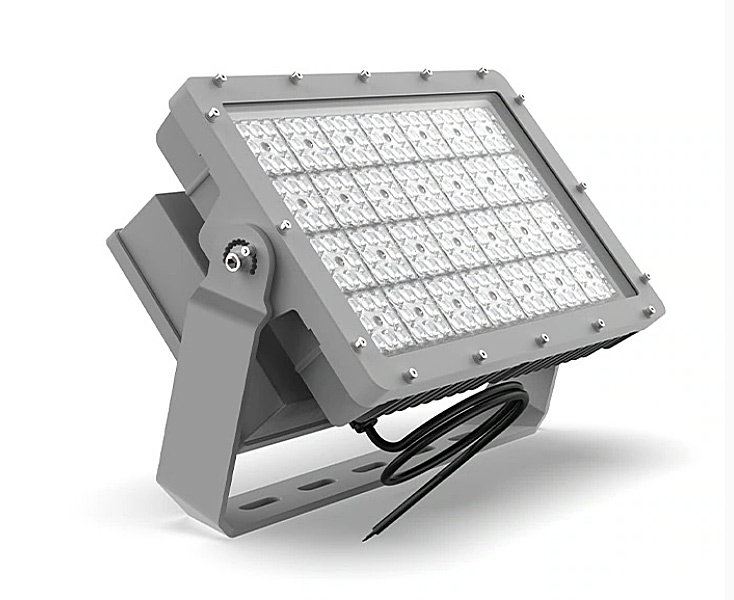

Full 360° Angle Adjustment: The integrated side-screw mechanism provides complete control over light direction. Adjusting the projection angle is quick and precise, ensuring the beam is directed exactly where needed for optimal, uniform area coverage. |

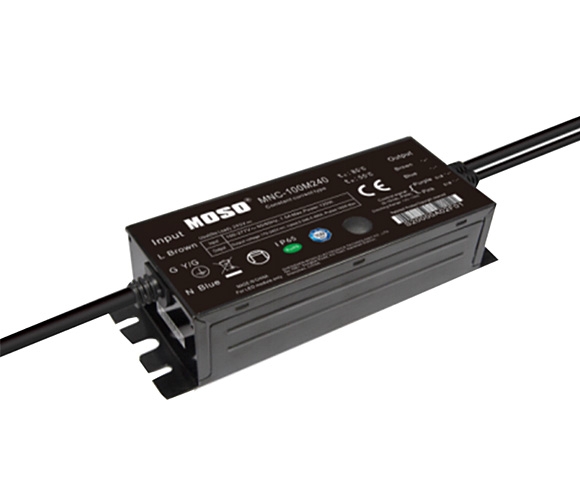

Featuring MOSO technology, this driver offers 10KV lightning protection and over-temperature safety. Its high conversion efficiency and PF > 0.95 reduce energy waste. For intelligent control, the system supports optional DALI or 1-10V dimming protocols, providing seamless integration into smart city or stadium lighting networks. |
|
|

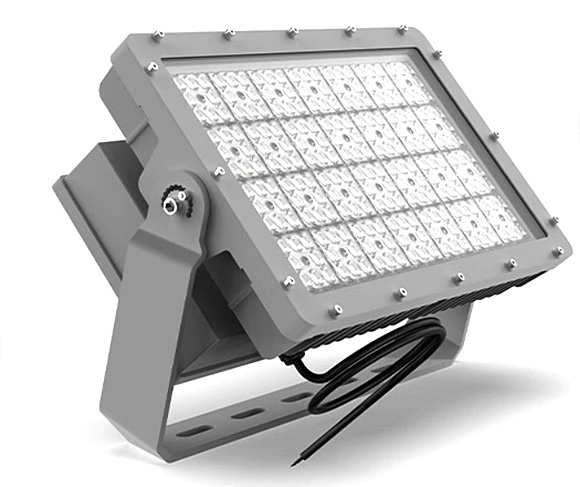

The OSRAM or LUMILEDS light source delivers a high-efficiency 150 lm/W, balancing intense brightness with energy savings. Its 500W modular design allows for fast installation and independent module servicing, significantly reducing maintenance time and site downtime without dismantling the entire fixture. |
LED High Mast Light with Raising System Feature Box
A professional outdoor lighting solution for stadiums, construction sites, parking lots, and building exteriors,
engineered for high efficiency, durability, and adaptability to large-area lighting needs.
|
|
|
|
Superior Heat Dissipation Air convection hollow design and high thermal conductivity aluminum ensure long-term stable operation. | High-Efficiency LED Performance Up to 200lm/W luminous efficacy and 50,000-hour lifespan with renowned brand LEDs. | IP65/IP66 Weatherproof Rating Sealed design for dustproof, waterproof, and corrosion-resistant performance in harsh environments. | Broad Power Range 50W–1000W options to suit varying area sizes and brightness requirements. |
|
|
|
|
Flexible CCT Options 3000K–6500K color temperatures for warm to cool white lighting needs. | Intelligent Control Features 0/1-10V/DALI dimming and optional microwave sensors for energy-efficient, on-demand lighting. | IK08 Impact Resistance Rugged construction to withstand collisions in demanding environments. | Extended Emergency Lighting Optional >120-minute backup for safety during power outages. |
High Mast Lighting Engineering Support & Custom Design Solutions Lighting performance in high mast projects is not only determined by the fixture itself, but also by pole height, layout, and application environment. We provide engineering support based on real project conditions: ▶ Lighting layout design based on area size and installation height ▶ Dialux simulation for illumination and uniformity verification ▶ Pole height and quantity recommendations ▶ Beam angle and photometric distribution selection ▶ Wind load and structural considerations for high mast systems Each configuration is adjusted according to the project scenario, helping improve lighting efficiency while reducing unnecessary cost. Get a High Mast Lighting Design Proposal for Your Project Tell us your project size, pole height, or application scenario. We will provide a suitable lighting layout and configuration based on your requirements. LED High Mast Light vs Traditional Metal Halide |
Feature | LED High Mast | Metal Halide |
Energy Consumption | 50–70% lower | High |
Lifespan | 50,000h+ | 10,000h |
Maintenance | Low | Frequent |
Startup Time | Instant | Slow |
LED High Mast Light with Raising System
High Mast Light Installation Overview High mast lighting installation requires proper planning of foundation, pole structure, and lighting configuration. The installation process is typically completed in several key steps: ▶ Foundation Preparation A reinforced concrete foundation is constructed based on pole height and local wind load requirements. ▶ High Mast Pole Installation The pole (typically 20–40m) is assembled and fixed onto the foundation using anchor bolts. ▶ Luminaire Mounting LED luminaires are installed on the top frame or ring system, depending on the design. ▶ Electrical Connection Power cables, control systems, and surge protection devices are connected and secured. ▶ System Testing & Adjustment The system is tested for lighting performance, beam direction, and overall stability. Proper installation helps ensure long-term performance and reduces maintenance frequency in large outdoor lighting projects. |
High Mast Lighting FAQ
Everything You Need to Know About LED High Mast Lights with Raising Systems
1. What is a high mast lighting system used for? High mast lighting is used for large outdoor areas such as ports, airports, highways, and industrial yards. It provides wide-area illumination from heights typically between 20m and 40m, reducing the number of poles required. 2. How high is a typical high mast light pole? Most high mast lighting systems are installed at 20m to 40m. Lower heights are used for parking areas, while higher poles are common in ports and airport applications. 3. What wattage is suitable for a 30m high mast light? For a 30m installation, LED luminaires typically range from 400W to 900W, depending on the required brightness and coverage area. 4. How much area can one high mast light cover? A single high mast lighting system can cover approximately 6,000 to 30,000 square meters, depending on pole height, wattage, and beam angle. 5. How many luminaires are installed on one high mast pole? Most high mast poles are equipped with 4 to 12 LED luminaires, arranged on a top frame or ring system to ensure uniform light distribution. 6. Is high mast lighting suitable for coastal or high-wind areas? Yes. High mast lighting systems can be designed with anti-corrosion coatings and wind load resistance, making them suitable for ports and coastal environments. 7. What is the lifespan of LED high mast lighting? LED high mast lights typically have a lifespan of 50,000 to 100,000 hours, significantly reducing maintenance frequency compared to traditional lighting. 8. How to choose the right beam angle for high mast lighting? Beam angle depends on installation height and coverage needs. Lower poles → wider beam Higher poles → narrower beam This helps maintain uniform illumination across large areas. |
Our structural designs are based on local wind data. Standard designs withstand winds up to 160km/h (45m/s), with reinforced options for hurricane-prone regions.
It depends on the mounting height and required lux levels. Generally, for a 25-30m pole, high-power LED floodlights ranging from 400W to 1000W are recommended.
High mast light refers to poles typically 20m (65ft) or taller. It is widely used in airports, seaports, highways, stadiums, and logistics hubs to provide uniform illumination over a vast area.
Q345B has higher yield strength, allowing taller, slimmer poles to remain safe while reducing weight and improving wind performance.
Yes. For coastal cities, we provide anti-corrosion powder coating that meets 500-1000 hours of salt spray test requirements.
High mast poles are designed for large-area outdoor lighting, and their height usually depends on the size of the space that needs to be illuminated.
We use high-strength carbon steel such as Q235B or Q345B, bent into polygonal shapes (usually 12 or 16 sides) and hot-dip galvanized both internally and externally.
Raising & Lowering systems feature an electric winch to lower the light ring to ground level for maintenance. Fixed systems require a bucket truck or ladders for servicing.
It consists of an electric winch, stainless steel wire ropes, pulleys, and an automatic latching mechanism. Once reaching the top, the ring locks mechanically to relieve tension from the ropes.
No. Our systems feature an automatic mechanical latching system and safety brakes to ensure the ring stays secure even without rope tension when in the locked position.
Yes. Each pole is equipped with a lightning rod at the top and dedicated grounding bolts to connect to the foundation grounding system.
We use professional asymmetrical optical lenses (such as Type IV or Type V) to ensure uniformity over large areas and minimize glare.
Through shields and precise light distribution design, we confine excess light to the target area, reducing interference for the surrounding environment and drivers.
A concrete foundation must be poured based on pole height and soil conditions. We provide detailed foundation drawings and anchor bolt cages.
In standard outdoor environments, hot-dip galvanizing provides rust protection for over 25-30 years without requiring additional painting.
Yes. Due to height limits, poles over 20m are typically split into 2-3 telescopic sections for convenient shipping in 40ft containers.
No. Sections are joined via overlap (telescopic fit) using gravity or hydraulic force. This mechanical joint is more flexible and fatigue-resistant than welding.
Yes. Our professional lighting design team provides free Dialux simulation reports based on your site’s CAD drawings to optimize lighting layouts.
Yes, we have extensive project references in the Middle East, Southeast Asia, and South Africa. We can provide photos and technical parameters upon request.
We typically offer a 10-year warranty on the pole structure and a 5-year warranty on the LED fixtures and lifting systems.
Yes. Our light rings can be customized with brackets to accommodate CCTV cameras or other security sensing devices.
EPA refers to the Effective Projected Area of the pole and fixtures under wind pressure. It is a critical parameter for calculating structural safety.
Technically yes, but due to high power consumption, very large solar arrays and battery banks are required. We typically recommend grid-tied or hybrid systems.
We use high-quality stainless steel or plastic-coated wire ropes and recommend regular greasing during annual inspections.
Yes. With intelligent control systems, you can remotely adjust brightness and scheduling to maximize energy savings.
