High protection,reliable performance IP67 protection level, unafraid of rain, snow, dust and corrosive environments; pure aluminum heat sink ensures efficient heat dissipation, ensuring the lamp maintains stable output even in high-temperature conditions, with a lifespan of up to 50,000 hours. | High Light Efficiency Up To 170lm/W Adopting advanced SMD 3535/5050 chips and optical system, it achieves a super high luminous efficacy of 170lm/W, saving over 80% energy compared with traditional lamps and significantly reducing long-term operating costs. |

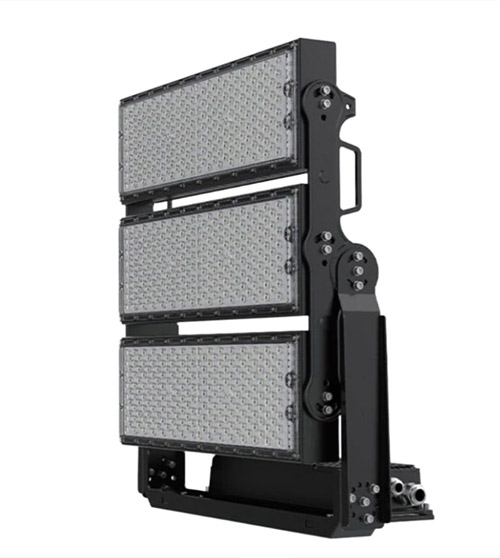

Datasheet Of LED Basketball Court Lights
Model No. | JY-500W | JY-600W | JY-1000W | JY-1200W | JY-1500W |
Power | 500W | 600W | 1000W | 1200W | 1500W |
Materials | Die casting aluminum + PC | ||||
Light efficiency | 160/170 lm/W | ||||
Input Voltage | 100 - 277Vac / 180 - 528Vac (50/60Hz) | ||||
Beam angle | 8°/ 12°/ 22°/ 40°/ 60° | ||||
PF | >0.97 | ||||
LED Lifespan | >50000 hours | ||||
IP Rating | IP67 | ||||
Impact resistance | IK08 | ||||
Working temperature | -30°C - +55°C | ||||
CRI | >70 / 80 | ||||
CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||||
LxWxH (mm) | 408x420x238 | 408x420x238 | 536x539x476 | 536x539x476 | 595x615x510 |
Warranty | 5 Years | ||||

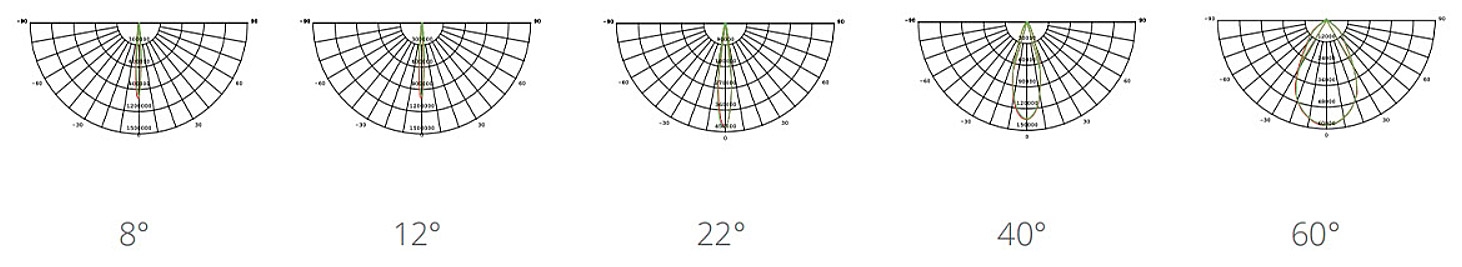

Beam Angle LED Basketball Court Lights
The LED Basketball Court Lights JY series offers four high-power models ranging from 500W to 2000W, forming a complete high-power product matrix.
It aims to provide the most precise and efficient lighting solutions for various outdoor lighting projects.

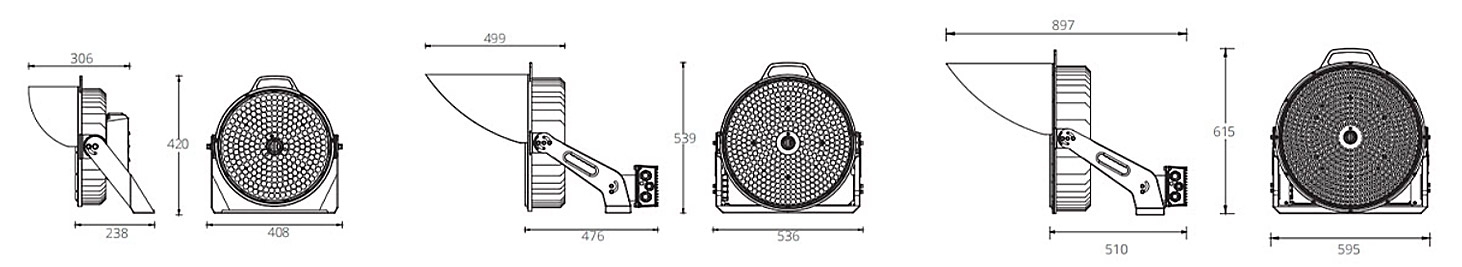

LED Basketball Court Lights Sizes
LED Basketball Court Lights JY series offers a comprehensive selection of five power models—from 500W to 1500W—each engineered
with optimized dimensions to deliver tailored lighting solutions for projects of all scales.
Optimized Fixture Recommendations by Venue Type
Selecting the correct luminaire is essential for effective lighting about basketball court.
|
| |

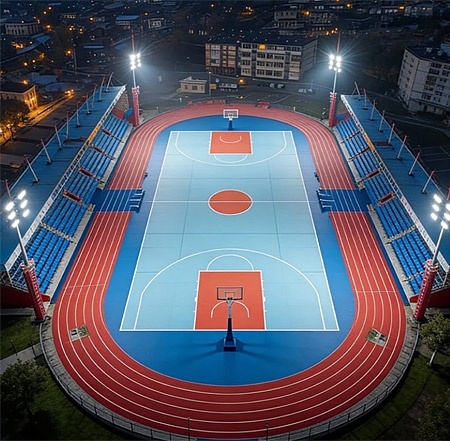

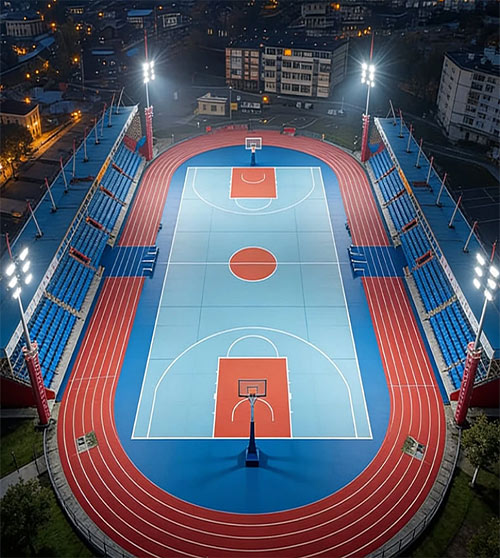

Large Sports Park Court Delivers expansive coverage and uniform light distribution, specifically optimized for public sports park stadiums. The anti-glare design ensures visual comfort during intense play, while the IP65-rated housing provides reliable protection against rain, snow, and corrosive elements without compromising performance.

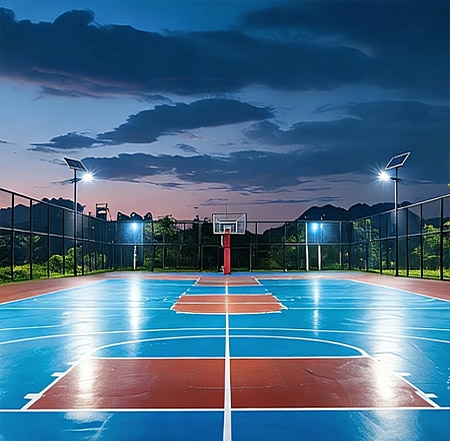

| Off-Grid Basketball Court For off-grid basketball court lighting, the JY series All-in-Two solar system eliminates complex trenching and wiring. The split-type architecture allows the solar panel to be positioned independently for peak charging efficiency, ensuring the LEDs remain fully powered even when the installation site is partially obstructed by trees or buildings.
| |
|
| |
Standard Basketball Court The luminaire pairs a high-brightness engine with a versatile 360° trunnion mount, allowing for exact aiming across complex court layouts. By offering various professional light distributions, it guarantees consistent, standardized illumination while significantly reducing energy overhead for sports park operators.
| Large Arena High-mast Featuring a modular architecture and superior CRI, this high mast luminaire supports sophisticated circular arrays. The overlapping beam patterns radiate from the center to ensure gap-free coverage, providing vivid, color-accurate visibility that optimizes the viewing experience for both athletes and fans.
| |
|
| |

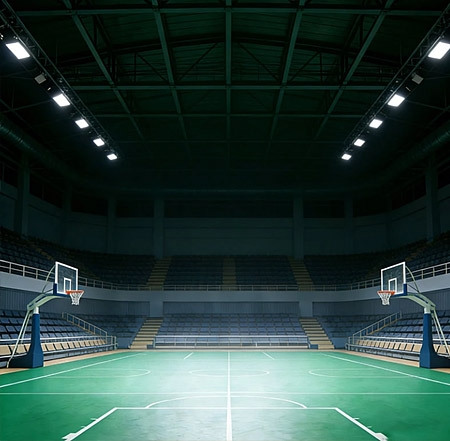

Main Competition Area These high-efficiency luminaires combine specialized beam angles with a flexible mounting architecture to solve complex stadium lighting challenges. Whether fixed to ceilings or poles, the high bay system creates a focused, shadow-free environment that prioritizes visual comfort and operational efficiency within the main arena.
| Sideline and Baseline Designed to eliminate visual interference in indoor arenas, these LED sports lights deliver precise sideline and baseline distribution. The integration of full-protocol smart dimming ensures the playing surface remains perfectly lit while allowing for adaptable power management, meeting the rigorous standards of modern multi-purpose sports facilities.
|
Core Technical Requirements for Basketball Court Lighting
Basketball court application | CRI | IP | CCT | Illuminance | Uniformity | Power |
Indoor-training | Ra≥80 | IP20 | 4000-5700K | 300lx | ≤0.4 | 100-150W |
Indoor-professional | Ra≥90 | IP20 | 4500-5700K | 750-1000lx | ≤0.3 | 150-200W |
Outdoor-training | Ra≥70 | IP65 | 5000-6000K | 200lx | ≤0.5 | 200-250W |
Outdoor-professional | Ra≥80 | IP67 | 5000-6000K | 500-750lx | ≤0.35 | 250-300W |
Key Design Factors for Basketball Court Lighting Systems
|
| |
Environmental Durability Outdoor lighting fixtures requires a minimum IP65 rating(IP66 recommended) for weatherproofing and robust construction to withstand impact.
| Mounting Strategy & Layout This is the core of basketball court design. Indoor arenas favor side-mounting from structures to keep glare out of players' sightlines, while outdoor courts use corner or sideline pole-mounting. The layout is engineered using photometric simulation software.
| |
|
| |
Smart Control Integration Modern basketball court lighting should incorporate dimming, zoning, scheduling and motion sensors for energy management, allowing easy adaptation for different events. | Spill Light control & Community Impact Responsible basketball court lighting, especially outdoors mandates "full-cutoff "or"fully-shielded“ fixtures to minimize light pollution and trespass onto neighboring properties. |

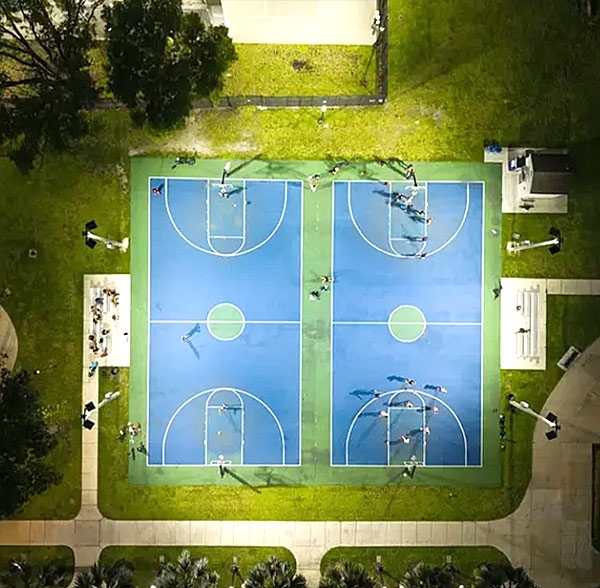

The Real Value of Pro Basketball Lighting
◉ Lower Power Bills: New LED tech cuts energy use by 60-75%. It’s an easy upgrade that pays for itself through steady savings on your monthly electric bill. ◉ Reliable & Long-Lasting: These lights stay bright for over 50,000 hours. You can enjoy a consistent performance for years without the need for frequent bulb changes or extra work. ◉ Full Court Potential: Clear visibility turns a standard court into a top-tier venue. It opens doors for evening leagues and weekend events, increasing the overall value of your facility. ◉ A Better Community Space: Bright, even light makes the court more inviting. It creates a welcoming local hub where people want to gather and stay active. |
|
FAQ
1. How do LED basketball court lights compare to old metal halide bulbs? The difference is huge. LED basketball court lights give you full brightness the second you flip the switch—no warm-up time needed. Plus, they use about 70% less electricity, so you get a professional look without the massive power bill.
2. How many LED basketball court lights do I need for a standard half-court? For a half-court, 2 to 4 high-quality LED basketball court lights are usually enough. Placing them at the right height ensures the light covers the key and the three-point line evenly.
3. Will these LED basketball court lights blind the players during a layup? Not if you choose the right design. Look for LED basketball court lights with "asymmetric optics" or "forward throw" lenses. These push the light down onto the floor rather than into the shooter's eyes.
4. Are LED basketball court lights weatherproof? Yes, they have to be. Always check for an IP65 or IP66 rating. This means your LED basketball court lights can handle heavy rain, snow, and dust year-round without any performance drops.
5. How long will a set of LED basketball court lights actually last? You can expect over 50,000 hours of light. If you play every night for a few hours, your LED basketball court lights will likely last 20 to 30 years before you even think about a replacement.
6. What color of light is best for LED basketball court lights? Most players prefer a "Cool White" (around 5000K). This color of LED basketball court lights mimics daylight, which helps with reaction time and makes the ball easier to track against the backboard.
7. Is there much maintenance involved with LED basketball court lights? Almost zero. Unlike old systems where bulbs burn out or buzz, LED basketball court lights are solid-state. Once they are up, you can pretty much forget about them and just focus on your game.
8. Do LED basketball court lights work well in cold climates? They actually love the cold! LEDs run more efficiently when it’s chilly, so your LED basketball court lights will stay bright and reliable even in the middle of winter. |
High mast light refers to poles typically 20m (65ft) or taller. It is widely used in airports, seaports, highways, stadiums, and logistics hubs to provide uniform illumination over a vast area.
High mast poles are designed for large-area outdoor lighting, and their height usually depends on the size of the space that needs to be illuminated.
It depends on the mounting height and required lux levels. Generally, for a 25-30m pole, high-power LED floodlights ranging from 400W to 1000W are recommended.
We use high-strength carbon steel such as Q235B or Q345B, bent into polygonal shapes (usually 12 or 16 sides) and hot-dip galvanized both internally and externally.
Raising & Lowering systems feature an electric winch to lower the light ring to ground level for maintenance. Fixed systems require a bucket truck or ladders for servicing.
It consists of an electric winch, stainless steel wire ropes, pulleys, and an automatic latching mechanism. Once reaching the top, the ring locks mechanically to relieve tension from the ropes.
No. Our systems feature an automatic mechanical latching system and safety brakes to ensure the ring stays secure even without rope tension when in the locked position.
Our structural designs are based on local wind data. Standard designs withstand winds up to 160km/h (45m/s), with reinforced options for hurricane-prone regions.
Yes. Each pole is equipped with a lightning rod at the top and dedicated grounding bolts to connect to the foundation grounding system.
We use professional asymmetrical optical lenses (such as Type IV or Type V) to ensure uniformity over large areas and minimize glare.
Through shields and precise light distribution design, we confine excess light to the target area, reducing interference for the surrounding environment and drivers.
A concrete foundation must be poured based on pole height and soil conditions. We provide detailed foundation drawings and anchor bolt cages.
In standard outdoor environments, hot-dip galvanizing provides rust protection for over 25-30 years without requiring additional painting.
Yes. Due to height limits, poles over 20m are typically split into 2-3 telescopic sections for convenient shipping in 40ft containers.
No. Sections are joined via overlap (telescopic fit) using gravity or hydraulic force. This mechanical joint is more flexible and fatigue-resistant than welding.
Yes. Our professional lighting design team provides free Dialux simulation reports based on your site’s CAD drawings to optimize lighting layouts.
Yes, we have extensive project references in the Middle East, Southeast Asia, and South Africa. We can provide photos and technical parameters upon request.
We typically offer a 10-year warranty on the pole structure and a 5-year warranty on the LED fixtures and lifting systems.
Yes. Our light rings can be customized with brackets to accommodate CCTV cameras or other security sensing devices.
Q345B has higher yield strength, allowing taller, slimmer poles to remain safe while reducing weight and improving wind performance.
EPA refers to the Effective Projected Area of the pole and fixtures under wind pressure. It is a critical parameter for calculating structural safety.
Technically yes, but due to high power consumption, very large solar arrays and battery banks are required. We typically recommend grid-tied or hybrid systems.
We use high-quality stainless steel or plastic-coated wire ropes and recommend regular greasing during annual inspections.
Yes. With intelligent control systems, you can remotely adjust brightness and scheduling to maximize energy savings.
We perform Non-Destructive Testing (NDT), such as ultrasonic testing, to ensure all critical load-bearing welds are free of cracks or porosity.
