Best-Selling Street Lights
|
|
|

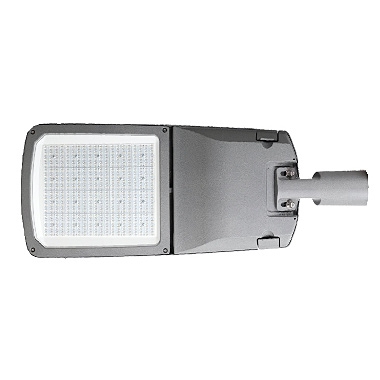

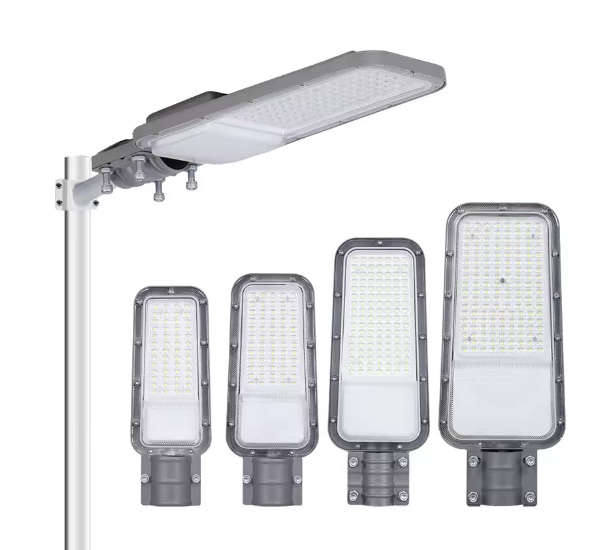

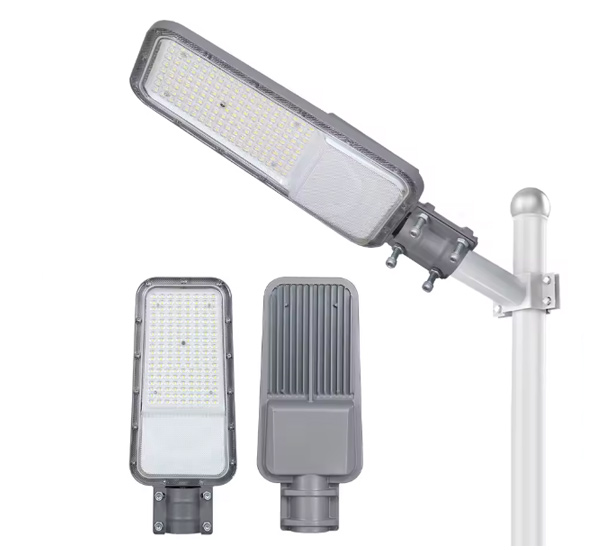

LED Street Light–H Series Engineered with aviation-grade aluminum for superior heat dissipation and high-strength tempered glass for maximum durability. Precision optical lenses ensure accurate light distribution with efficiency up to 130lm/W. Available in 100W, 150W, and 200W models, featuring IP66 protection, >94% driver efficiency, and a 5-year warranty.

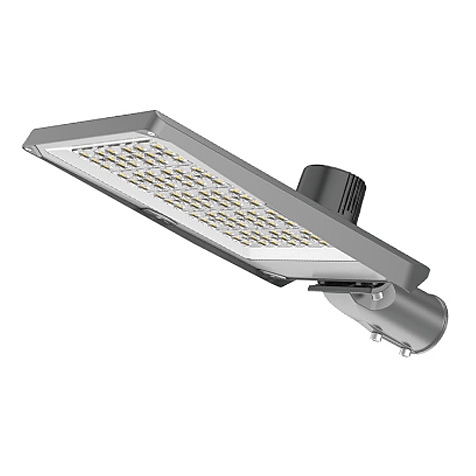

| LED Street Light–J Series Featuring a durable aluminum shell for superior heat dissipation and a ±15° adjustable lamp post for flexible installation. Powered by Philips SMD 3030/5050 LEDs with a lifespan of 100,000+ switches and THD <10%. Available in 30W to 240W models with IP65 rating, multiple light distributions, and a 5-year warranty.

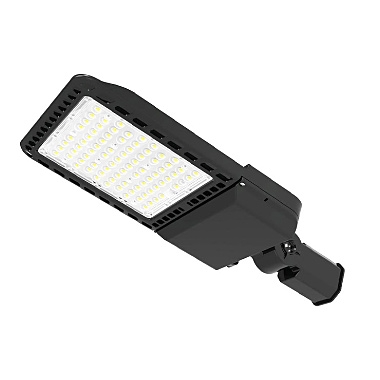

| LED Street Light–Y Series The luminous efficiency reaches up to 170lm/W, with energy savings exceeding 50%. It supports wide voltage input range of AC100-277V, with IP65 waterproof and dustproof performance, and is suitable for extreme environments of -40℃ to 50℃.The ideal cost-effective and reliable lighting solution for streets, pathways, and public spaces.
|

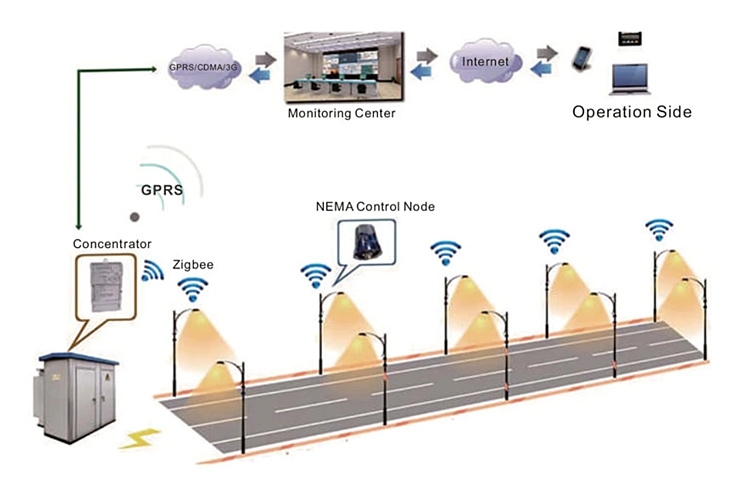

| Intelligent LED street lighting system We provide a complete intelligent street lighting solution consisting of management software, a concentrator, and terminal controllers. The concentrator is installed in the distribution cabinet, while terminal controllers are placed at each light point. Communication occurs via GPRS/CDMA/WCDMA or wired networks, and between devices through ZIGBEE or PLC. The system enables remote control of each light for on/off switching, dimming, and energy monitoring, helping reduce power usage and detect failures. It can also collect data like local illumination and temperature for real-time monitoring. |

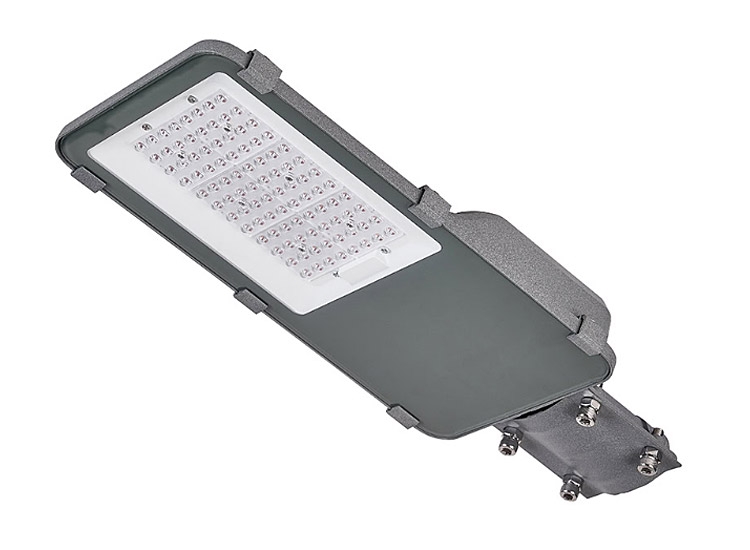

LED Street Lights Datasheet
Model No. | JY-A-100 | JY-A-150 | JY-A-200 |
Power | 100W | 150W | 200W |
Material | Die casting aluminum | ||
Light efficiency | 130 lm/w | ||
Voltage | AC100V-200V 50/60HZ | ||
LEDs | 3030 LEDs | ||
Beam angle | 80x150°/120° | ||
PF | >0.95 | ||
LED Lifespan | >50000 hours | ||
IP | IP66 | ||
CRI | >80 | ||
CCT | 3000K / 4500K / 5700K | ||
Working Temp | -30°C ~ +55°C | ||
Dimensions (mm) | 48922985 | 58624985 | 61628985 |
Warranty | 5 Years | ||

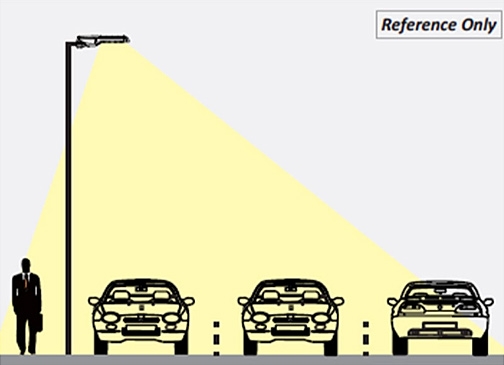

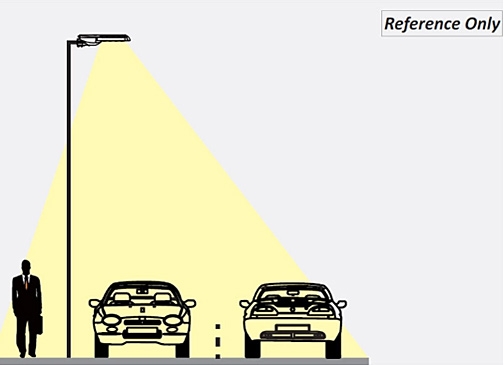

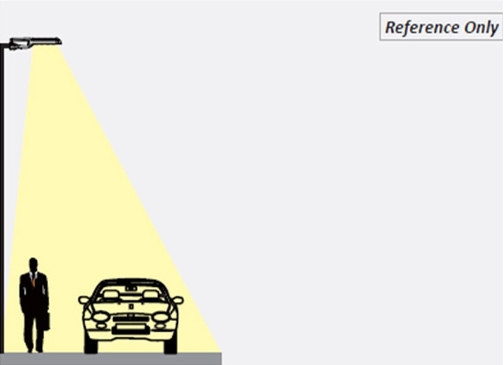

Multiple light distribution options
80°×150° asymmetric light distribution, multiple light types available (from Class I to Class V),
suitable for various road lighting requirements - applicable from sidewalks, residential areas to highways, large parking lots.
|
|
For sidewalks, paths and shoulders lighting | For wider sidewalks, ramps, entrance roadways, etc. |
|
|

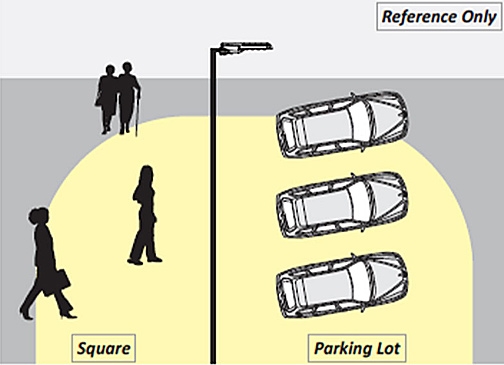

For roadways, large parking areas and other area lighting | Be applicable to parking lots, center islands, intersections,and large commercial parking lots, etc. |

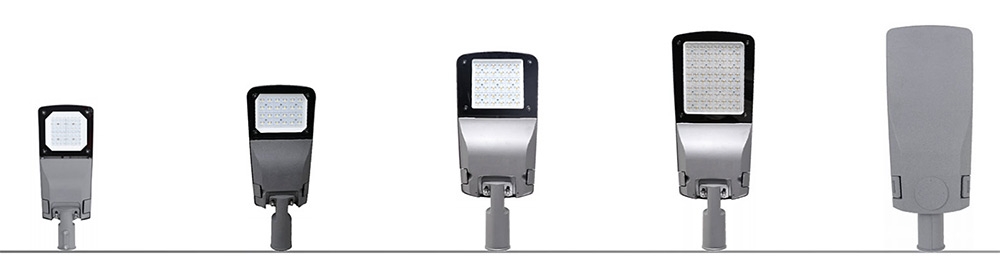

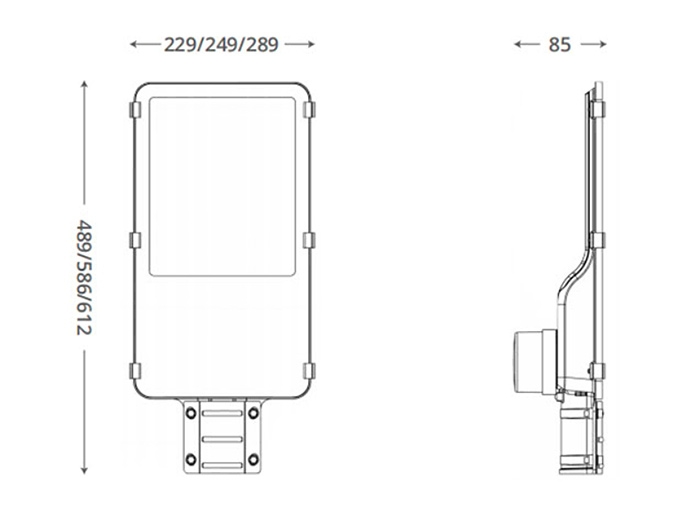

Sizes of LED street light
|
◉ Ultra-high light efficiency and versatile power options - up to 180Lm/W with 30W-300W range for tailored illumination ◉ Robust durability and harsh environment resistance - IP65/IP66 protection, aviation-grade aluminum, and 5-year warranty ◉ Smart control and flexible installation - support for Zigbee/Cat1/NFC, photocell, and SKD standard assembly ◉ Precise light distribution and wide application - adjustable beam angles (45°-150°) for roads, parking lots, and urban spaces |
LED Street Lights Feature Box
|
|
|
|
180Lm/W High Efficiency Delivers up to 180Lm/W luminous efficacy, ensuring energy-saving and bright illumination for outdoor areas. | IP65/IP66 Protection Sealed design with dustproof and waterproof performance, suitable for harsh environments. | Multiple Power Options Available in 30W-300W to adapt to different lighting area sizes and brightness requirements. | Smart Control Enables NFC offline programming, Zigbee/Cat1 control, and photocell function for intelligent management. |
|
|
|
|
Precise Beam Angles Offers various beam angles (45°, 60°, 90°, 80°×150°, etc.) for targeted light distribution. | Durable Construction Aviation-grade aluminum housing and tempered glass cover for efficient heat dissipation and long lifespan. | Wide Temperature Adaptability Operates in extreme ambient temperatures from -40°C to 50°C, suitable for global outdoor environments. | 5 Years Warranty Long-term quality assurance, minimizing maintenance costs and ensuring reliability. |

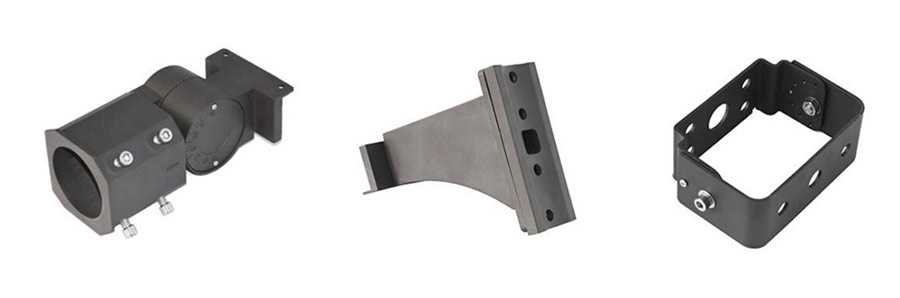

3 Kinds of Installation Methods
Provide three installation methods, which can meet the requirements of various lamp posts and supports. The installation
is convenient and stable.The compact design reduces visual presence and integrates harmoniously with the urban environment.

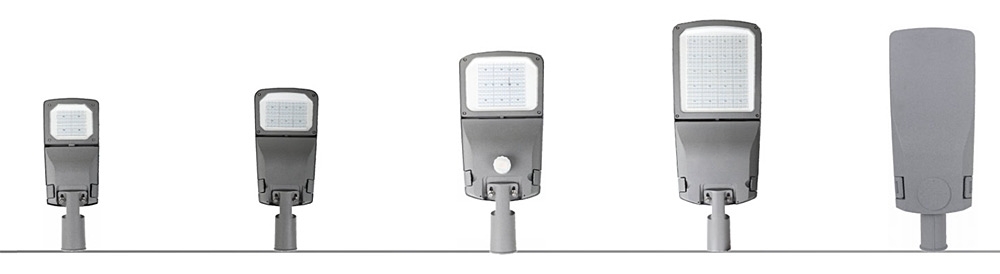

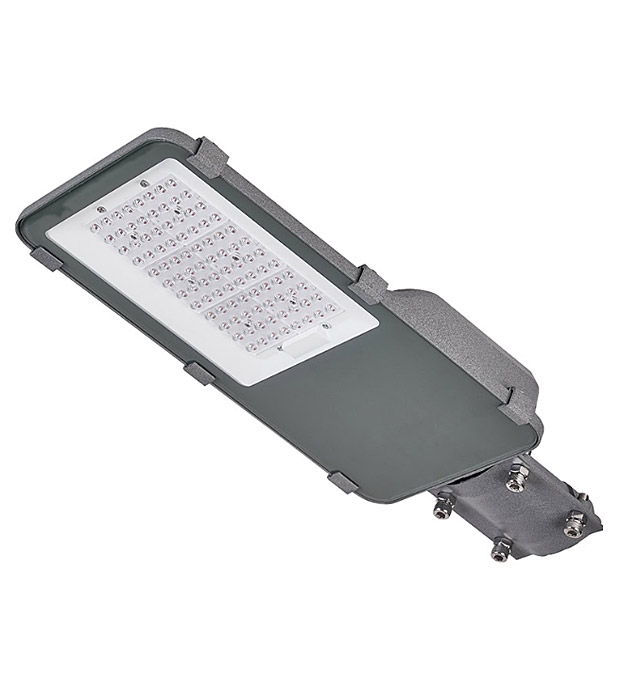

Uniform Light Efficiency LED Street Light
The light source is equipped with a Philips Lumileds chip, with a luminous efficacy as high as 150lm/W.
Three types of lenses, 30°, 60° and 90°, are available for precise control of light distribution

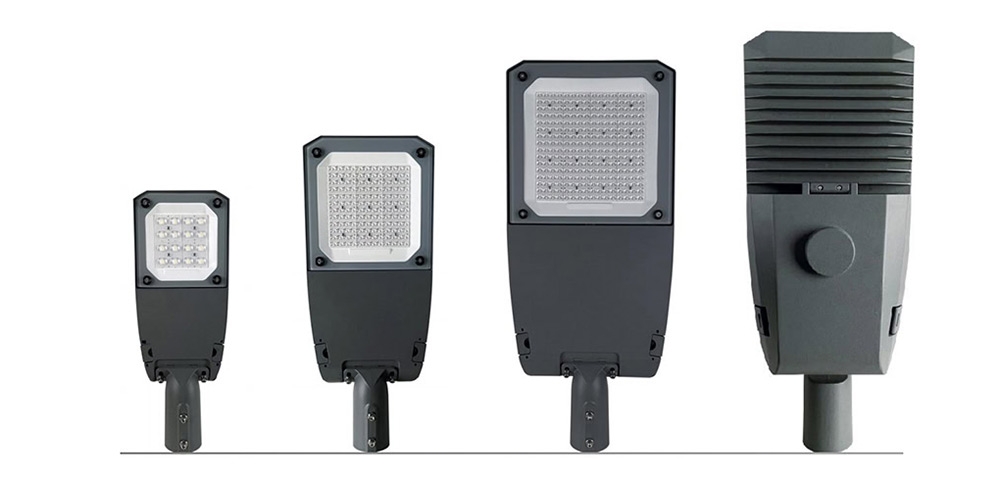

Intelligent IoT, Remote Efficient Management
With an internal LoRa communication module, it enables wide coverage by a single gateway and supports precise remote control
and real-time status monitoring for each street lamp.Users can set dimming strategies, conduct power statistics,
receive automatic fault alarms and perform maintenance management through the platform,
significantly enhancing management efficiency and reducing maintenance costs.

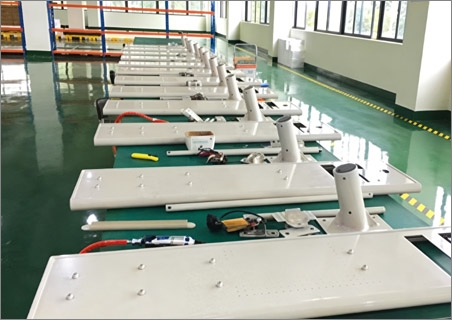

PRODUCT PRODUCTION WORKSHOP
Direct Manufacturer Advantage: Partnering with Jieyao means working directly with our Yangzhou-based factory, not a middleman.
We operate full in-house production lines for poles, LED luminaires, and solar systems.
Our facility features CNC cutting, automatic welding, hot-dip galvanizing, and photometric testing labs.
This vertical integration ensures structural integrity, high corrosion resistance, and stable lead times for high-volume infrastructure projects.
|
|
|
(Battery Assembly Workshop)Our facility for building high-capacity lithium battery packs to ensure long-term energy storage. | (Solar Panel Assembly Workshop)Where we manufacture high-efficiency silicon panels to maximize solar energy harvesting. | (Luminaire Assembly Workshop)The final production line where we integrate all components into a rugged aluminum housing. |
|
|
|

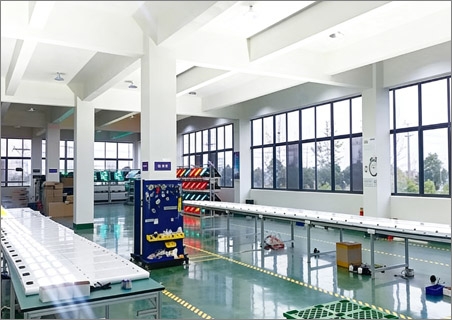

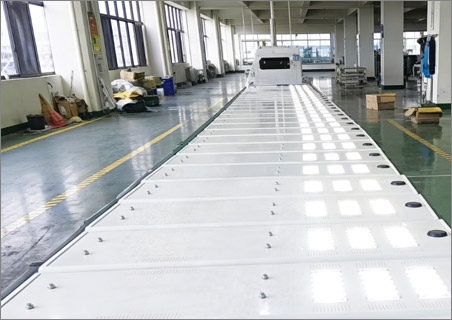

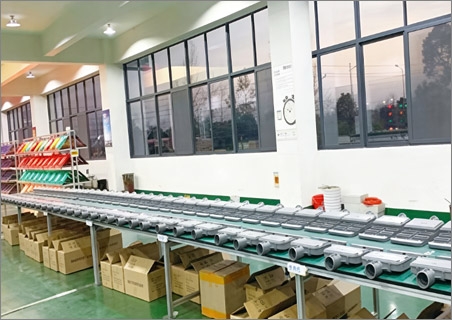

(LED Light Source Assembly Workshop)A precision environment dedicated to mounting high-lumen LED chips for optimal light distribution. | (Electrostatic Spraying Equipment) : Utilizes advanced electrostatic technology to apply weather-resistant polymer coatings, ensuring superior adhesion and anti-corrosion. | (Welding Workshop) : Specialized station for heavy-duty welding of base flanges, service doors, and structural reinforcements. |
|
|
|

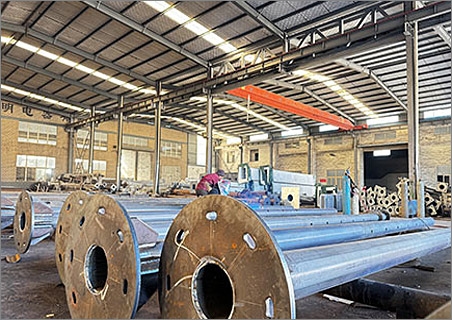

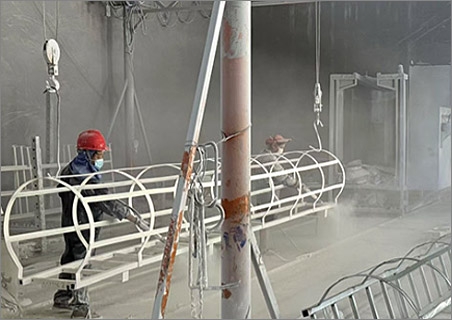

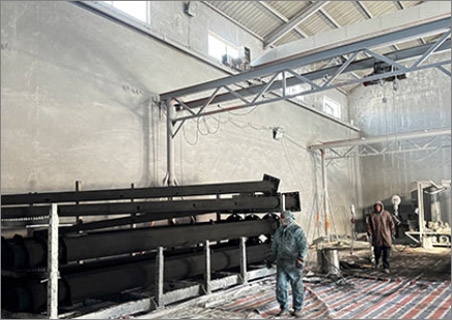

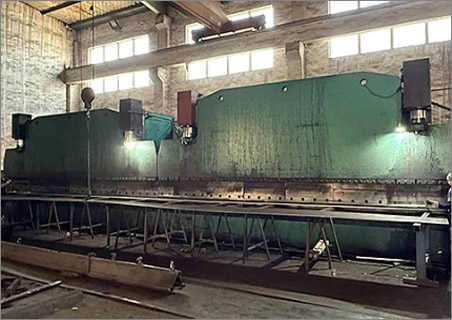

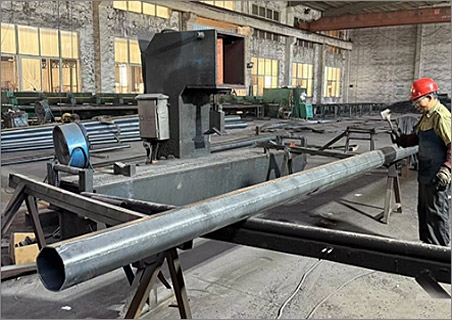

(1000T Plate Rolling Machine): Converts raw steel sheets into high-strength round or octagonal poles with precision geometry. | (Powder Coating WorkshopProcess):Electrostatic Polymer Fusion.This ensures 25+ years of superior anti-corrosion and UV resistance for every pole. | (Pole Straightening Machine):Calibrates each shaft to eliminate deviations, ensuring 100% verticality and architectural precision. |
Certifications
Compliance & Standards: Our products are engineered and tested to meet international safety and performance requirements.
From CE and RoHS for electronic safety to specialized ISO manufacturing standards,
Jieyao Lighting ensures every component—from LED drivers to steel poles—is fully certified for global infrastructure tenders.
|
|
|
GB/T 45001-2020/ISO 45001:2018 | LED lamps CE | GB/T 19001-2016/ISO 9001:2015 |
|
|
|
GB/T 24001-2016/ISO 14001:2015 | CCC Certification | Solar street light CE |
|
|
|
Trademark Registration Certificate | WEEE Certificate | WEEE Certificate |

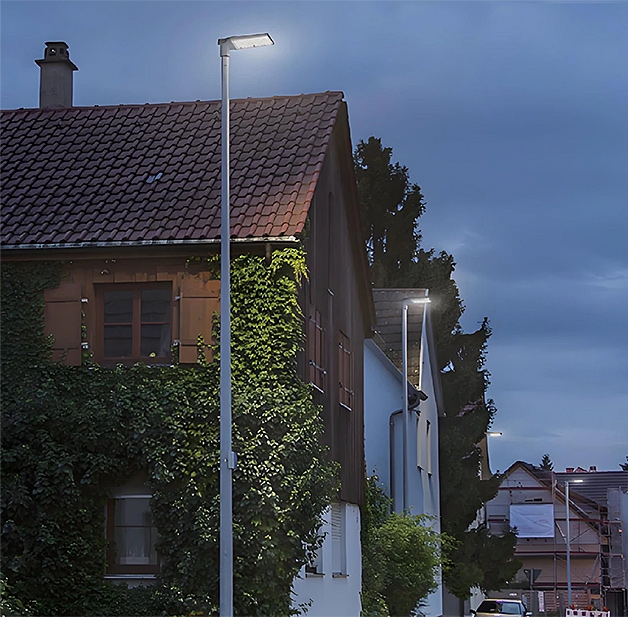

Outdoor Street Lights Applications
LED street lights are widely used in outdoor spaces requiring reliable and efficient illumination,
providing safe and uniform lighting for various public and traffic areas:

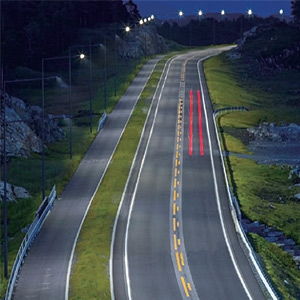

| Municipal Highways & Expressways Driver Safety on High-Speed Roads Jieyao’s high-wattage LED street light series cuts through darkness on high-speed routes. By using precision-molded lenses, we deliver the uniform, zero-glare visibility that drivers need for split-second reactions, effectively lowering night-time accident risks on multi-lane systems. |

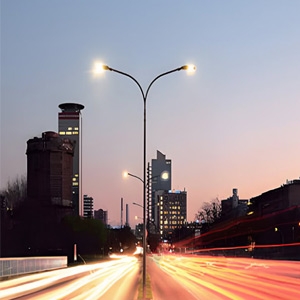

| Urban Main Streets & Avenues Smart City Integration & True-Color Optics Built for digital urban grids, our commercial LED street light hardware features a high CRI (>80) to keep city colors natural after dark. These units sync with IoT controllers for auto-dimming, helping city managers hit aggressive energy-saving targets without compromising pedestrian security. |

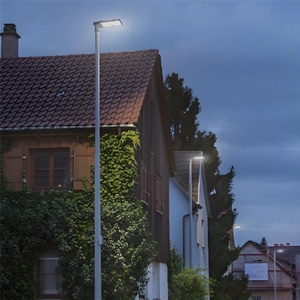

| Residential Neighborhoods & Sidewalks Dark Sky Compliance for Community Comfort We focus on resident well-being with LED street light optics that meet strict Dark Sky standards. By locking light onto the pavement and stopping upward spill, we protect the neighborhood's night-time peace and local ecosystems from light pollution. |

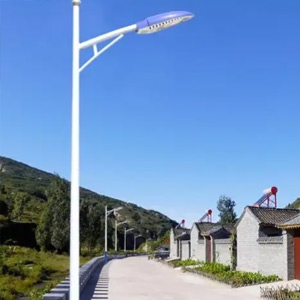

| Rural Roads & Remote Pathways Off-Grid Power Where It Matters Most For areas lacking a stable power grid, our solar LED street light models offer a bypass to expensive infrastructure. As a direct manufacturer, we’ve ruggedized these units to skip the cost of trenching, using high-density batteries to keep the lights on even through a week of rain. |

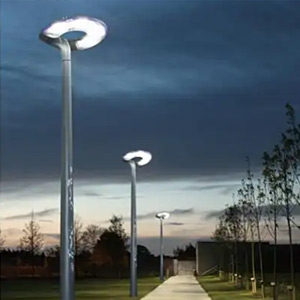

| Public Parks & Recreational Plazas Vandal-Proof Gear for High-Traffic Areas Public spaces need an LED street light that can take a hit. Our E-Series uses toughened tempered glass and a rock-solid die-cast aluminum chassis, making it the go-to choice for durability in busy municipal parks and university campuses. |
| Commercial Parking Lots Slashing Operating Costs for Businesses A bright, dependable LED street light setup is the best deterrent for parking lot crime. Jieyao’s wide-beam distribution covers more ground with fewer poles, which significantly drops the upfront installation and long-term power bills for malls and office parks. |

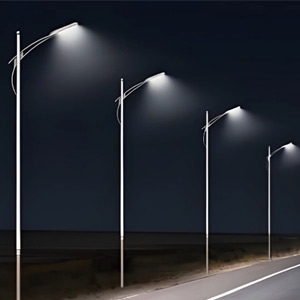

| Coastal & High-Corrosion Environments Salt-Air Protection for Seaside Infrastructure Standard fixtures rot in salty air, but our specialized anti-corrosion LED street light is built for the coast. We apply a heavy-duty protective coating to every component, ensuring the structure stays solid and functional in humid docks and storm-heavy regions. |
LED street light FAQ
1. How long does a modern LED street light actually last? Most of our fixtures are rated for over 50,000 hours. In real-world terms, if the light runs for 12 hours a night, a Jieyao LED street light will serve your community for over 11 years without needing a bulb change.
2. Can these lights handle extreme weather like hurricanes or heavy snow? Yes. We build every LED street light with an IP66 waterproof rating and high-strength tempered glass. The die-cast aluminum body is specifically designed to stay functional in temperatures ranging from -30°C to +55°C.
3. What is the main benefit of switching from HPS (sodium) to LED? Energy savings is the biggest win. A Jieyao LED street light typically cuts electricity bills by 60% to 70% while providing much clearer, whiter light that makes roads safer for drivers.
4. Do your street lights come with a warranty? We stand behind our engineering with a 5-year comprehensive warranty. If any component of your LED street light fails under normal use, our team provides the necessary support or replacements to keep your project shining.
5. Is it difficult to install the LED street light on existing poles? Not at all. We designed the LED street light to be "plug-and-play" compatible with most standard lamp posts. The mounting bracket is adjustable, making the retrofit process fast and simple for your local crew.
6. Do you offer "Smart" options like auto-dimming? Yes. We can equip your LED street light order with NEMA sockets or photocells. This allows the lights to automatically turn on at dusk and off at dawn, or even dim during late-night hours to save more power.
7. How do I choose the right wattage (100W, 150W, or 200W)? It depends on your pole height. Generally, a 100W LED street light is perfect for 6-8 meter poles, while 200W models are better for 10-12 meter highway poles. We can provide a free DIALux simulation to confirm.
8. Are these lights "Dark Sky" friendly? Protecting the night sky is important to us. Our precision lenses direct the LED street light beam downward, preventing light from leaking into the atmosphere or into residents' windows.
9. What is CRI and why does it matter for roads? CRI (Color Rendering Index) measures how "real" colors look under the light. Our LED street light has a CRI >80, which helps drivers and security cameras identify vehicle colors and pedestrians much more accurately.
10. Can I get a sample before placing a bulk municipal order? Absolutely. We encourage project managers to test a sample LED street light first. This lets you verify the brightness, build quality, and ease of installation before committing to a full container.
11. How do you prevent the LEDs from overheating in summer? Heat is the enemy of electronics. Every Jieyao LED street light features aviation-grade aluminum fins that act as a massive heat sink, pulling heat away from the chips to ensure the light doesn't dim over time.
12. Do you ship your lighting products internationally? As an experienced manufacturer, we ship our LED street light inventory to over 50 countries. We handle the professional export packaging to ensure your order arrives in perfect condition, no matter where the project is located. |
Since 2006, Jieyao Lighting has evolved from a specialized structural workshop in Gaoyou into a National High-Tech Enterprise and a trusted partner for State Grid and China Railway. Backed by 18 years of expertise, a 10,000㎡ ISO-certified facility, and 80M+ RMB in assets, we deliver precision-engineered LED Street Lights to 80+ countries.
Our standard efficiency is 140-160 lm/W. Our premium series with high-spec chips can exceed 180 lm/W, delivering higher brightness with lower power consumption.
3000K (Warm White) provides better fog penetration, while 4000K-5000K (Natural White) offers a visual experience closest to daylight, making it the top choice for most municipal projects.
Heat is the biggest threat to lifespan. We treat the entire die-cast aluminum housing as a "heat sink" with integrated cooling fins. This pulls heat away from the chips and releases it instantly, preventing dimming and ensuring a 10-year life for your LED Street Lights, even in tropical heat.
Our LED street lights feature an IP66 rating (completely dust and waterproof) and an IK08/IK10 impact rating, ensuring durability in harsh outdoor environments.
Yes. We provide 10kV Surge Protection Devices (SPD) as standard, with options to upgrade to 20kV for regions with unstable power grids.
We select top-tier brands like Meanwell, Inventronics, and Philips to ensure a service life of over 50,000 hours.
Our specially powder-coated fixtures can pass 500-1000 hours of salt spray testing, making them ideal for coastal areas with high salt mist.
No. Our circuit design combines series and parallel connections, so a single chip failure will not affect the operation of the other LEDs.
Yes, LED lighting can save 50%-70% in energy costs, offers better color rendering, and has a lifespan 3-5 times longer than HPS.
We install breather valves (GORE vents) to balance pressure and expel moisture, preventing condensation from damaging electronic components.
Internal fasteners and screws are typically SS304/316, while the main bracket is die-cast aluminum or hot-dip galvanized steel for combined strength and corrosion resistance.
Our fixtures use heat-resistant drivers and optimized cooling structures to operate long-term at 55°C without power de-rating.
Yes, the finish and color of the LED street light housing are fully customizable to meet specific project aesthetics or branding requirements.
