Round Tapered Galvanized Steel Light Pole for Road and Area Lighting

A controlled circular taper gives a clean roadway silhouette while the shaft, arm, luminaire and base remain a coordinated structural assembly.

What Is a Round Tapered Steel Light Pole?

A round tapered steel light pole is a hollow circular shaft whose outside diameter reduces gradually from the lower section toward the top. The smooth profile distinguishes it from a polygonal tapered pole, whose flat faces and formed corners remain visible, and from a straight round tube, whose diameter stays constant. The taper can improve visual proportion and place material where structural demand is generally greater, but the actual shaft schedule still comes from the project design.

Jieyao supplies each project-configured round tapered steel light pole for roadway, area and site lighting. A complete pole mark connects the shaft geometry with its arm or post-top interface, luminaire data, wind inputs, base or embedment arrangement, access opening, cable route, surface protection and documentation. It is this coordinated assembly—not a diameter or height taken in isolation—that buyers should specify and compare.

Where Round Tapered Lighting Poles Are Commonly Used

A round tapered light pole can suit municipal streets, residential roads, industrial parks, logistics yards, campuses, commercial access roads, parking areas and landscaped public routes. Its continuous profile provides a restrained appearance that works with contemporary LED luminaires and does not introduce strong facet lines. Single-side arms are common beside carriageways, twin arms may serve medians, and post-top connections can support selected area-lighting or pedestrian arrangements.

Application alone does not determine the pole. A quiet access road, a wide arterial and a freight yard can place very different loads on visually similar shafts. Record road width, pole setback, mounting height, spacing, luminaire optic, outreach, local wind basis, terrain, maintenance access and foundation constraints for each zone. If one project includes several zones, use clear pole marks rather than assuming one round lamp post is suitable everywhere.

Why the Circular Taper Matters

The circular section presents a consistent profile from different viewing angles. That can make a row of poles appear calm and uniform along a curved road or open site. A gradual taper reduces the visual mass toward the luminaire while maintaining a larger lower section where base moments and access provisions must be accommodated. It also avoids the changing highlight pattern created by polygonal faces.

These are design characteristics, not automatic performance claims. The taper rate, diameters, length, wall schedule and openings need to work together. A very slender visual concept may not accept the proposed arm, fixture area or door without adjustment. Conversely, increasing only the base diameter does not prove that welds, base plate, anchors or foundation are adequate. Review the shaft as part of the complete load path.

Round Tapered vs Polygonal Tapered Poles

A round tapered pole has a continuous curved surface. A polygonal tapered pole is formed with a defined number of flat sides and longitudinal bends. Both can be engineered for road lighting, and neither shape is universally superior. The choice can reflect architectural preference, local practice, fabrication route, connection details, available material and project economics.

Compare offers using the approved cross-section rather than the word “tapered” alone. A drawing should identify whether dimensions are outside diameter, across flats or across corners. This distinction affects base plates, decorative covers, doors, arms and replacement compatibility. If a tender permits both shapes, require each supplier to state the proposed geometry and provide the corresponding structural and interface information.

Round Tapered vs Straight Round Poles

A straight round pole uses a constant outside diameter over its main shaft length. It may be appropriate for shorter or visually specific applications, but it is not interchangeable with a tapered shaft merely because both are circular. The base diameter, top diameter, section properties, access details, fabrication method and arm connection can differ.

A tapered profile often gives a lighter visual line at the top while preserving room near the base for structural and electrical details. A straight tube can simplify some sleeve or clamp interfaces, yet may appear heavier or require a different material schedule. The responsible designer should choose from calculations, supply conditions, visual intent and long-term replacement needs.

Select Height Through the Photometric Layout

Mounting height affects spacing, uniformity, glare, fixture output, pole count, wind loading, visual scale and maintenance access. It is not selected from roadway width alone. The lighting designer should model the exact luminaire and optic at the proposed height, setback, outreach and tilt using the project surface data and maintenance assumptions.

Define whether the quoted dimension refers to shaft length above the base, luminaire mounting height or total height including arm rise. This small clarification prevents major drawing and installation errors. Show the reference on the pole elevation and in the schedule. For height-specific procurement, compare the 8m galvanized street light pole, 10m single-arm pole, 10m double-arm pole and 12m galvanized highway pole packages without treating any listed height as a universal solution.

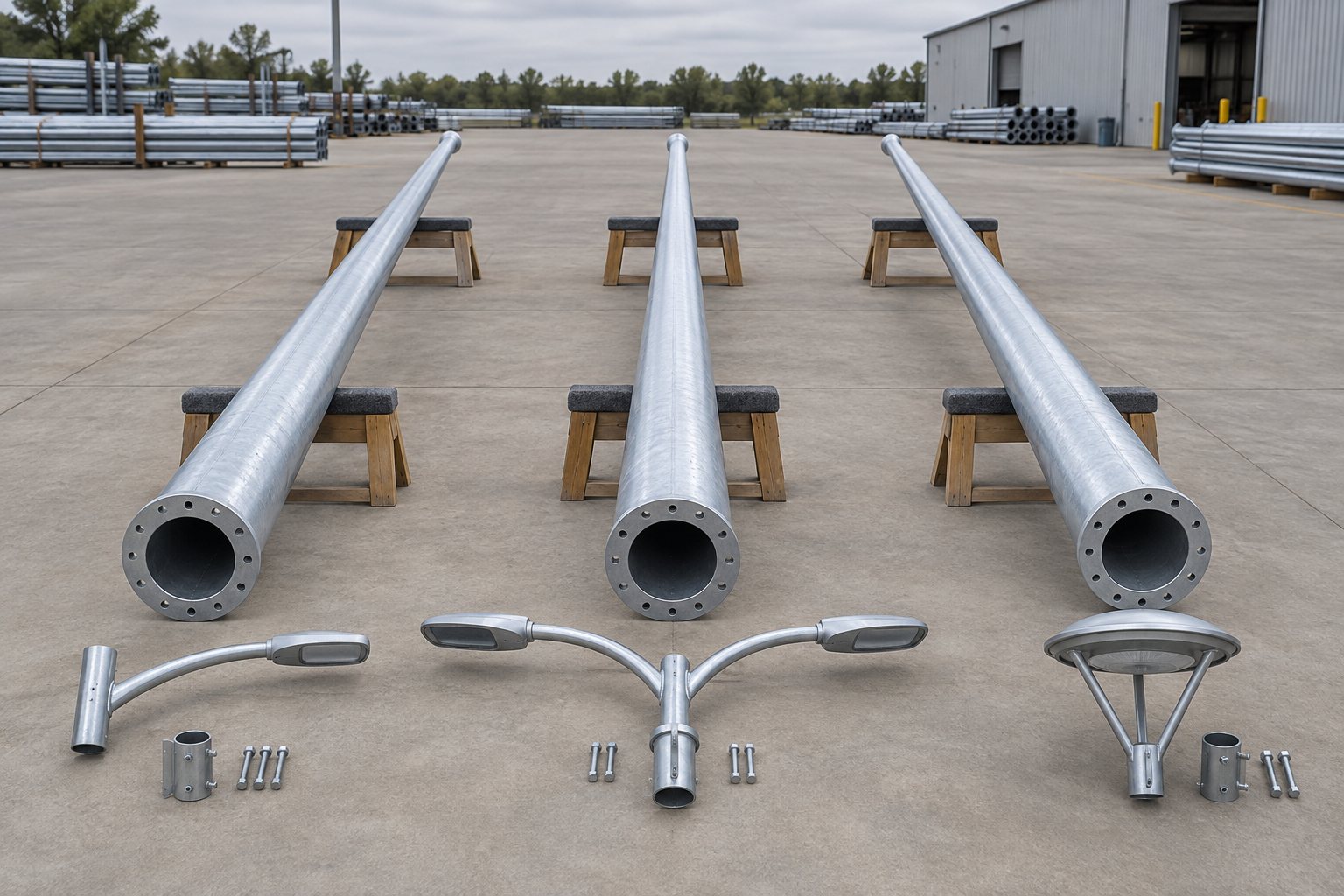

Choose Single-Arm, Twin-Arm or Post-Top Mounting

A single curved or straight side arm can position one roadway luminaire over a lane from a verge-mounted pole. Twin arms can serve a median or two-sided route where the photometric plan supports the arrangement. A post-top spigot connection can suit a compact area-lighting fixture or a restrained pedestrian application. The correct choice begins with the lighting model and site geometry.

Arm outreach, rise, inclination, tube size, luminaire interface, mass and projected area must be declared. The arm connection transfers load into the circular shaft and provides the cable path; it is not a purely decorative fitting. Where detachable arms are used for transport, drawings should define sleeve engagement, fasteners, anti-rotation features, electrical routing and field assembly.

Related mounting options should share controlled interfaces while every pole mark retains its own approved load and geometry.

Coordinate the Luminaire Interface Before Release

Provide the luminaire model, mounting method, spigot or sleeve dimensions, insertion length, fastener arrangement, cable entry, weight, effective projected area and center of gravity. Side-entry and post-top luminaires impose different interface requirements. An adapter can solve a controlled mismatch, but improvised drilling or packing at site introduces alignment, corrosion and warranty questions.

The approved pole drawing should show the interface and orientation in enough detail for both factories to check compatibility. If the fixture supplier changes the housing or bracket, reissue the data rather than assuming the pole top remains suitable. Confirm whether tilt adjustment occurs at the luminaire, a separate adapter or the arm.

Define the Wind Basis and Complete EPA

Structural design requires the governing standard, basic wind parameter, terrain or exposure category, topographic conditions, height reference, importance or risk provisions where applicable, and all attachments. Effective projected area, often abbreviated EPA, must cover the complete luminaire and arm arrangement rather than only the fixture face visible in one photograph.

Supply mass and center-of-gravity information alongside projected area because gravity and wind effects enter the load path differently. Consider signs, cameras, control boxes, brackets, shields, solar elements and planned decorations. The pole supplier can then prepare a shaft, base and connection proposal against defined inputs instead of quoting an unsupported generic wind rating.

Configure Steel Grade, Taper and Wall Schedule Together

Steel grade is one design input, not a standalone quality label. Yield properties, available coil or plate, forming behavior, welding procedure, thickness, diameter transition, openings and connection geometry must be coordinated. A grade named in a catalogue does not establish the final wall schedule for every pole height or wind condition.

The taper should be continuous and compatible with the manufacturing route. Lower and upper diameters must provide the required section properties, room for the access opening, a practical arm interface and a buildable base connection. If the pole is sectional for transport, the lap or flange joint becomes another designed region with controlled engagement, alignment and assembly instructions.

Form a Smooth Circular Shaft

A round tapered shaft may be formed from prepared steel plate or coil into a conical shell and closed with a longitudinal seam. The forming sequence must achieve the required taper and roundness without creating a kinked, flattened or visibly helical body. Tooling, material behavior and dimensional checks support repeatability across a production batch.

The seam position can be coordinated with the access opening and arm orientation. It should remain straight and consistently located according to the approved manufacturing arrangement. Surface transitions near the base, top and door need particular attention because local fabrication features can make distortion more visible.

For buyers, a manufacturing drawing and defined inspection plan are more useful than a photograph of a forming machine. They identify which dimensions matter, where they are measured and how nonconforming shape would be resolved before galvanizing.

Control the Longitudinal Seam Weld

The longitudinal seam completes the structural shell. Joint preparation, fit-up, welding process, procedure qualification, operator qualification and inspection follow the project requirements and relevant fabrication standard. The goal is a continuous connection with acceptable profile and no unresolved defects, not merely a seam ground until it looks smooth.

Excessive grinding can reduce local thickness, while uneven heat input can affect straightness and roundness. Establish the required visual and examination scope before production. Repairs should use approved procedures and remain traceable where the contract requires records.

Roundness, taper, seam continuity and straightness are checked on supported shafts before later finishing stages.

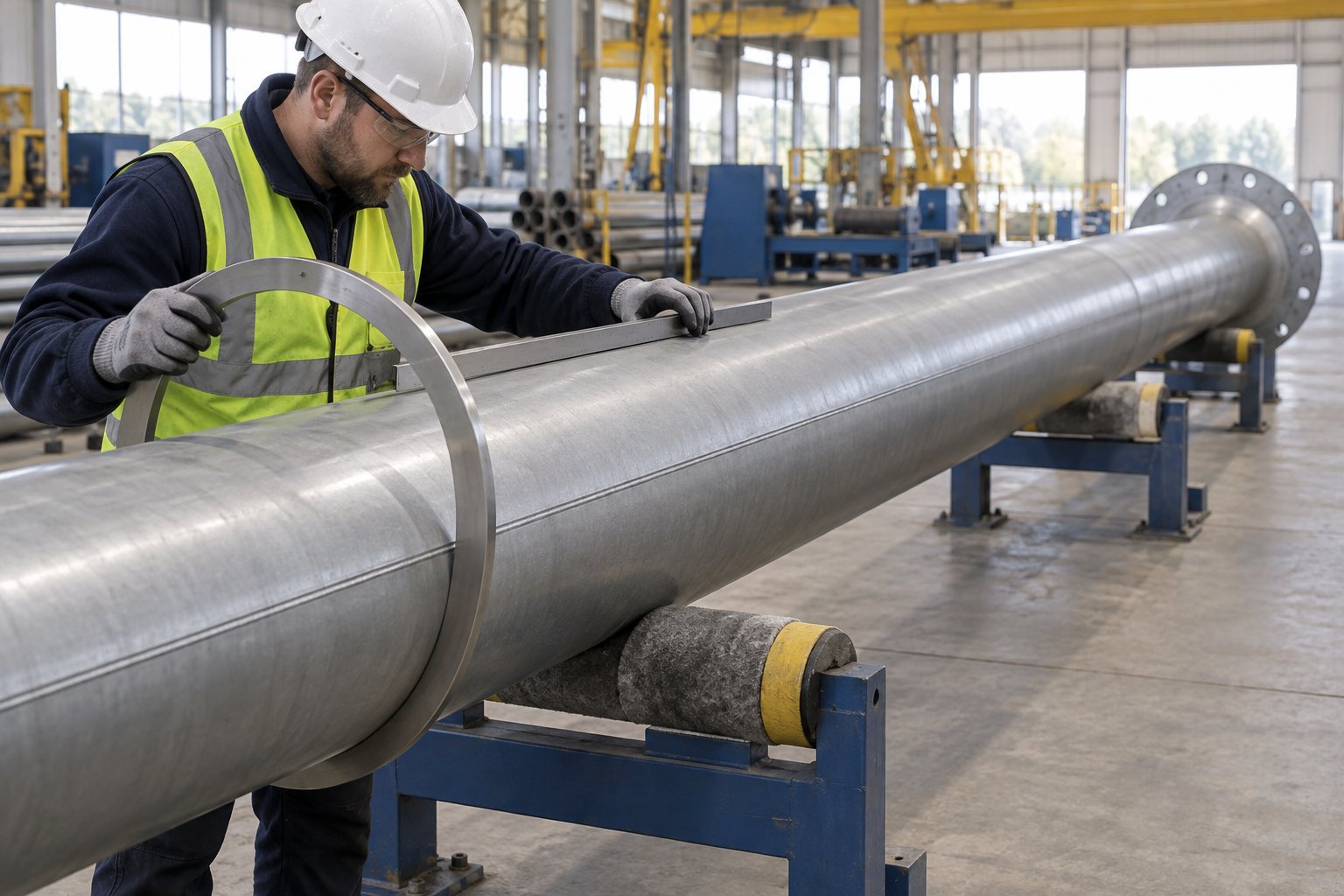

Verify Roundness, Straightness and Taper

Roundness matters where the pole meets sleeves, base covers, clamps, doors and decorative or control attachments. Straightness matters both structurally and visually across a repeated installation. Taper measurements confirm that the shaft matches the approved diameters and that mating parts will fit. The inspection plan should identify instruments, locations, tolerances and recording needs.

Support the shaft correctly while measuring it. An uneven floor or poorly placed stand can create misleading readings or damage the surface. Check at agreed sections rather than judging only from one viewing angle. For sectional poles, trial engagement can confirm alignment and overlap before finishing.

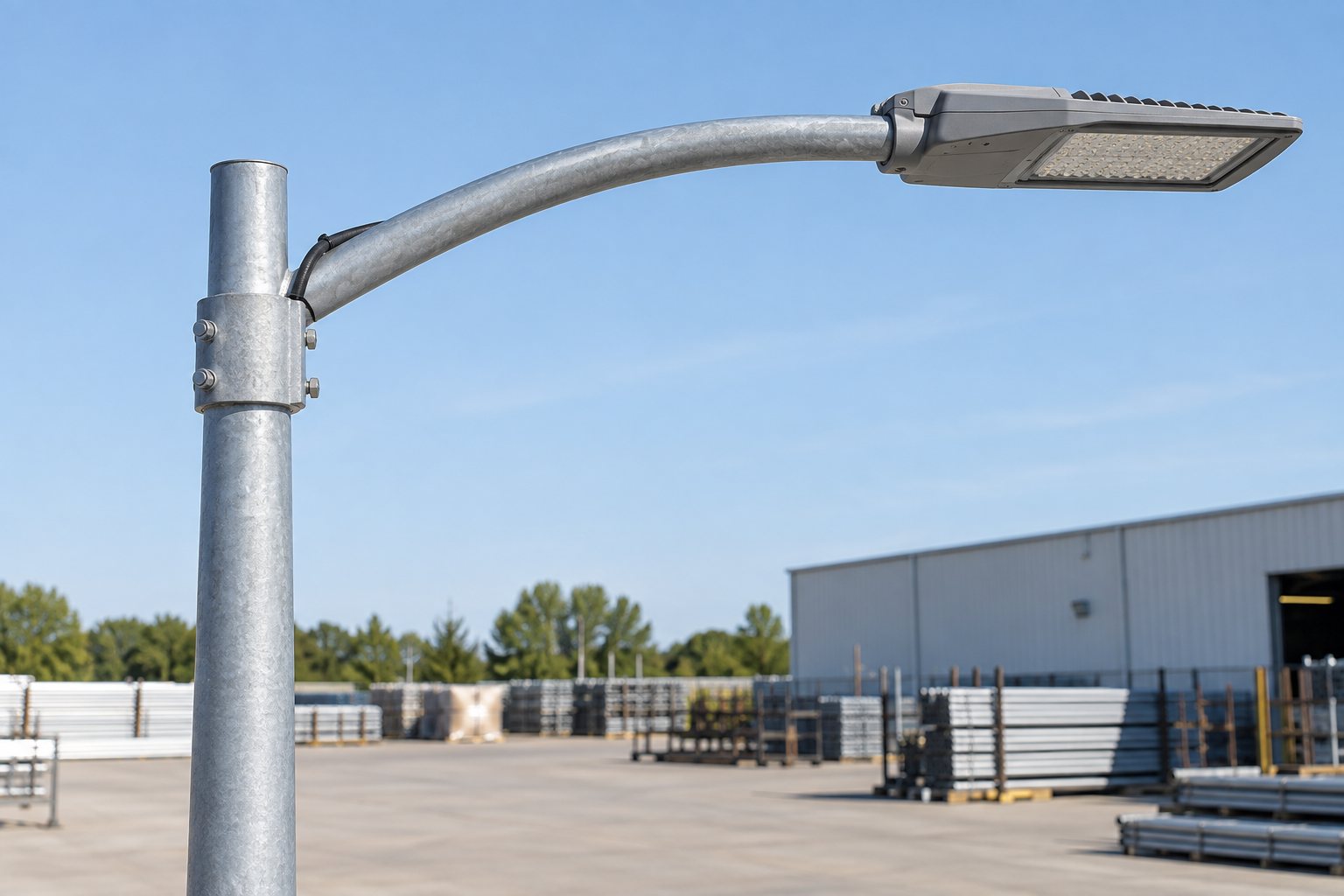

Engineer the Arm-to-Shaft Connection

The arm may connect through a top sleeve, external collar, flange, welded transition or another project-approved detail. It must carry the declared luminaire and environmental loads while holding the required orientation. The circular shaft offers a clean interface, but it also means anti-rotation and indexing must be deliberate rather than assumed.

Show insertion or engagement length, mating diameters, bolts, welds, cable opening, edge treatment and field assembly sequence. Avoid tight bends or sharp edges that could damage conductors. If the arm is removable, small hardware should be retained and identified with the pole mark for shipment.

A defined sleeve, fastener and cable path turn the arm and shaft into one controlled lighting assembly.

Use Hot-Dip Galvanizing as a Coordinated Process

Hot-dip galvanizing can provide durable protection for fabricated steel poles when the design, venting, drainage, surface preparation and process sequence are coordinated. Hollow shafts and arms need openings that allow safe processing and complete drainage. Closed pockets, overlapping plates or poorly planned reinforcement can trap liquids or interrupt coating coverage.

Complete the principal welding and approved openings before galvanizing. Repair methods for permitted site or production damage should be defined by the applicable specification. Threads, mating areas and electrical contact points may require controlled treatment so protection does not prevent assembly or earthing.

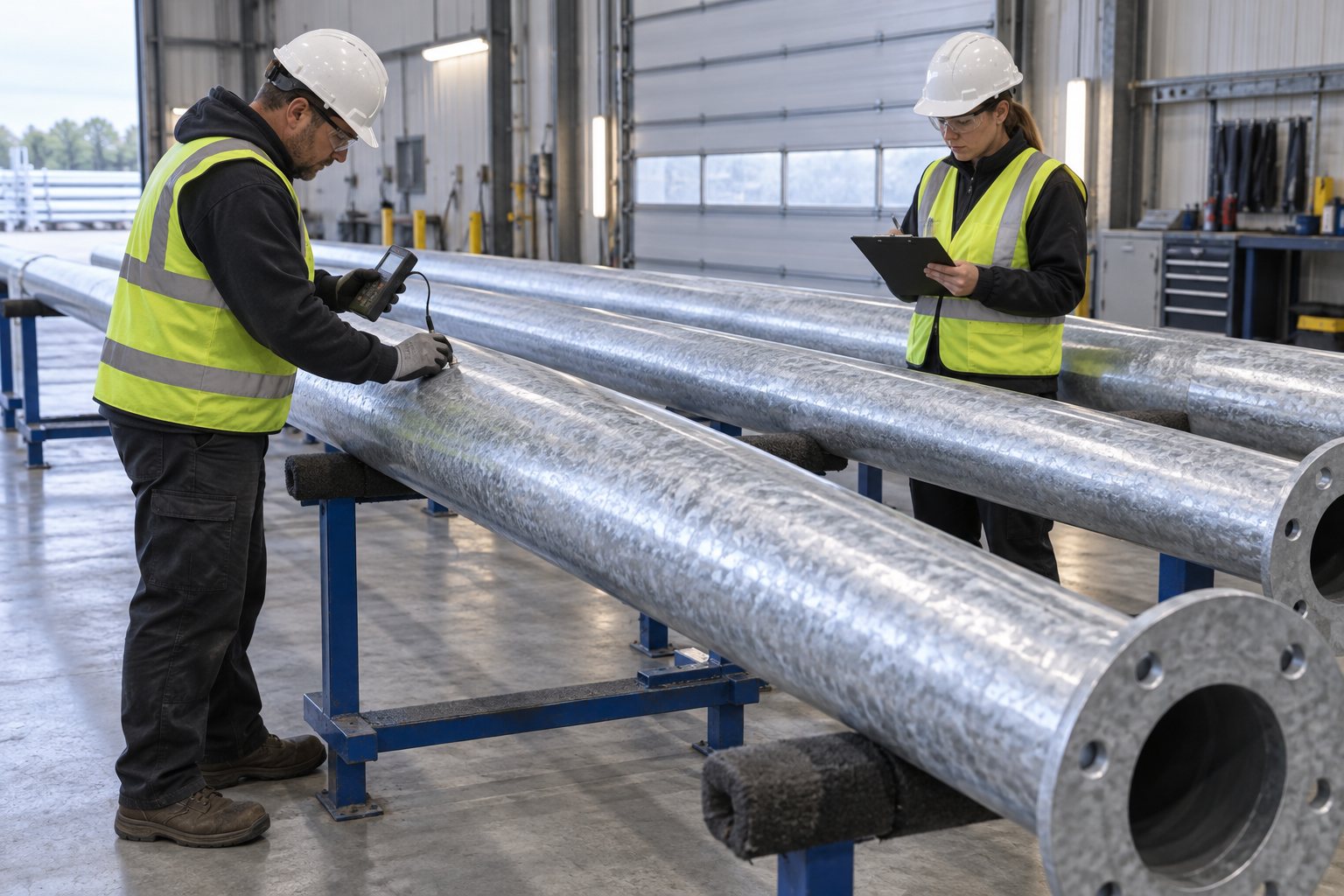

Inspect the Galvanized Surface and Critical Dimensions

Inspection can include visual condition, coating measurements at defined locations, drainage, runs or lumps that affect fit, sharp projections, threaded interfaces and repair areas. Measurements should use calibrated equipment and the sampling approach required by the contract. Results are meaningful only when connected to the identified pole batch or mark.

Galvanizing can influence fit and appearance, so recheck sleeves, doors, base covers and other mating components. Also confirm straightness where the approved quality plan requires it. Cosmetic variation in zinc appearance should be evaluated against the specification and functional needs rather than screen photographs alone.

Coating checks are tied to defined locations, calibrated instruments and traceable pole identification.

Coordinate Optional Color Coating Over Galvanizing

Some projects need a specified color, lower visual brightness or additional exposure strategy. Powder or liquid-applied coating over galvanized steel can meet those objectives when the substrate preparation, compatibility, application, curing, thickness, masking and repair procedure are defined as one system. A generic instruction to “paint after galvanizing” is not enough for technical comparison.

State the color reference, gloss or texture expectation, visible acceptance criteria and sample requirements. Protect slip-fit regions, threads, earthing contacts, identification and drain points as the process requires. Components that assemble after coating should be trial-fitted or dimensionally checked so coating build-up does not block the connection.

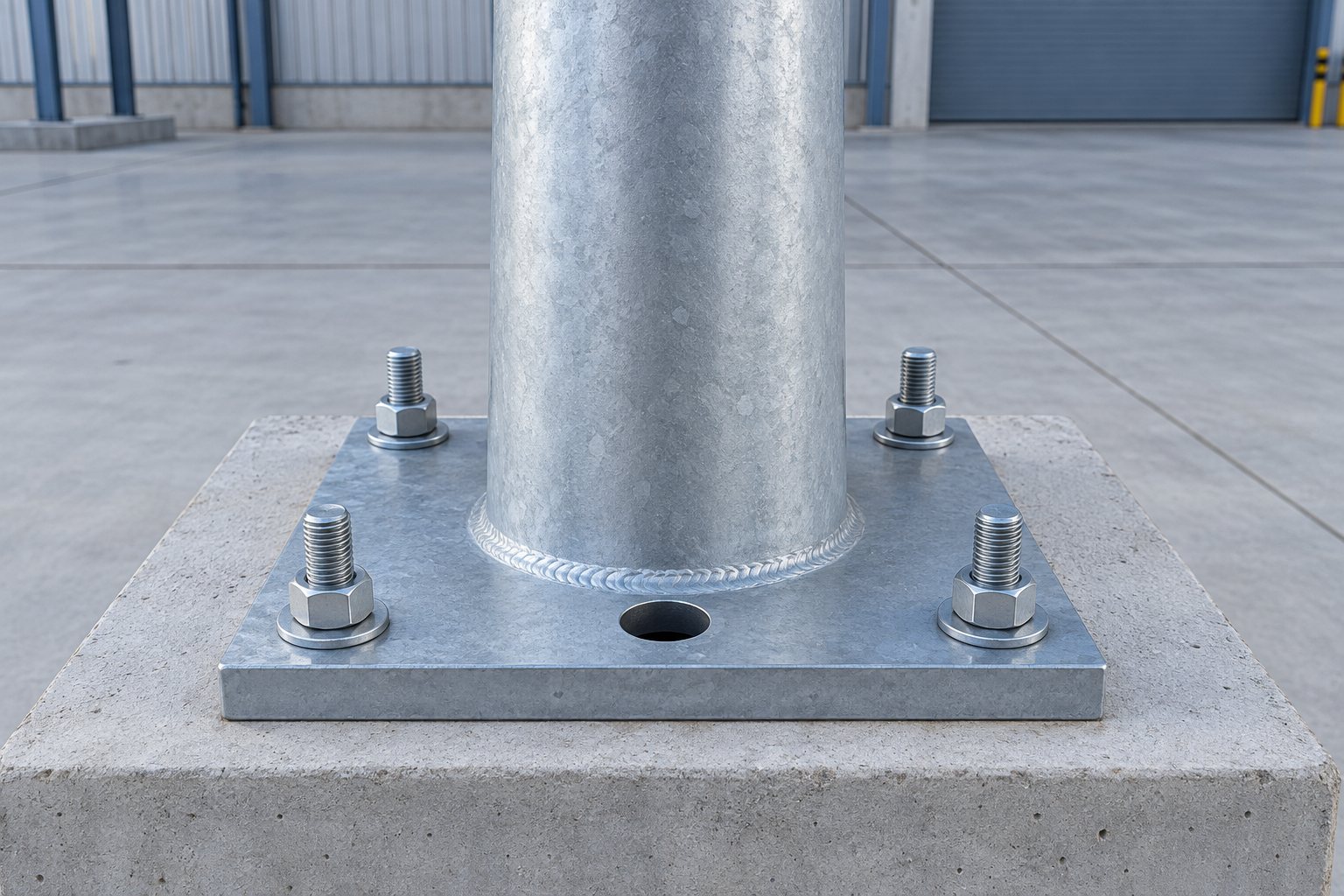

Design the Base Plate and Anchor Interface

A flanged-base round pole transfers forces through the shaft-to-plate connection, base plate, anchors, nuts, washers, bearing or leveling arrangement, grout where specified and the reinforced concrete foundation. These items are a connected load path. Choosing a plate from an unrelated project or changing the anchor circle at site can invalidate coordination.

The approved drawing should define plate shape and thickness, hole pattern, shaft position, weld or stiffeners where required, cable opening and orientation. It should also provide the reactions needed by the responsible foundation designer. The foundation must be designed for project soil, groundwater, frost, drainage, geometry, loads and local requirements; the pole supplier cannot establish those conditions from a product photo.

Issue the anchor setting information before concrete work and compare it with the template and pole drawing. The foundation and anchor bolt guide explains the coordination sequence in more detail.

The base plate, anchor pattern, cable opening and shaft connection must match the approved project interface.

Consider an Embedded or Direct-Burial Alternative Separately

An embedded pole extends into the foundation or ground interface and does not use the same lower detail as a flanged-base pole. Embedment length, shaft protection, cable entry, drainage, backfill or concrete arrangement and installation control require project engineering. A purchasing note that simply adds extra length to a base-plated product does not define a safe direct-burial solution.

Use distinct pole marks and drawings for each base type. The direct-burial street light pole page outlines the anchorless configuration and the civil information needed at RFQ stage. Where local practice offers both options, compare construction sequence, underground exposure, replaceability, alignment control and foundation responsibility.

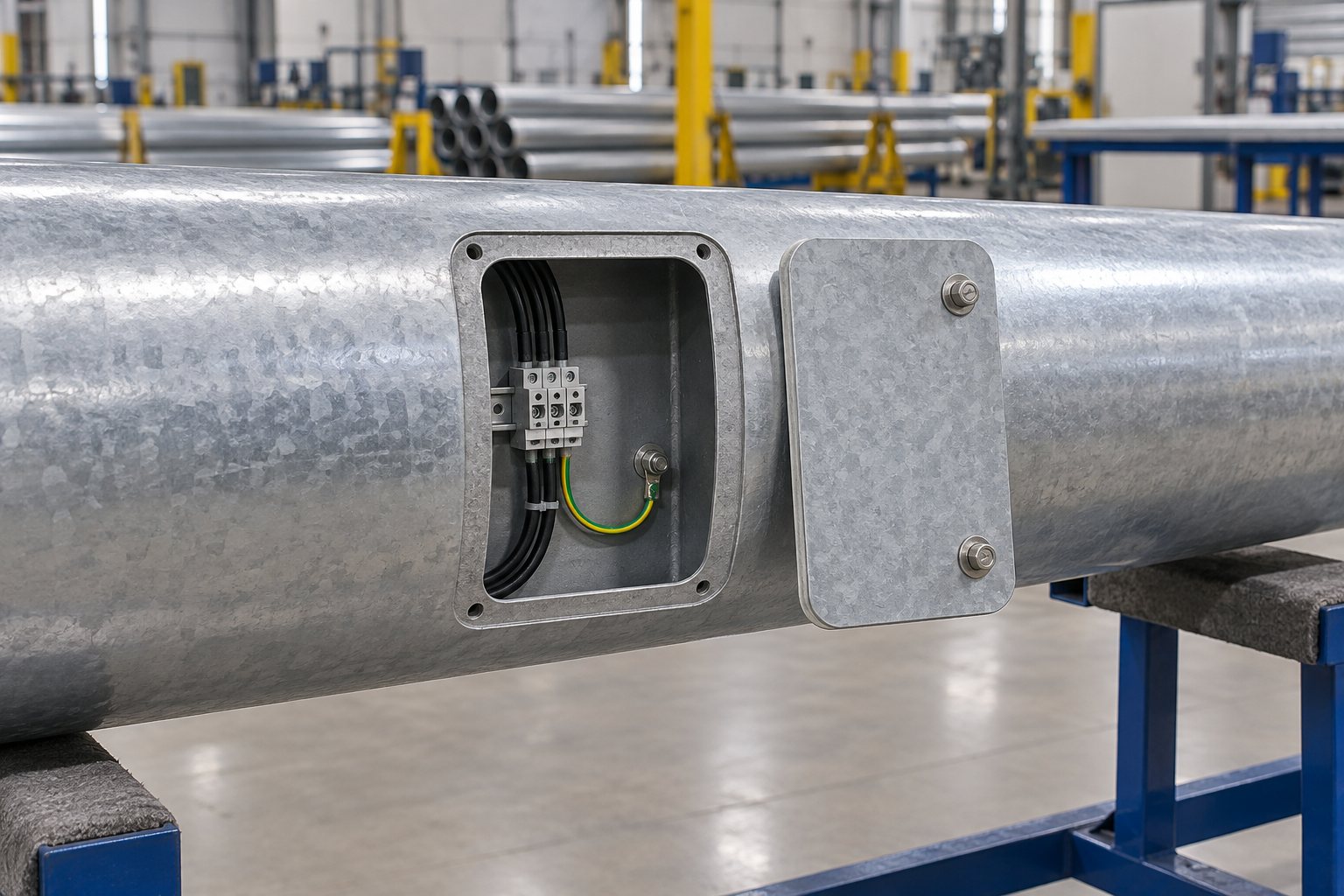

Provide a Reinforced, Serviceable Access Opening

The access opening allows cable termination, protective equipment and inspection near the lower pole. Its size and elevation should suit the intended internal arrangement and safe working access. Because the opening removes material from the circular shaft, its shape, reinforcement and location must be included in structural design rather than cut later at site.

Orient the door away from traffic conflict where possible and show that orientation relative to the arm and base. A close-fitting cover, retained fasteners and a controlled edge support routine maintenance. The opening should not overlap the longitudinal seam, base weld or a decorative sleeve unless the approved detail specifically coordinates those features.

A practical reinforced opening, matching cover and orderly terminal space are resolved before fabrication.

Plan Cable Entry, Earthing and Internal Routing

Show how conduits approach the pole, pass through the base or embedded section and reach the access compartment. Then define a protected route from the compartment to the luminaire. Cable bends, pull space, sharp edges, internal welds and arm transitions should be checked before production. An open hole through a base plate is only one part of the route.

Provide earthing or bonding provisions in accordance with the project electrical design and governing rules. If terminal blocks, protective devices, isolation equipment or control modules are housed inside the pole, specify their dimensions, mounting and ownership. Keep the compartment accessible after paving, base covers and landscaping are installed.

Use Photometric Design to Set Pole Spacing

Pole spacing cannot be derived from height with a fixed multiplier for every project. It depends on luminaire distribution, output, tilt, arm position, road and pedestrian geometry, surface reflectance, required criteria, maintenance factors and obstructions. Use the exact photometric file for the proposed luminaire and verify that the model matches the offered configuration.

Model the full route, including intersections, curves, crossings, medians, service roads and property boundaries. Average illuminance alone can hide dark patches or excessive bright zones. Review uniformity, glare and relevant vertical conditions with the project designer. A round tapered pole supports the fixture at the approved coordinates; it does not substitute for optical design.

Coordinate Pole Placement With Civil Clearances

Locate each pole using the road, path, curb, drainage, utility and landscape plans. Check vehicle clearance, sight lines, pedestrian clear width, cycle routes, accessible paths, doors, overhead lines and future tree growth. The base plate or cover envelope may be wider than the shaft centerline shown on an early lighting plan.

At industrial and logistics sites, compare pole positions with truck swept paths, loading operations and snow or material storage. At public streets, preserve visibility at crossings and junctions. Protective barriers, if required by the civil design, should not block the access door or interfere with the foundation.

Adapt the Pole Package to Exposure Conditions

Describe whether the site is inland urban, coastal, industrial, high-humidity, de-icing-salt exposed or affected by irrigation and persistent soil moisture. Exposure influences surface protection, drainage, fasteners, contact between dissimilar metals, packaging, site storage and maintenance. “Outdoor use” is too broad to guide a meaningful proposal.

Check topography and open terrain as part of the wind basis, not only corrosion. A seafront road, elevated plateau or open freight terminal may require very different inputs from a sheltered street. Provide the responsible designer’s parameters in the RFQ and keep supplier assumptions visible.

Develop a Complete Shop Drawing Submittal

The pole shop drawing should show overall reference height, lower and upper diameters, taper, material and thickness schedule, shaft seam, sectional joints if any, arm geometry, luminaire interface, access opening, base or embedment detail, cable route, finish, pole mark and orientation. Separate views and sections make each interface reviewable.

Connect the drawing to the luminaire schedule, photometric plan, structural inputs and civil foundation documents. List applicable standards and clearly identify assumptions or exclusions. A buyer should be able to follow one pole mark across those documents without interpreting conflicting names.

The street light pole shop drawing checklist provides a discipline-by-discipline review checklist. Resolve comments and revision status before material release.

Define Inspection and Documentation Before Production

Inspection scope can include material identification, dimensions, roundness, taper, straightness, weld examination, opening and base details, trial fit, galvanizing, optional color coating and packing. The contract should state required records, sampling, acceptance criteria, witnessing and responsible parties. Adding documentation demands after production can cause delay without improving the underlying product.

Use a manufacturing data plan appropriate to project risk and specification. Not every order needs identical third-party involvement, but every required check should have a defined stage and result. Hold points belong before irreversible work such as galvanizing or final coating when the review depends on unfinished surfaces.

Prepare Long Shafts and Arms for Export

Round tapered shafts need stable, spaced supports that prevent bending, rolling and metal-to-metal contact. Use padded timber or engineered skids, suitable restraints and protected lifting points. Base plates, top ends, access covers and galvanized surfaces should not carry concentrated strap loads without protection.

Pack detachable arms separately so their curves and mounting sleeves remain aligned. Seal and identify bolts, adapters and small components by pole mark. The packing list should allow the receiver to check complete assemblies without opening every protected bundle unnecessarily.

Padded supports, restraints and separate arm bundles protect geometry and finish during handling and transport.

Receive and Store Poles Correctly on Site

Check package marks, quantities and visible condition against the packing list before unloading. Use suitable lifting equipment and soft or protected contact surfaces. Do not drag galvanized shafts, lift them from access openings or place long poles on uneven point supports. Record transport damage before the shipping condition is disturbed.

Store shafts on stable, aligned supports away from standing water, soil contamination, welding activity and moving vehicles. Restrain round components against rolling while allowing ventilation and drainage. Keep arms, doors and hardware with their pole marks; mixing apparently similar parts can create fit and orientation problems later.

Install With Controlled Orientation and Verticality

Before erection, verify the foundation or embedment interface, anchor setting, conduits, pole mark, arm direction, door orientation and complete hardware. Use the approved lifting method and protect the shaft from crushing or abrasion. Never use a luminaire arm or access opening as an unapproved lifting point.

For flanged bases, follow the project procedure for leveling, nut arrangement, tightening, grout and final inspection. Do not force a mismatched hole pattern or bend anchors to make the pole fit. Establish verticality using the defined reference and confirm that adjustment remains within the approved base arrangement.

Install arms and luminaires according to the connection drawing, then check fasteners, cable protection and intended aiming. The approved erection method statement should cover receiving, lifting, electrical work, inspection and handover for the actual project.

Commission the Complete Lighting Assembly

Commissioning should verify physical condition, verticality, arm orientation, luminaire position, door closure, base and anchor completion, earthing, circuits and controls. Conduct night checks against the approved lighting design where required. Record any aiming or control adjustments so later maintenance can restore the accepted arrangement.

Walk the route in daylight as well. A repeated line of round tapered poles makes inconsistent tilt, height, finish or arm direction easy to notice. Check clearances and maintenance access after landscaping and paving are complete, because finished-site conditions may differ from early plans.

Close punch-list items with traceable pole marks and evidence. A successful handover connects manufacturing records, installation checks and lighting commissioning rather than treating the shaft as an isolated delivery.

Plan Inspection, Maintenance and Replacement

The owner’s program can include visual checks for impact, corrosion, loose or missing covers, damaged luminaires, attachment changes, base condition, drainage and surrounding site changes. Frequency and method depend on exposure, traffic risk, local requirements and asset-management policy. Electrical work and work at height must follow applicable safety procedures.

Retain approved pole drawings, material and finish information, arm and luminaire interfaces, anchor setting data, pole marks and installation records. These make a future replacement far more reliable than measuring a damaged shaft at roadside. If the luminaire or attachment changes, review weight, projected area, connection and electrical requirements before reuse.

Do not assume a visually matching round steel lamp post is structurally or dimensionally interchangeable. Verify the complete marked configuration and foundation interface.

Define the Manufacturer and Supplier Scope

State whether the order includes the tapered shaft, base plate or embedded extension, anchor assembly, arm, spigot or adapter, access door, internal mounting provision, galvanizing, optional color coating, drawings, structural documentation, inspection records, packing and delivery. Identify luminaires, control equipment, foundations, installation and commissioning supplied by others.

Clear boundaries prevent both omissions and duplicate pricing. They also show which organization must coordinate each interface. If anchors are supplied with the pole but installed by the civil contractor, define the template, setting information, delivery date and verification responsibility. If the luminaire comes from another supplier, provide final fixture data before pole drawing approval.

As a roadway lighting pole manufacturer, Jieyao can prepare the galvanized round light pole and its fabrication interfaces from approved project inputs. The project lighting, structural, civil and electrical designers remain responsible for the complete installed system within their scopes.

Prepare a Complete Round Tapered Steel Light Pole RFQ

Begin with project name, location, pole marks, quantities and application zones. Add the governing standard and wind basis, reference height, shaft shape, preferred base type, luminaire and arm schedule, complete top-load data, access and electrical requirements, finish, drawings, inspection, packing and delivery terms. Attach the lighting and civil information needed to interpret each mark.

Separate mandatory requirements from supplier-design items. If alternatives are permitted, require the bidder to provide a marked deviation list and enough geometry to evaluate the option. Avoid vague descriptions such as “standard heavy-duty pole,” “high wind pole” or “all accessories included.” Those phrases do not define equivalent technical scope.

A useful RFQ lets every bidder calculate and price against the same inputs. It also reduces repeated clarification after award, when changes are more expensive and may affect foundations already under construction.

Compare a Tapered Pole Supplier on Technical Equivalence

Compare the proposed shape, lower and upper dimensions, material schedule, seam and sectional joints, arm connection, luminaire interface, base or embedment arrangement, access opening, finish, documents, inspection and packing. Confirm that every bidder used the same height definition, wind basis and attachment data. Pole mass alone does not establish structural adequacy or fabrication quality.

List exclusions and deviations beside each requirement. A lower price may omit anchors, arms, coating stages, structural documentation or export protection. A heavier offer may reflect different assumptions rather than greater value. Normalize the scope before commercial comparison and close material exceptions before award.

Review delivery logic as well as manufacturing lead time. Shop-drawing approval, fixture data, anchor release, sample approval and foundation construction can determine the critical path. A coordinated supplier should make these dependencies visible.

Avoid Common Specification and Ordering Failures

Frequent problems include using a marketing wind number without design inputs, omitting luminaire EPA, confusing shaft length with mounting height, calling both round and polygonal products “tapered,” approving anchors separately from the base plate, adding doors or attachments after calculations, and allowing site drilling at the top connection. Each problem breaks a link in the approved assembly.

Other failures are operational: the door faces traffic, conduits miss the base opening, arms are packed without pole marks, straps damage the finish, or a replacement shaft is ordered from appearance alone. Prevent these issues through marked drawings, controlled revisions, interface checks, traceable packing and pre-installation verification.

A concise pre-production meeting can confirm open items across lighting, structural, civil, electrical, procurement and installation teams. Record decisions in the controlled documents rather than relying on email descriptions or photographs.

Use the Right Related Pole for Each Search and Project Need

A buyer searching for a round street light pole may actually need a height-specific roadway product, a parking-area bracket, a decorative streetscape family or an embedded foundation interface. Use the round tapered page when circular taper is a defined requirement. Use related product pages when another engineering distinction drives the purchase.

This separation also improves website relevance. A focused product page can answer shape-specific questions while height and application pages address their own long-tail terms. Internal links help procurement teams move between those decisions without repeating the same generic text on every page.

Round Tapered Steel Light Pole Procurement Checklist
