Pro-Series LED Stadium High Mast Light
● Engineered for professional arenas and municipal infrastructure. This high-performance High Mast Light replaces traditional 2000W HID lamps with a high-efficacy LED architecture, reducing energy consumption by 60%while exceeding broadcasting standards for flicker-free Stadium Lights.
● Precision Asymmetric Optics: Utilizing Type IV/V optics with a low glare rating, these High Mast Lights ensure maximum luminous uniformity on the field while minimizing light spill—critical for residential Sports Lighting compliance.
● Certified Thermal Management: The modular 6063 aluminum heat sink maintains a junction temperature below 65 ℃, securing an L70 lifespan of 100,000 hours. This significantly lowers the Total Cost of Ownership (TCO) for Stadium Lights installed at heights of15-35 meters.
● High-Definition Visuals: With a CRI >80/90, our Sports Lighting system supports high-speed camera recording without stroboscopic effects, meeting international tournament requirements for professional Stadium Lights.
● Structural Resilience (IP66 & IK10): The aerodynamically profiled High Mast Light housing is salt-spray resistant (ISO 9227) and designed to withstand sustained wind loads of up to 45m/s on high-mast poles.
● Project-Ready Controls: These Stadium Lights are fully compatible with DMX512 and DALI 2.0 dimming protocols for synchronized light shows and adaptive energy scheduling in large-scale Sports Lighting projects.
High Mast Light product advantage
High Mast Light product advantage

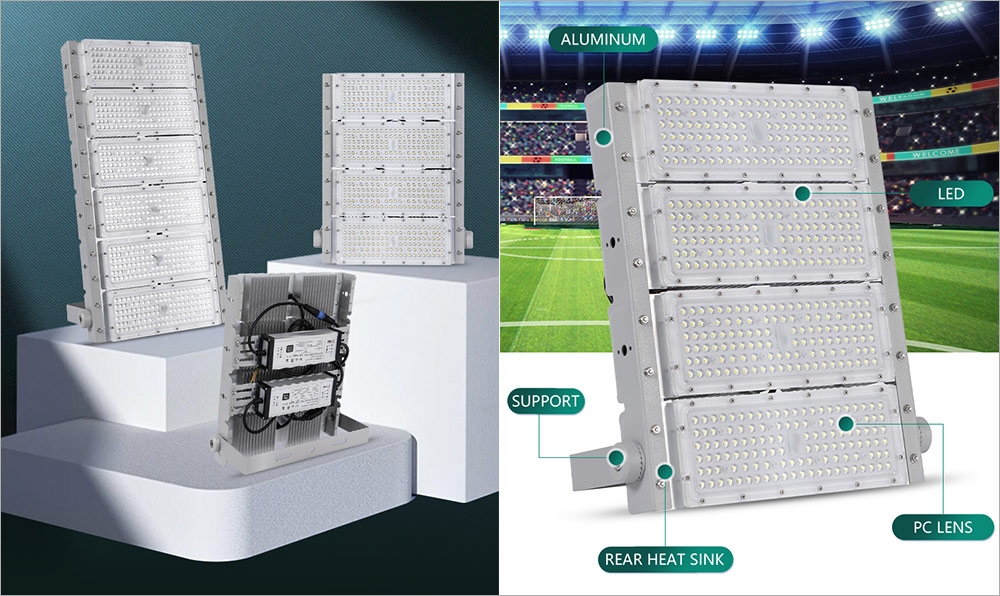

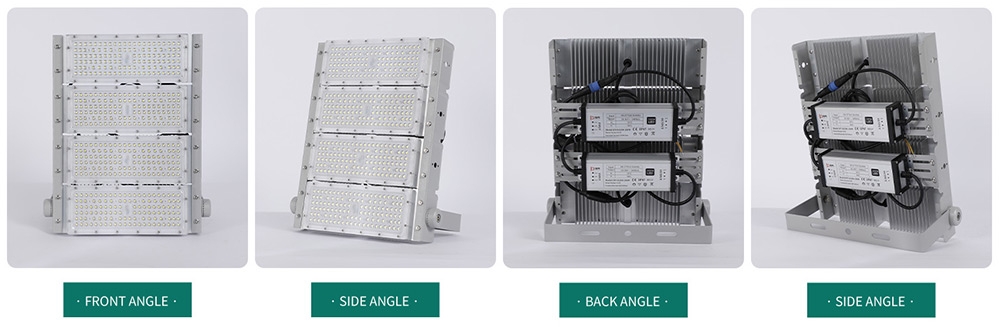

the actual shooting shows the appearance and details of the lamps from various angles

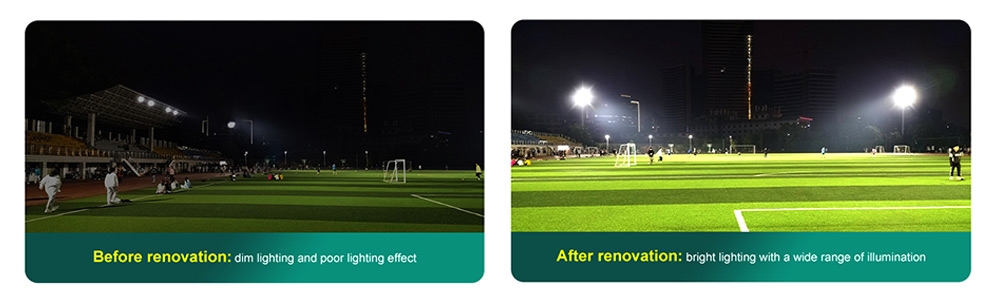

High Mast Light Engineering Transformation
used for tunnel culverts, stadium squares, medium and high pole lighting, etc
COURT LIGHTING SCHEME
because professional help you solve every problem

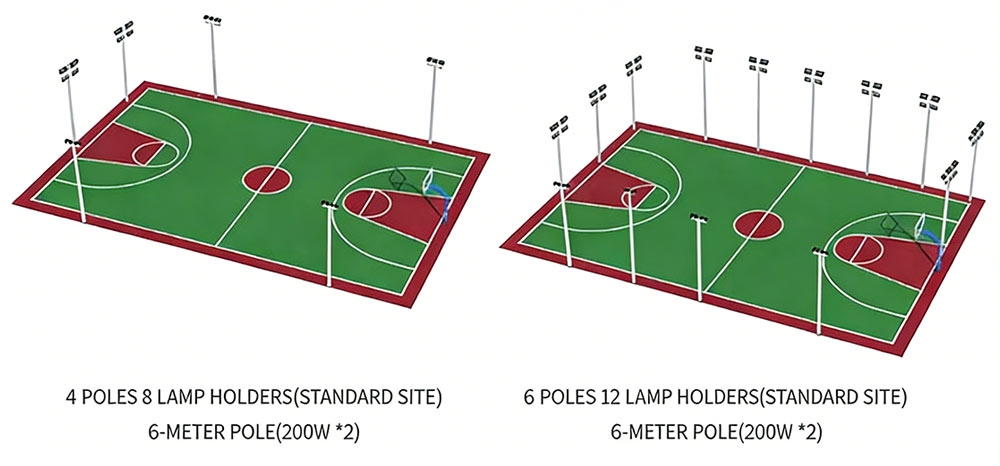

basketball court 420m²

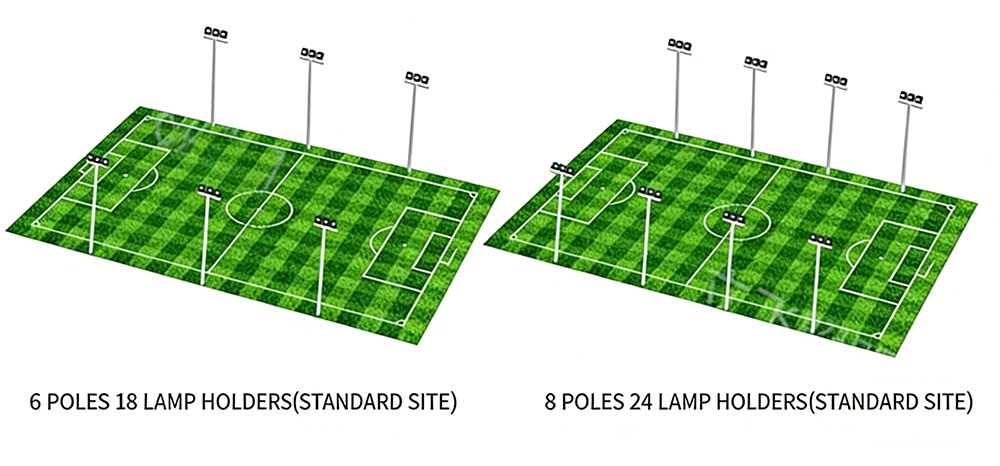

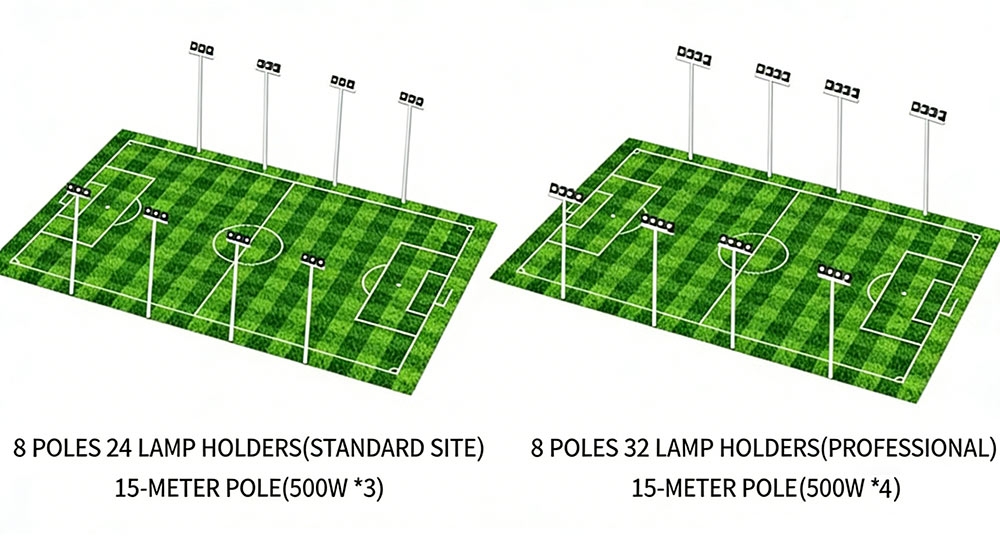

SEPTUPLE SOCCER FIELD 3100m²
SEPTUPLE SOCCER FIELD 3100m²
SEPTUPLE SOCCER FIELD 3100m²

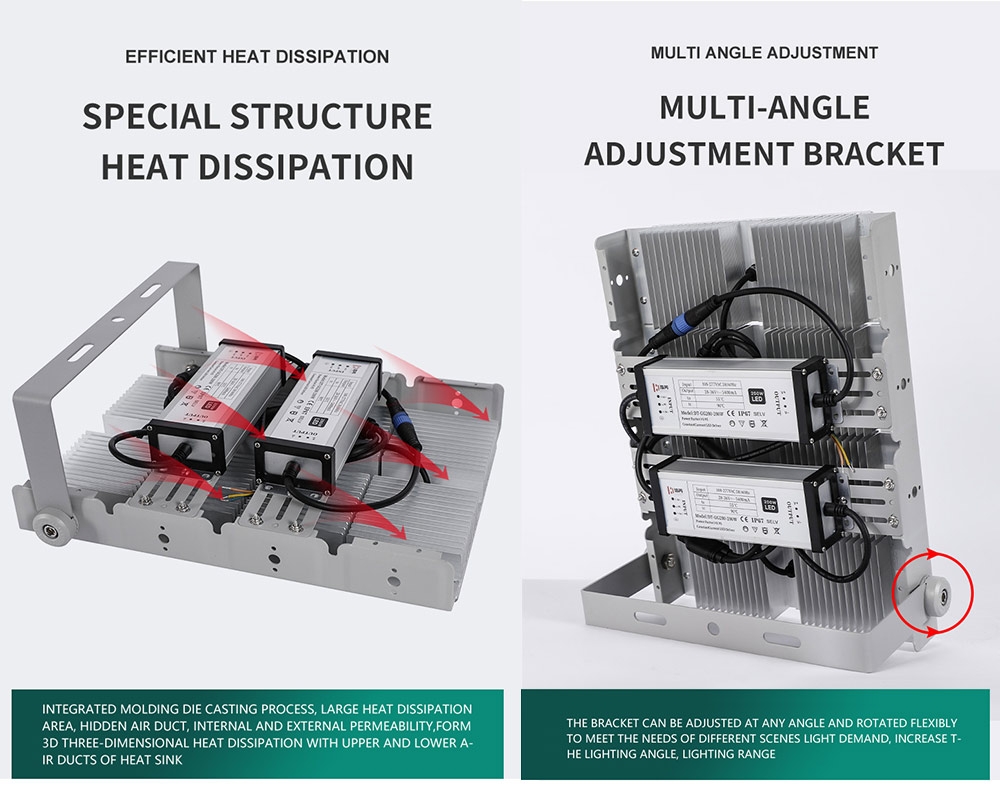

Product Advantages of High Mast Lights
High Mast Light PRODUCT PARAMETERS
product parameter at a glance
Item | Details | Item | Details |
Name: | Module floodlight | Light source: | LUMILEDS 3030SMD |
Waterproof class: | IP66 | Color rendering: | > 70 |
Light beam Angle: | 90/45/30 | Input voltage: | 90-260V |
Color temperature: | 3000K/4000K/6000K | Working environment: | -40°C~90°C |
Surge protection: | 6KV/10KV | Material: | Stretched aluminum profile |
Driver: | Inventronics/ Maso/ Songsheng Sosen | ||
Application: | Square stadium/Tunnel bridge/engineering lighting | ||
Model number | power | dimension | Luminous flux | Package size | weight |
MZ-100 | 100W | L110*W360*H125MM | 11400lm | 365*365*140mm | 1.6KG |
MZ-200 | 200W | L215*W360*H125MM | 22200lm | 365*365*140mm | 3.4KG |
MZ-300 | 300W | L315*W360*H125MM | 32400lm | 365*365*140mm | 4.8KG |
MZ-400 | 400W | L415*W360*H125MM | 43200lm | 540*365*140mm | 6.75KG |
MZ-500 | 500W | L525*W360*H125MM | 54000lm | 540*365*140mm | 8.76KG |
MZ-600 | 600W | L625*W360*H125MM | 64800lm | 670*390*140mm | 9.4KG |

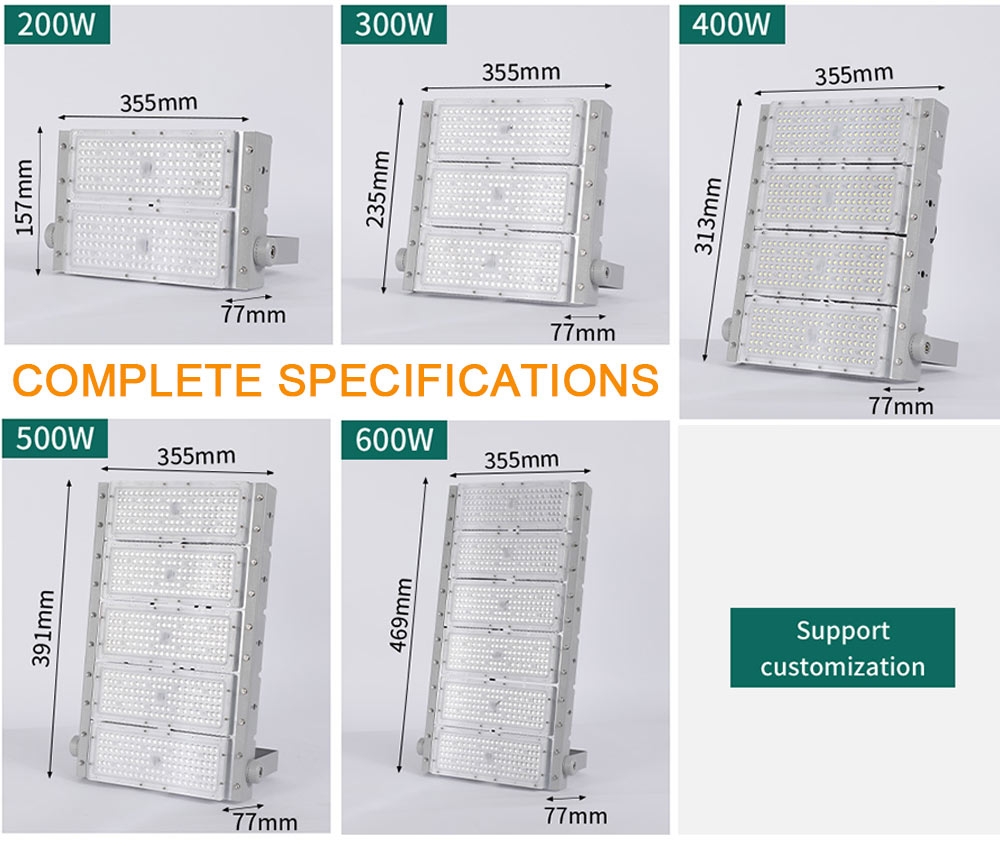

High Mast Light COMPLETE SPECIFICATIONS
HIGH QUALITY DETAILS
|
pc mask, light efficiency loss low, transmittance greater than 90%, pc cover impact, explosion, pressure and high temperature resistance. |
all-round angle adjustable for use the site is not limited, the installation is convenient, all in one go. |
|
|
Safety Power Supply backplane ventilation design, built-in safety power supply, safer, more practical and beautiful see we all have to have. |
the back adopts the design of heat dissipation hole, integrated heat dissipation, safe and efficient, working process preferred. |
|
High Mast Light Applications in Sports Stadiums
| Basketball Court Lighting Optimal basketball performance depends on vertical illuminance and the elimination of dark spots. Implementing a professional LED High Mast Light system ensures that players can track the ball’s trajectory during high-arching shots without being blinded by direct glare. |
| Soccer & Football Stadiums Lighting a sprawling football pitch requires intense lumen density and high-altitude mounting. A strategic High Mast Light installation, typically at heights of 15 to 30 meters, provides the necessary clearance to cover the entire field while resisting high wind loads. |
| Baseball & Softball Diamonds The primary challenge of baseball lighting is the "fly ball"—tracking a small white object against a pitch-black sky. A well-engineered High Mast Light layout creates a "ceiling of light," providing the vertical lux required for outfielders to make split-second catches safely. |

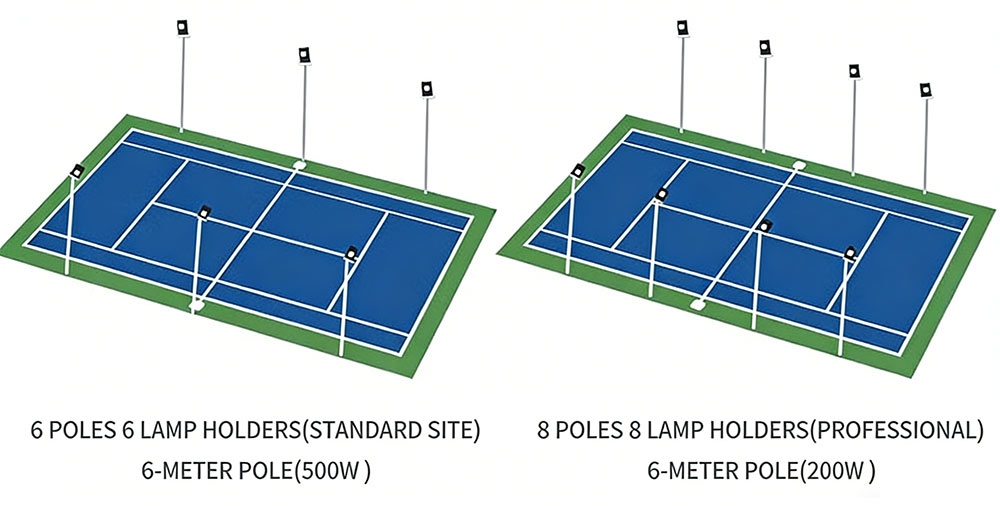

| Tennis Court Lighting Tennis demands rapid visual processing. A dedicated High Mast Light system for tennis courts is designed to eliminate "hot spots" at the net and shadows at the baseline. |
High mast light refers to poles typically 20m (65ft) or taller. It is widely used in airports, seaports, highways, stadiums, and logistics hubs to provide uniform illumination over a vast area.
High mast poles are designed for large-area outdoor lighting, and their height usually depends on the size of the space that needs to be illuminated.
It depends on the mounting height and required lux levels. Generally, for a 25-30m pole, high-power LED floodlights ranging from 400W to 1000W are recommended.
We use high-strength carbon steel such as Q235B or Q345B, bent into polygonal shapes (usually 12 or 16 sides) and hot-dip galvanized both internally and externally.
Raising & Lowering systems feature an electric winch to lower the light ring to ground level for maintenance. Fixed systems require a bucket truck or ladders for servicing.
It consists of an electric winch, stainless steel wire ropes, pulleys, and an automatic latching mechanism. Once reaching the top, the ring locks mechanically to relieve tension from the ropes.
No. Our systems feature an automatic mechanical latching system and safety brakes to ensure the ring stays secure even without rope tension when in the locked position.
Our structural designs are based on local wind data. Standard designs withstand winds up to 160km/h (45m/s), with reinforced options for hurricane-prone regions.
Yes. Each pole is equipped with a lightning rod at the top and dedicated grounding bolts to connect to the foundation grounding system.
We use professional asymmetrical optical lenses (such as Type IV or Type V) to ensure uniformity over large areas and minimize glare.
Through shields and precise light distribution design, we confine excess light to the target area, reducing interference for the surrounding environment and drivers.
A concrete foundation must be poured based on pole height and soil conditions. We provide detailed foundation drawings and anchor bolt cages.
In standard outdoor environments, hot-dip galvanizing provides rust protection for over 25-30 years without requiring additional painting.
Yes. Due to height limits, poles over 20m are typically split into 2-3 telescopic sections for convenient shipping in 40ft containers.
No. Sections are joined via overlap (telescopic fit) using gravity or hydraulic force. This mechanical joint is more flexible and fatigue-resistant than welding.
Yes. Our professional lighting design team provides free Dialux simulation reports based on your site’s CAD drawings to optimize lighting layouts.
Yes, we have extensive project references in the Middle East, Southeast Asia, and South Africa. We can provide photos and technical parameters upon request.
We typically offer a 10-year warranty on the pole structure and a 5-year warranty on the LED fixtures and lifting systems.
Yes. Our light rings can be customized with brackets to accommodate CCTV cameras or other security sensing devices.
Q345B has higher yield strength, allowing taller, slimmer poles to remain safe while reducing weight and improving wind performance.
EPA refers to the Effective Projected Area of the pole and fixtures under wind pressure. It is a critical parameter for calculating structural safety.
Technically yes, but due to high power consumption, very large solar arrays and battery banks are required. We typically recommend grid-tied or hybrid systems.
We use high-quality stainless steel or plastic-coated wire ropes and recommend regular greasing during annual inspections.
Yes. With intelligent control systems, you can remotely adjust brightness and scheduling to maximize energy savings.
We perform Non-Destructive Testing (NDT), such as ultrasonic testing, to ensure all critical load-bearing welds are free of cracks or porosity.
