The 80W 10 meter streetlight is a common configuration in urban road lighting, and its core parameters and design features are as follows:
Core parameter analysis
Light source performance
Power: 80W LED light source, light efficiency can reach 100-110LM/W, total luminous flux is about 8000-8800LM, far exceeding traditional high-pressure sodium lamps (400W sodium lamps have a luminous flux of about 24000LM, but high energy consumption).
Color temperature: Positive white light (5500-6300K), color rendering index Ra ≥ 75, close to natural light, reducing visual fatigue.
Lifespan: LED light sources have a lifespan of over 50000 hours, which is 5-10 times that of sodium lamps, and have low maintenance costs.
Electrical parameters
Voltage: AC85-265V, adaptable to global power grid fluctuations, power factor>0.95, total harmonic distortion<15%, energy-saving and environmentally friendly.
Protection level: IP65, dustproof and waterproof, suitable for harsh environments.
Structure and Materials
Lamp post: 10 meters high, with a wall thickness of 5.0mm, hot-dip galvanized and spray treated, with strong corrosion resistance and a lifespan of over 10 years.
Lamp head: Made of die cast aluminum material, with surface oxidation treatment, large heat dissipation area, and reduced failure rate.
Lens: Tempered glass, with a light transmittance of over 90% and excellent impact resistance.
intelligent control
Support light control, time control, remote control, and can adjust the brightness in different time periods (such as reducing the brightness to 60% in late night energy-saving mode), further saving energy.
Typical application scenarios

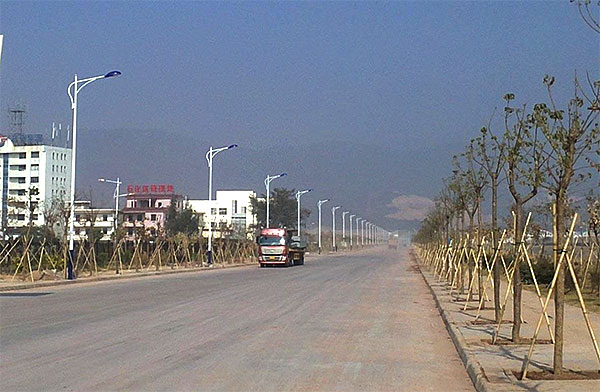

urban arterial road
A 10 meter lamp post paired with an 80W LED light source can achieve an illumination of 20-30Lx (national standard), meeting the lighting needs of expressways and main roads.
Example: In a city's main road renovation project, the use of 80W LED street lights reduced energy consumption by 68% and the average annual failure rate decreased by 12%.
Secondary roads and branches
In secondary roads (with illumination requirements of 15-20Lx), 80W LED street lights can flexibly adapt to different time periods through dimming function.
Example: A road lighting project in a certain residential area reduced energy consumption by 40% during late night hours after adopting intelligent dimming.
special environment
High wind speed area: The single arm design has low wind resistance, and the deformation of a 10 meter lamp post under 12 level wind (35m/s) is reduced by 18% compared to a double arm street lamp.
Emergency scenario: The lamp head can be quickly disassembled for easy cleaning after typhoons and accidents.
