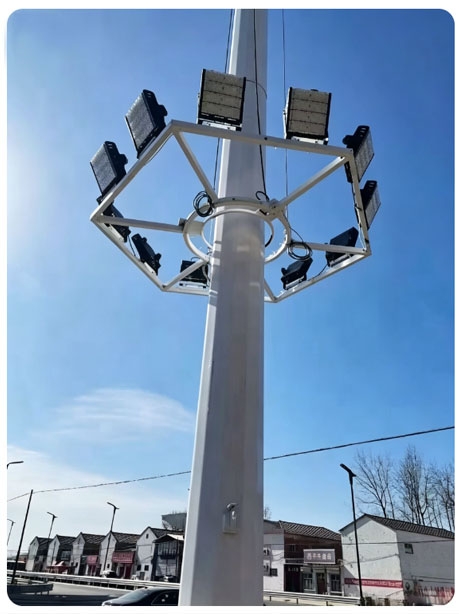

Project Overview High Mast Lighting CaseThis project is a large-scale high mast lighting system designed for an outdoor industrial working area requiring high brightness, wide coverage, and stable long-term operation at night. The site environment includes continuous night operations, vehicle movement, and heavy equipment activity. The lighting system must ensure uniform illumination, low energy consumption, and minimal maintenance cost. To meet these requirements, we implemented a 30-meter LED high mast lighting solution with multi-head floodlight configuration and optimized photometric design. |
|
Client Challenges Before the lighting upgrade, the site faced several operational challenges during night work. The existing lighting system was not able to provide sufficient brightness across the entire working area, which resulted in uneven visibility and noticeable dark zones in some sections. At the same time, the use of traditional HID lighting led to high energy consumption and increased operating costs. Frequent maintenance was also required due to the height of the installation, making repairs more difficult and time-consuming. These issues together affected overall safety and efficiency during night operations. |
Lighting Design Solution To solve the site’s lighting issues, we developed a customized LED high mast lighting system based on photometric simulation and structural optimization. The solution focuses on achieving uniform brightness, energy efficiency, and long-term stability under outdoor industrial conditions. The system was designed using DIALux lighting simulation to ensure accurate light distribution and reduce dark zones across the working area. Request a Project-Based Lighting Design System Technical Parameters |
Item | Specification |
Pole Height | 30 meters (customizable 25–40m) |
Lighting Type | LED High Mast Floodlight System |
Power Range | 400W – 1000W per fixture |
Luminous Efficiency | Up to 150 lm/W |
Protection Level | IP66 Waterproof & Dustproof |
Pole Material | Hot-dip galvanized steel |
Beam Angle Options | 30° / 60° / 90° |
Design Method | DIALux photometric simulation |
Engineering Design Approach To ensure optimal performance, the project was developed using DIALux-based lighting simulation to achieve a precise layout before installation. The design focused on improving lighting uniformity across the entire site while reducing shadow zones that could affect night operations. Glare control was also carefully considered to ensure safe visibility for vehicles and workers during continuous movement. In addition, wind load structural calculations were applied to guarantee pole stability under outdoor environmental conditions. An energy-efficient LED distribution strategy was implemented to balance brightness and power consumption, ensuring stable and uniform illumination across the full working area. |
Why High Mast Lighting Was Selected High mast lighting was selected for this project due to its exceptional efficiency in illuminating large outdoor areas. Unlike traditional low-mast lighting systems, high mast poles can illuminate areas up to 120 meters in diameter with just a single pole, which reduces the number of poles required and significantly lowers installation and maintenance costs. With the ability to mount multiple high-efficiency LED floodlights on a single pole, the system provides a uniformity of 0.6 or higher, ensuring consistent lighting levels with minimal shadow zones. This is crucial for sites like industrial yards, ports, and highways, where safety and operational efficiency are paramount. Moreover, high mast lighting minimizes ground-level obstructions, which is particularly beneficial for large-scale operations involving vehicles and machinery. This also leads to fewer poles, reducing costs and increasing overall site efficiency. The selected lighting system utilizes 400W to 1000W LED fixtures, offering up to 150 lumens per watt, significantly improving energy efficiency when compared to traditional HID lamps. High mast lighting also offers low maintenance costs, as fewer poles mean fewer points of failure, and LED lights have a long lifespan of 50,000+ hours, far surpassing traditional metal halide or halogen lamps. These features help reduce long-term operational and maintenance costs. High Mast Lighting Advantages |
Advantage | Description |
Reduced Pole Quantity | One high mast pole can replace multiple traditional poles, reducing installation cost by up to 50%. |
Wider Coverage | Each pole can cover an area of up to 120 meters in diameter, significantly improving light distribution. |
Uniform Lighting | Achieves lighting uniformity of 0.6 or higher, minimizing shadow zones for enhanced safety. |
Minimized Obstructions | Fewer poles and minimal ground-level obstructions ensure smoother vehicle movement and operational efficiency. |
Lower Maintenance | Reduced number of poles and a lifespan of 50,000–100,000 hours for LEDs cut maintenance costs by approximately 70%. |
Energy Efficiency | LED lights provide up to 150 lumens per watt, offering up to 70% energy savings compared to traditional HID lamps. |
Stable Performance | Designed for harsh conditions, the system can withstand wind speeds of up to 120 km/h, ensuring consistent illumination in all weather. |

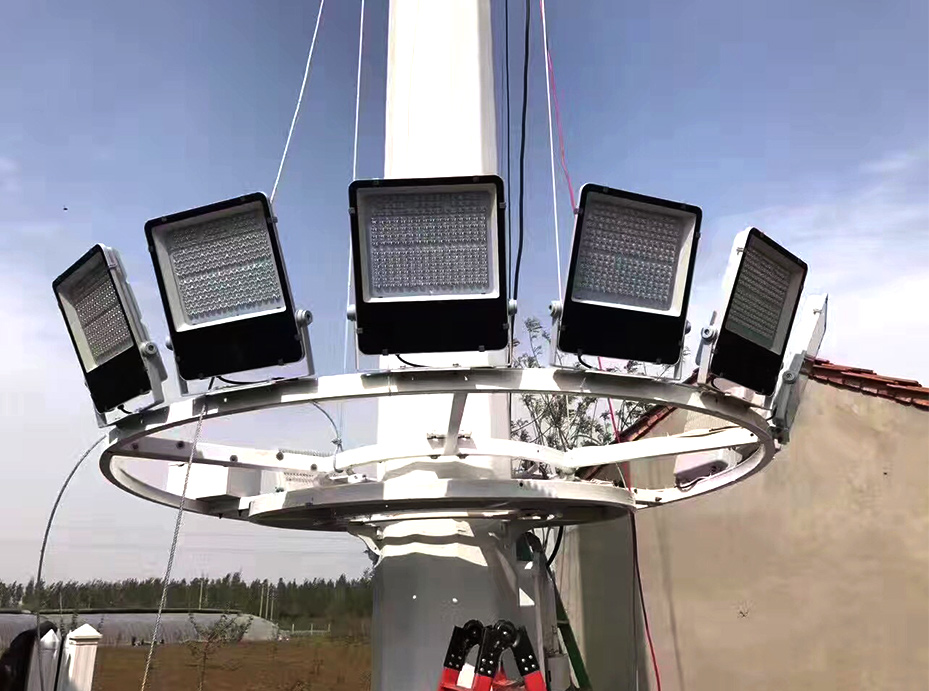

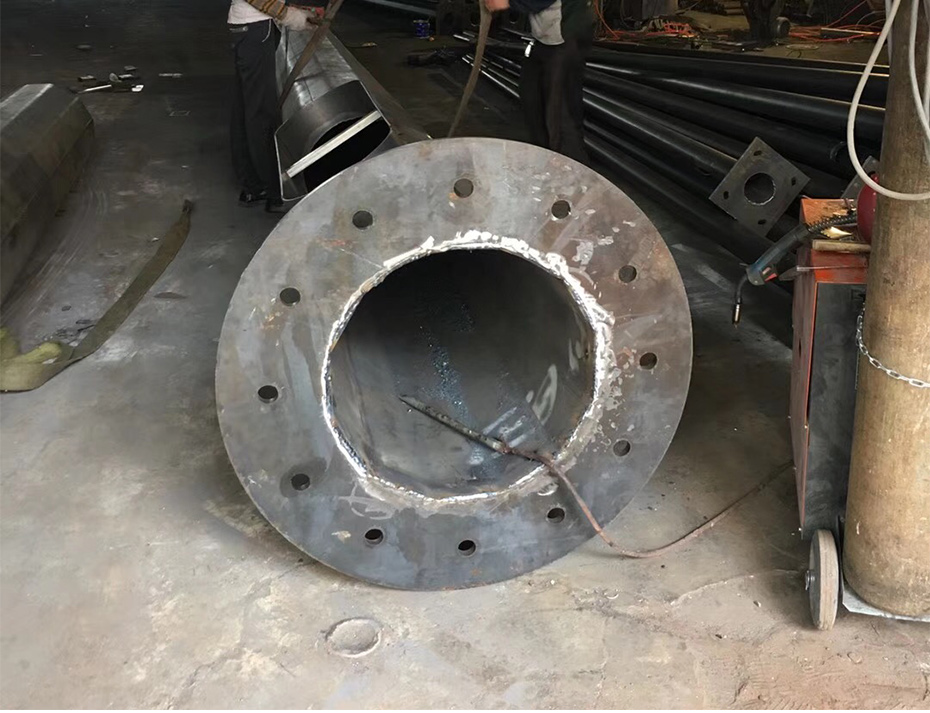

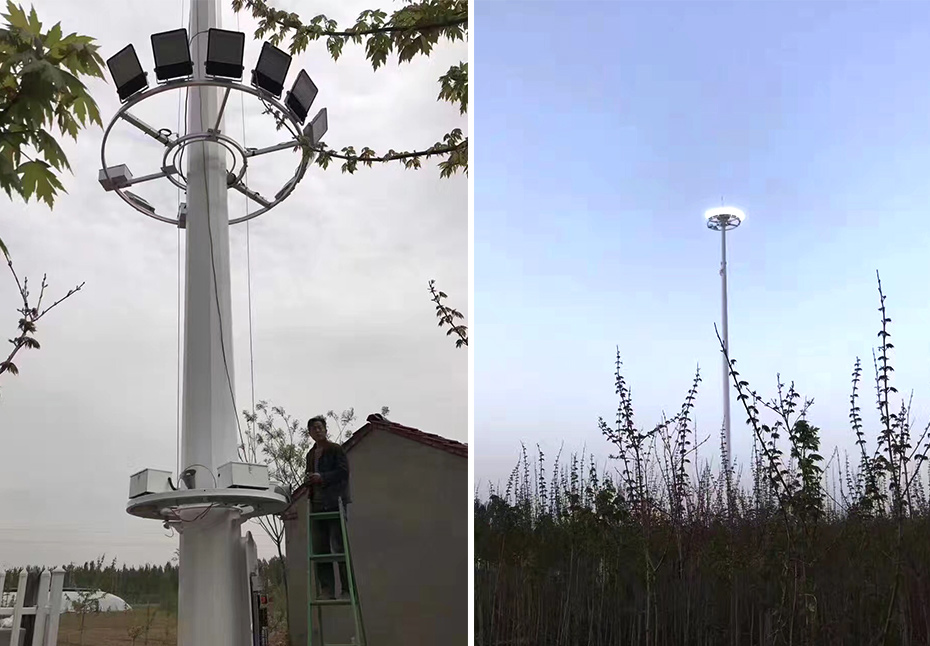

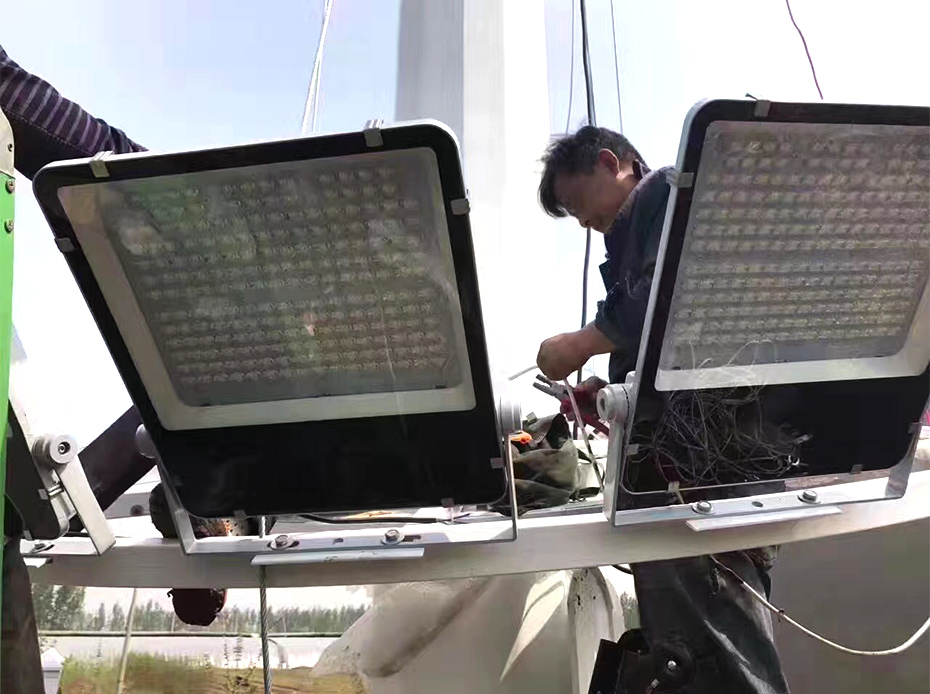

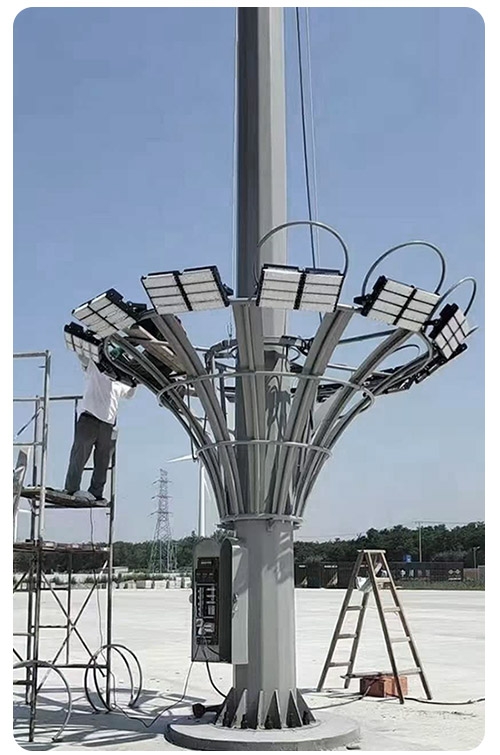

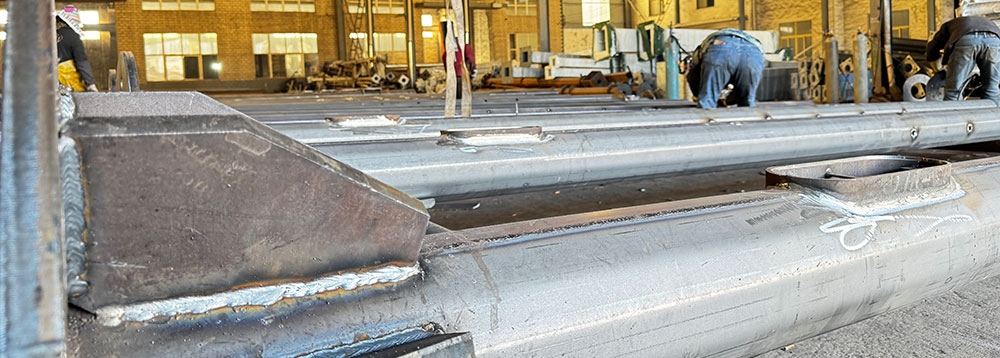

Installation Process The installation process for the high mast lighting system was carried out in the following phases: 1. Site Analysis and Measurement The site was surveyed to measure the area and assess lighting needs, ensuring optimal pole height, fixture wattage, and beam angle for uniform illumination. 2. Lighting Design and Simulation Using DIALux software, a lighting design was created, ensuring an average illuminance of 35–60 lux and minimal shadow zones. 3. Pole Fabrication and Installation Steel poles were fabricated with hot-dip galvanization for corrosion resistance and installed with a lifting mechanism for easy maintenance. Poles were placed in concrete foundations, and LED flood lights were mounted securely. 4. Testing and Final Commissioning After installation, the lighting system was adjusted and tested to meet design specifications. A final inspection was performed, and the system was commissioned for full operation. |
|
High Mast Lighting Project Results After the installation of the high mast lighting system, the site experienced significant improvements in lighting quality and operational efficiency. The system ensured uniform illumination across the area, reducing maintenance costs and improving safety for both workers and vehicles. |
Metric | Before Installation | After Installation | Improvement |
Average Illuminance | 15–25 lux | 35–60 lux | +40–60% |
Lighting Uniformity (U0) | < 0.4 | ≥ 0.6 | +50% |
Energy Consumption | High (HID lighting) | Reduced by 50%–65% with LED | 50–65% savings |
Maintenance Frequency | High (frequent bulb replacement) | Reduced by 70% due to LED lifespan | 70% reduction |
Pole Quantity | Multiple low poles (6–10 poles) | 1 high mast pole per area | 60–80% reduction |
Coverage Radius | Limited to smaller sections | Up to 120 meters per pole | +100% coverage |
Customized Lighting Engineering Support Provide customized high mast lighting solutions based on actual project requirements, not standard fixed models. Different sites require different pole heights, lighting layouts, wind load calculations, and power configurations. Our engineering team works from the project conditions to optimize lighting performance, structural safety, and long-term operating cost. From DIALux lighting simulation and steel pole design to product manufacturing and installation support, each solution is developed to match the real application environment. This helps clients achieve stable illumination, easier maintenance, and better investment efficiency for large outdoor lighting projects. |
High Mast Lighting Projects If you are planning a large-area lighting project and need a reliable high mast lighting solution, we can provide a customized engineering proposal based on your site requirements. Get a Custom High Mast Lighting Solution |
High Mast Lighting FAQ
1. What is a high mast lighting system used for? High mast lighting is mainly used to illuminate large outdoor areas such as highways, ports, airports, stadiums, and industrial yards. A single system can cover a very wide area with fewer poles, improving visibility and safety during night operations.
2. How high is a typical high mast lamp pole? Most high mast lighting poles range from 20 to 45 meters, depending on the project size and lighting requirement. In large infrastructure projects like ports or highways, higher poles are used to achieve wider and more uniform light coverage.
3. Why do projects choose high mast lighting instead of regular street lights? High mast lighting can reduce the number of poles needed while providing more uniform illumination over large areas. This helps lower long-term maintenance cost and improves traffic safety by reducing dark zones and uneven lighting.
4. What type of lights are used in high mast systems? Modern high mast lighting usually uses LED floodlights, which offer higher energy efficiency, longer lifespan, and better light distribution compared to traditional metal halide or high-pressure sodium lamps.
5. Is high mast lighting suitable for windy or coastal areas? Yes. High mast lighting systems are designed with strong steel poles and anti-corrosion surface treatment. They are commonly used in ports and coastal regions where wind load and humidity are high, ensuring stable long-term performance.

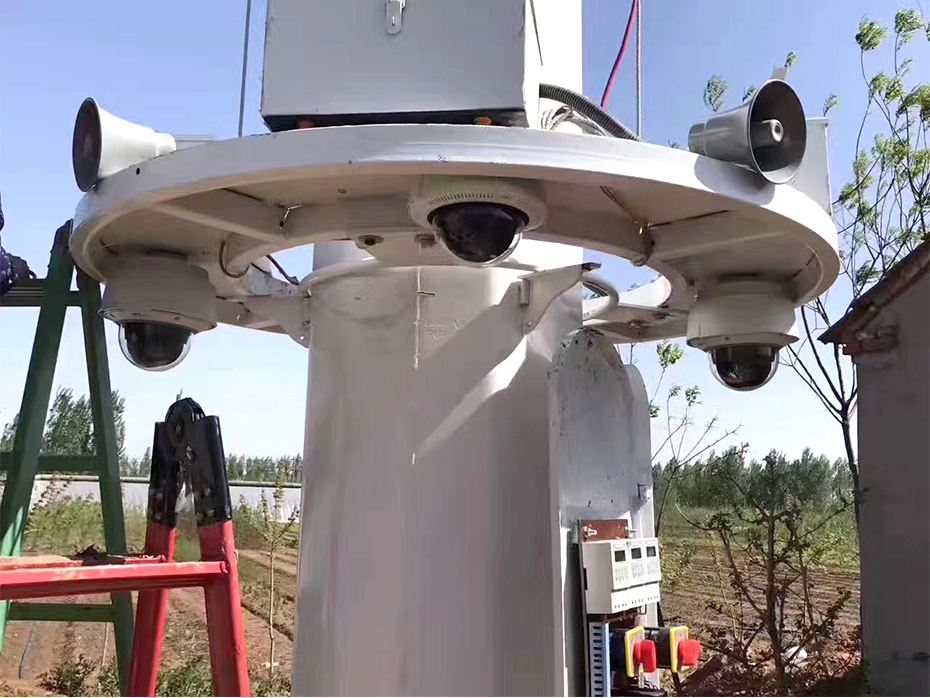

6. How is maintenance done for high mast lights? Many high mast systems are equipped with a lowering device system, which allows the entire lighting ring to be brought down to ground level. This makes maintenance safer, faster, and avoids the need for high-altitude work.
7. What factors should be considered before installing high mast lighting? Key factors include pole height, lighting coverage area, wind load, foundation strength, and required illumination level. A proper lighting design is essential to ensure uniform brightness and avoid shadow or glare issues.
8. Can high mast lighting be customized for different projects? Yes. High mast lighting systems can be customized in terms of pole height, number of floodlights, wattage, beam angle, and control system. This allows them to match different application needs such as highways, ports, or stadiums. |
