Separated Solar Street Light |
|

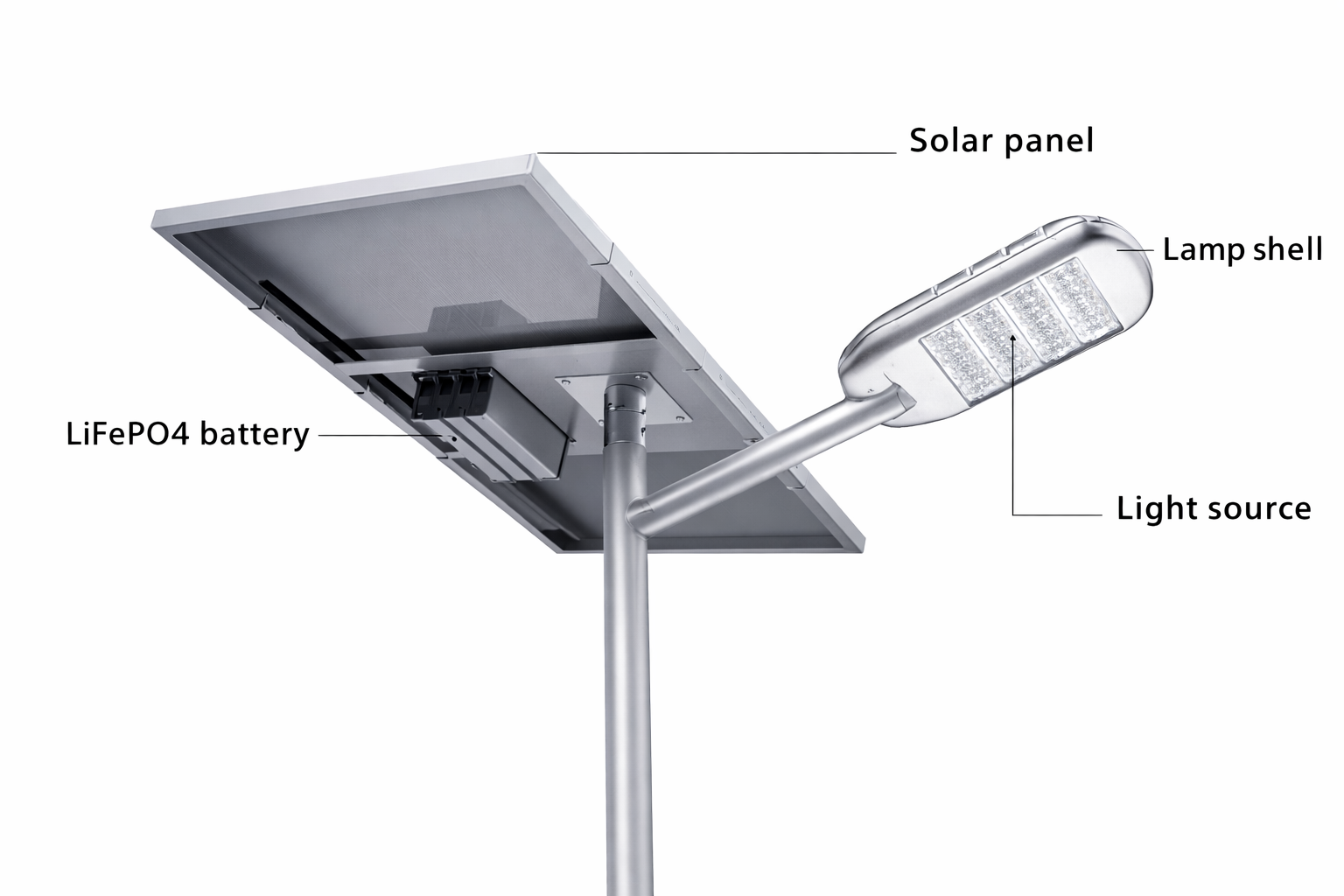

Split Solar Street Lights from China Factory
|
|
|

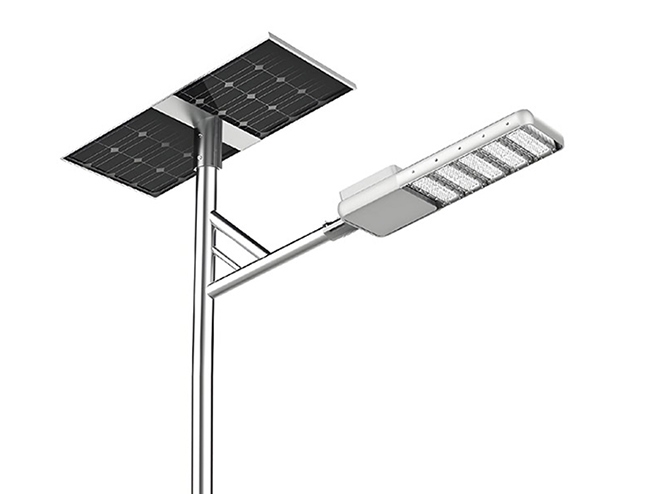

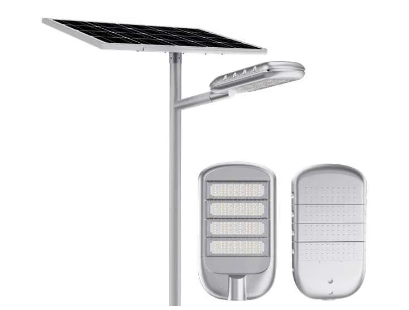

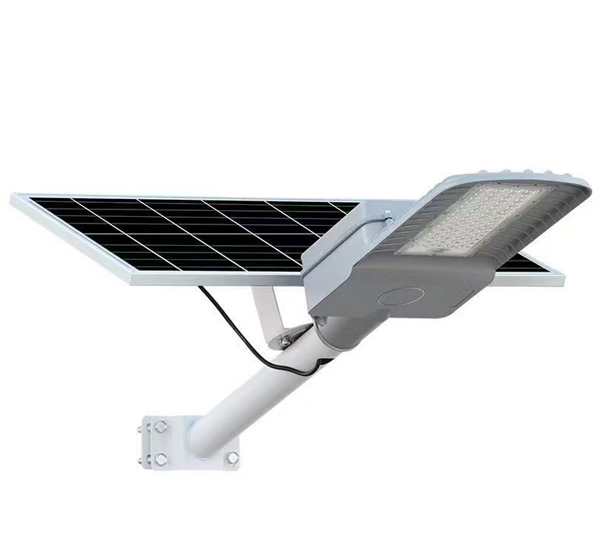

● All in two design, adjustable solar panel angle. ● Bridgelux LED chip reaches 180lm/w system efficiency. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● Flexible 6 working mode with remote controller. ● Intelligent power control support upto 5~7 rainy days. ● 15w to 40w power, 2500~7200lm. | ● Low budget for projects which don’t need so much light. ● Easy to transport, install and maintain all in two structure. ● High quality LiFePO4 battery with 2,000 cycles and 2 years warranty. ● Flexible 6 working mode with remote controller. ● Intelligent power control support upto 5~7 rainy days. ● Two models: 8w 1200lm and 12w 1800lm. | ● Easy to transport, install and maintain all in two structure. ● Rich options from 15w to 80w with up to 12800lm. ● Bridgelux LED chip reaches 160lm/w system efficiency. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● Flexible 6 working mode with remote controller. ● Intelligent power control support upto 5~7 rainy days. |
|
|
|

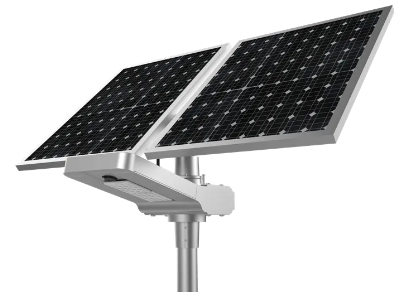

● All in two design, adjustable solar panel angle. ● Bridgelux LED chip reaches 180lm/w system efficiency. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● Flexible 6 working mode with remote controller. ● Intelligent power control support upto 5~7 rainy days. ● 30w to 80w power, 5400~13000lm. | ● All in two design, solar panel angle adjustable vertically and horizontally. ● Microwave Motion Sensor, more intelligent and energy-saving. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● Flexible 6 working mode with remote controller. ● Intelligent power control support upto 5~7 rainy days. ● 30w to 70w power, 4500~10500lm, Bridgelux LED. | ● MPPT charge controller increase the energy utilization rate by 20% than the PWM controller. ● The most powerful solar street light up to 160w with 28,800lm. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● Flexible 6 working mode with remote controller. ● Intelligent power control support upto 5~7 rainy days. ● Multiple advanced technologies are adopted to increase the durability. |
|
|
|

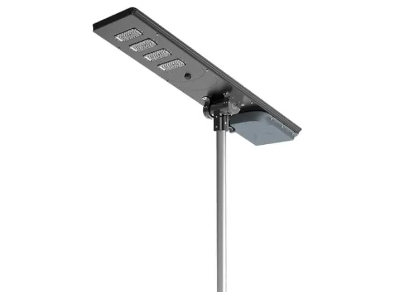

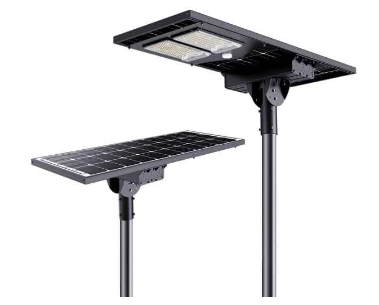

● All in one design, panel angle adjustable. Easier transport and install. ● Modular design, battery can be replaced easily in case of failure. ● Built-in motion sensor, brightness will change along with movement. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● Flexible 6 working mode with remote controller. ● 20w to 100w power, 2,600~13000lm. | ● Hollow body design improve heat dissipation, extend lifespan. ● All in one design, double side solar panel, 20% faster charge. ● Modular design, battery can be replaced easily in case of failure. ● Built-in motion sensor, brightness will change along with movement. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● 60w to 100w power, 7,800~13000lm. | ● All in one design, double side solar panel, 20% faster charge. ● Modular design, battery can be replaced easily in case of failure. ● Multiple advanced technologies are adopted to increase the durability. ● Optional Microwave motion sensor and IoT module, smarter light. ● High quality LiFePO4 battery with 2,000 cycles and 3 years warranty. ● 65w to 100w power, 10,400~16,000lm. |

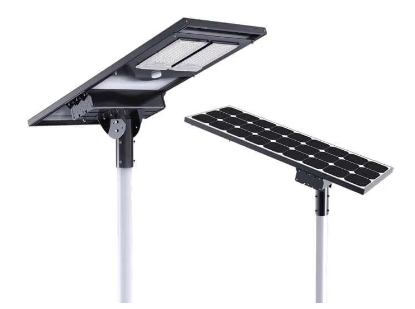

Unique Integration Design
Integrated the solar panel, LED light fixture, battery, and controller into one whole system, easy to transport, install and maintain.
Meanwhile, keep the flexibility of solar panel angle, so users can adjust the solar panel for best performance.
Unique Integration Design
Demo mode: For test use, light ‘ON’ for 1 minute;
OFF mode: No work;
Default L mode for night: 100% brightness for 1st hour, 70% brightness for another 3hrs and 20% brightness to dawn;
T mode for night: 100% brightness for 1st 5hrs, 50% brightness to dawn;
M mode for night: 50% brightness for 1st hour, 100% for another 3hrs and 20% to dawn;
U mode for night: 100% for 1st hour, 60% for another 2hrs. Then sensor starts working, 60% brightness for movement, 20% brightness for stand-by.

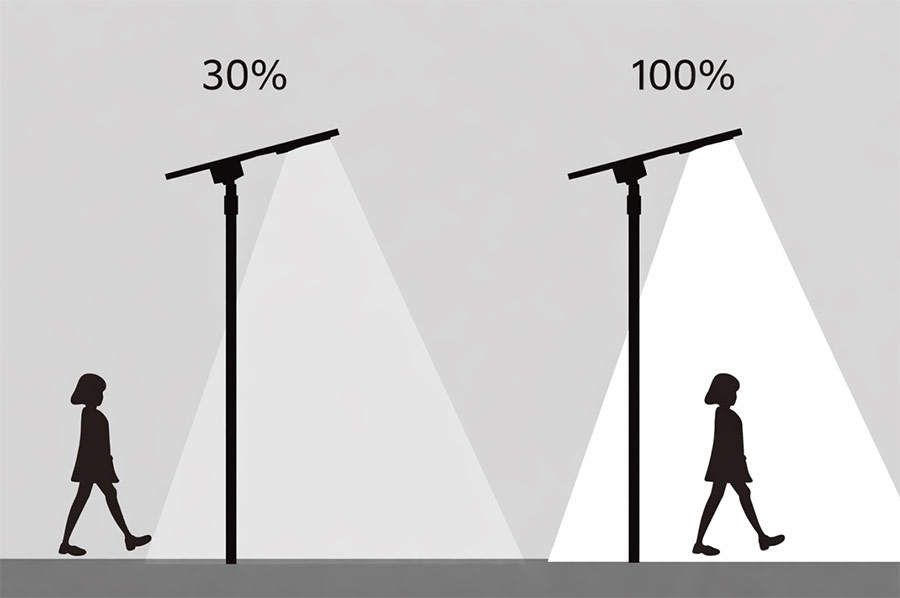

Microwave Motion Sensor
The third-generation sensor technology – microwave motion sensor with patent certificate.
Auto-adjust light luminance according to ambient movement, save more energy,
then the battery can last more days when cloudy and rainy.

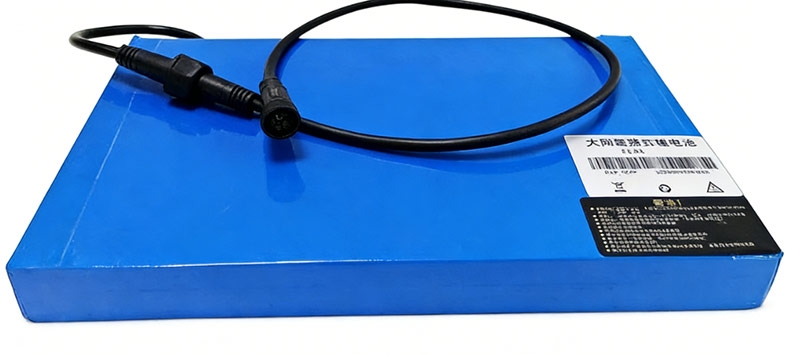

2000 Cycles LiFePO4 Battery
solar street lights are powered by LiFePO4 battery with min 2000 times life cycles, DOD 80%.
Which means 8 years lifespan on average.
The charge and discharge is managed by both hardware and software.
It’s a maintenance-free system.

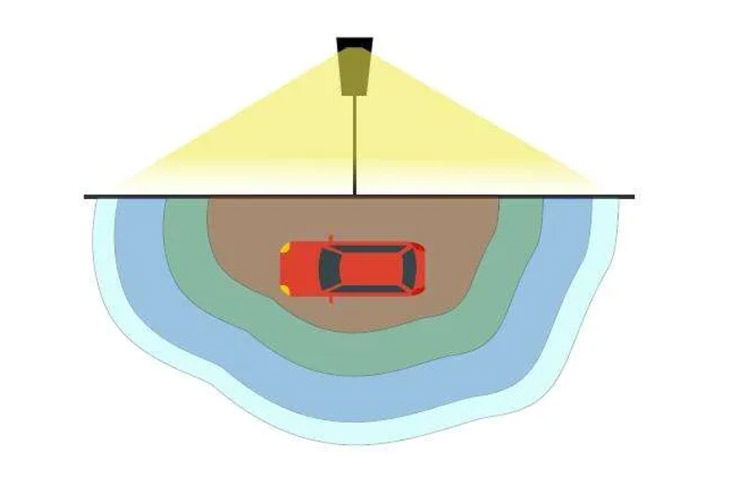

Bat-wing Lens
bat-wing lens leverage the maximum usage of lumens from solar street light.
The professional light distribution can cover a wider area along the road.
Reducing the light waste and increase the installation interval between lights (up to 50m),
then save the number of light.
Projects by Solar Street Lights
Solar Street Light is widely used in outdoor spaces requiring independent and efficient lighting,
providing reliable illumination for various scenarios without wiring
| Solar LED Street Light for High-Speed Highways Highways need to be bright—very bright. Our Solar LED Street Light is built to cover wide, multi-lane roads so drivers can see everything clearly at high speeds. We make sure there’s no flickering and the light spreads far, so you don't need to install a pole every few meters. It's about making the road safe and keeping the installation simple. |

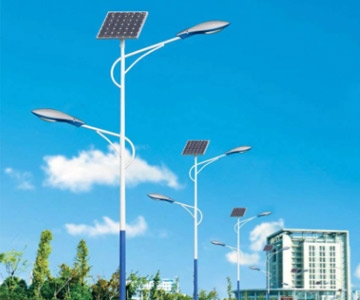

 | Solar Powered Street Lights for City Streets City roads have a lot of shadows from buildings and trees. Our Solar LED Street Light is designed to fill those dark spots. They are smart, too—they can dim down when the streets are empty at 3 AM to save battery, but they’ll stay bright enough to keep pedestrians safe and cameras clear. |

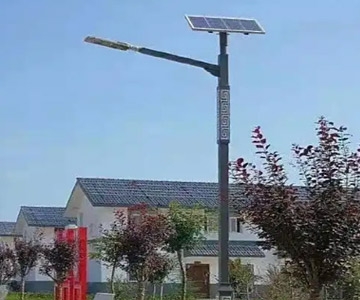

 | Solar Street Lights for Residential Areas In neighborhoods, you want light on the sidewalk, not shining through someone’s bedroom window. We use special covers on our Solar LED Street Light to point the light exactly where people walk. Plus, the batteries are hidden and locked tight to prevent any theft or tampering in the community. |

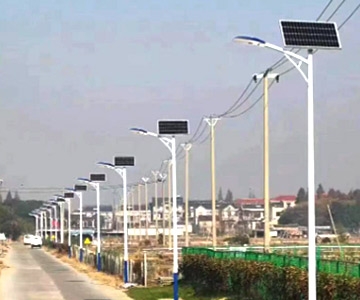

 | Solar Street Lamp for Rural Roads In the countryside, digging trenches for cables is a nightmare and way too expensive. Our rural Solar LED Street Light is "set it and forget it." No wires needed. Even if it rains for a whole week, these lights stay on. It’s the easiest way to bring safety to a village without a massive electricity bill. |

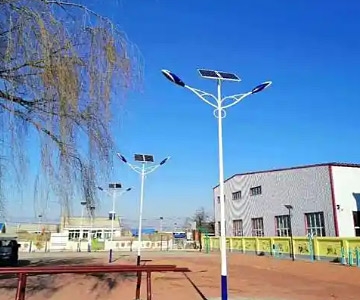

 | Solar LED Street Light for Schools For schools, it’s all about security. Our Solar LED Street Light provides a crisp, clear white light that makes security footage look like it was taken in daylight. They are easy to mount on existing poles, so you can upgrade the whole campus over a weekend without a huge construction crew. |

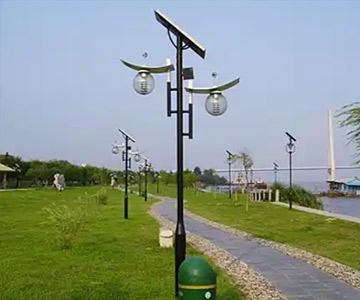

 | Solar Powered Lights for Garden Parks need to feel welcoming. Our Solar LED Street Light gives off a comfortable light that makes people feel safe for an evening stroll. We use tough materials that can take a hit from a ball or a bit of rough handling, and they’ll still turn on every single night at sunset. |

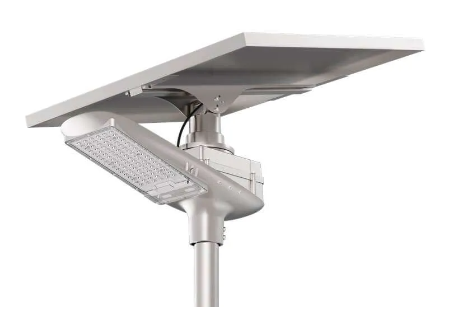

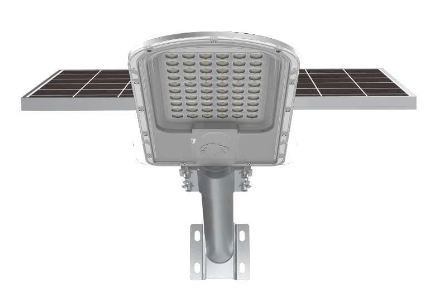

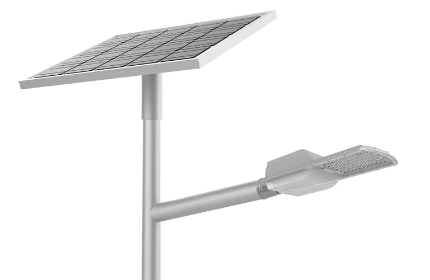

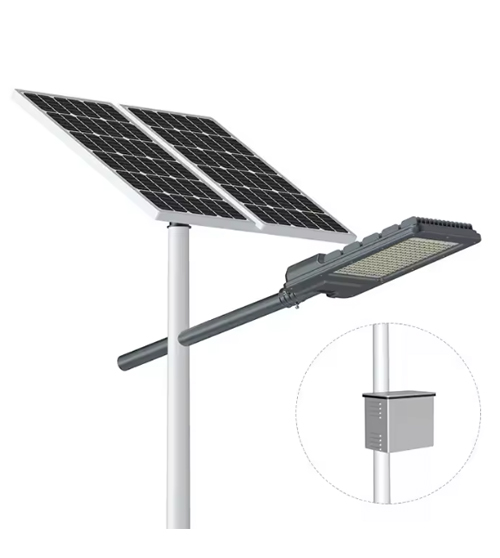

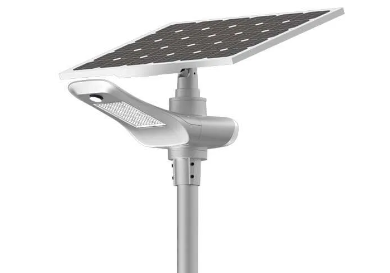

Professional Split Solar Street Light Solutions
Designed for heavy-duty infrastructure and high-latitude regions, the Split Solar Street Light series bypasses the physical limits of integrated models. By separating the energy harvest and storage modules, we provide high-wattage solutions (up to 300W) that ensure stable illumination where standard lights fail. Core Data-Driven Advantages: 22.5% Conversion Efficiency: We utilize Grade-A Monocrystalline panels with a surface area 2.5x larger than all-in-one models, generating 750Wh+ daily power from just 5 hours of sunlight. 10-Year Battery Life: Equipped with LiFePO4 (EV-grade) cells, our systems support 2,500+ deep cycles at 80% DOD, reducing Total Cost of Ownership (TCO) by 40%. 180lm/W System Efficacy: Powered by Bridgelux/Lumileds LEDs and MPPT controllers, our lights boost charging speed by 30% in overcast weather, maintaining 5+ nights of continuous autonomy. Thermal Isolation: Separating the battery from the LED heat engine ensures reliable operation from -20°C to +65°C, backed by an IP66/IK08 industrial rating. Jieyao Factory Capability: With 8 years of expertise and a 10,000㎡ facility, Jieyao Lighting delivers 50,000 units annually. Having completed 1,200+ global projects, we subject every Split Solar Street Light to a 48-hour aging test, providing a solid 3 to 5-year warranty for government and commercial tenders.Contact us for customized service. |
PRODUCT PRODUCTION WORKSHOP
Direct Manufacturer Advantage: Partnering with Jieyao means working directly with our Yangzhou-based factory, not a middleman.
We operate full in-house production lines for poles, LED luminaires, and solar systems.
Our facility features CNC cutting, automatic welding, hot-dip galvanizing, and photometric testing labs.
This vertical integration ensures structural integrity, high corrosion resistance, and stable lead times for high-volume infrastructure projects.
|
|
|
(Battery Assembly Workshop)Our facility for building high-capacity lithium battery packs to ensure long-term energy storage. | (Solar Panel Assembly Workshop)Where we manufacture high-efficiency silicon panels to maximize solar energy harvesting. | (Luminaire Assembly Workshop)The final production line where we integrate all components into a rugged aluminum housing. |
|
|
|
(LED Light Source Assembly Workshop)A precision environment dedicated to mounting high-lumen LED chips for optimal light distribution. | (Electrostatic Spraying Equipment) : Utilizes advanced electrostatic technology to apply weather-resistant polymer coatings, ensuring superior adhesion and anti-corrosion. | (Welding Workshop) : Specialized station for heavy-duty welding of base flanges, service doors, and structural reinforcements. |
|
|
|
(1000T Plate Rolling Machine): Converts raw steel sheets into high-strength round or octagonal poles with precision geometry. | (Powder Coating WorkshopProcess):Electrostatic Polymer Fusion.This ensures 25+ years of superior anti-corrosion and UV resistance for every pole. | (Pole Straightening Machine):Calibrates each shaft to eliminate deviations, ensuring 100% verticality and architectural precision. |
Certifications
Compliance & Standards: Our products are engineered and tested to meet international safety and performance requirements.
From CE and RoHS for electronic safety to specialized ISO manufacturing standards,
Jieyao Lighting ensures every component—from LED drivers to steel poles—is fully certified for global infrastructure tenders.
|
|
|
GB/T 45001-2020/ISO 45001:2018 | LED lamps CE | GB/T 19001-2016/ISO 9001:2015 |
|
|
|
GB/T 24001-2016/ISO 14001:2015 | CCC Certification | Solar street light CE |
|
|
|
Trademark Registration Certificate | WEEE Certificate | WEEE Certificate |
Yes. We provide specialized batteries for extreme climates, including heating films for cold regions and heat-resistant lithium cells for tropical environments.
To give you a straight answer: Yes, the upfront cost of a Solar LED Street Light is higher than a traditional AC LED light. However, if you look at the "Total Cost of Ownership," solar often wins by a landslide.
We use reinforced cartons and wooden pallets to prevent damage during long-distance transit. For large projects, we recommend FCL (Full Container Load) sea freight to minimize shipping costs.
We offer a 3-5 year full-system warranty. If a quality issue arises, we will ship free replacement parts immediately after verification.
Our solar street lights carry CE, RoHS, IP66, IK10, and ISO 9001 certifications, meeting the standards for government and commercial projects worldwide.
Yes. We can customize power output, battery capacity, logo branding, and even industrial design based on your project requirements.
In dusty or low-rainfall areas, we recommend cleaning every 6 months. Heavy dust accumulation can reduce charging efficiency by over 20%.
This is usually due to battery aging, panels being shaded causing insufficient charge, or incorrect controller settings. We can assist you with remote troubleshooting.
LED Fixture: >50,000 hours; Solar Panel: 25 years; Lithium Battery: 5-8 years; Controller: 5-10 years.
No. It is a self-contained power system that requires no trenching, wiring, or grid connection, significantly reducing installation and labor costs.
The optimal angle depends on your local latitude. Generally, panels should face the equator (South in the Northern Hemisphere) at an angle equal to your latitude plus $5^{\circ}$ to $15^{\circ}$.
We primarily use LiFePO4 (Lithium Iron Phosphate) batteries. Compared to Gel or Lead-acid batteries, LiFePO4 offers a much longer cycle life (over 2000 cycles) and superior high-temperature resistance.
Monocrystalline panels offer higher efficiency (above 20%) and perform better in low light, making them ideal for all-in-one designs. Polycrystalline panels are more budget-friendly for large-scale projects.
Yes. Our systems are engineered with "Autonomy Days," typically supporting 3-5 consecutive days of illumination even in complete absence of direct sunlight.
Our products are designed to illuminate for 10-12 hours per night. With intelligent controllers, we can customize lighting modes, such as full power for the first 4 hours and energy-saving mode thereafter.
